Immagine IMG_SCD300040.jpg

View documentation

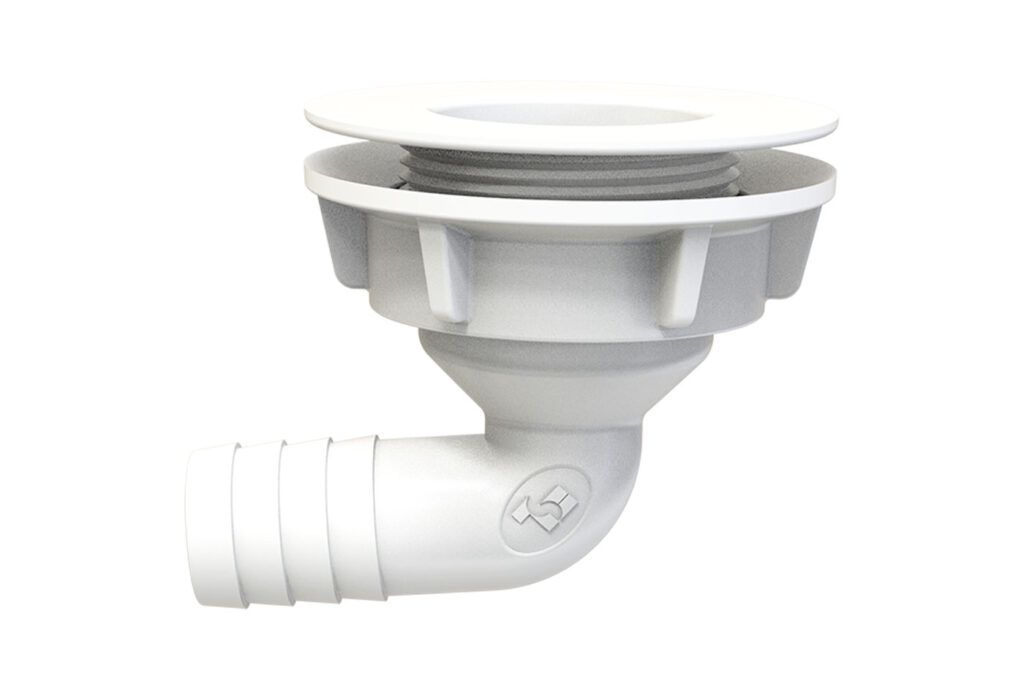

95° angle condensate drain plug with threaded collar connection Ø32

Smart Clima
Air conditioning

Models

Available Models (3)

SCD300040

CONDENSATE DRAIN PIPETTE WITH Ø32 FIXING RING, Ø16 PIPE COUPLING

A [mm]	49
B [mm]	43,4
Ø1 [mm]	50
Ø2 [mm]	32
Ø3 [mm]	16

SCD300041

CONDENSATE DRAIN PIPETTE WITH Ø32 FIXING RING, Ø20 PIPE COUPLING

A [mm]	52,2
B [mm]	50,2
Ø1 [mm]	50
Ø2 [mm]	32
Ø3 [mm]	20

SCD300042

CONDENSATE DRAIN PIPETTE WITH Ø32 FIXING RING, Ø25 PIPE COUPLING

A [mm]	56
B [mm]	57,8
Ø1 [mm]	50
Ø2 [mm]	32
Ø3 [mm]	25

Download

Documentation

Immagine IMG_SCD300040.jpg

Technical Data Sheet

it en fr de
