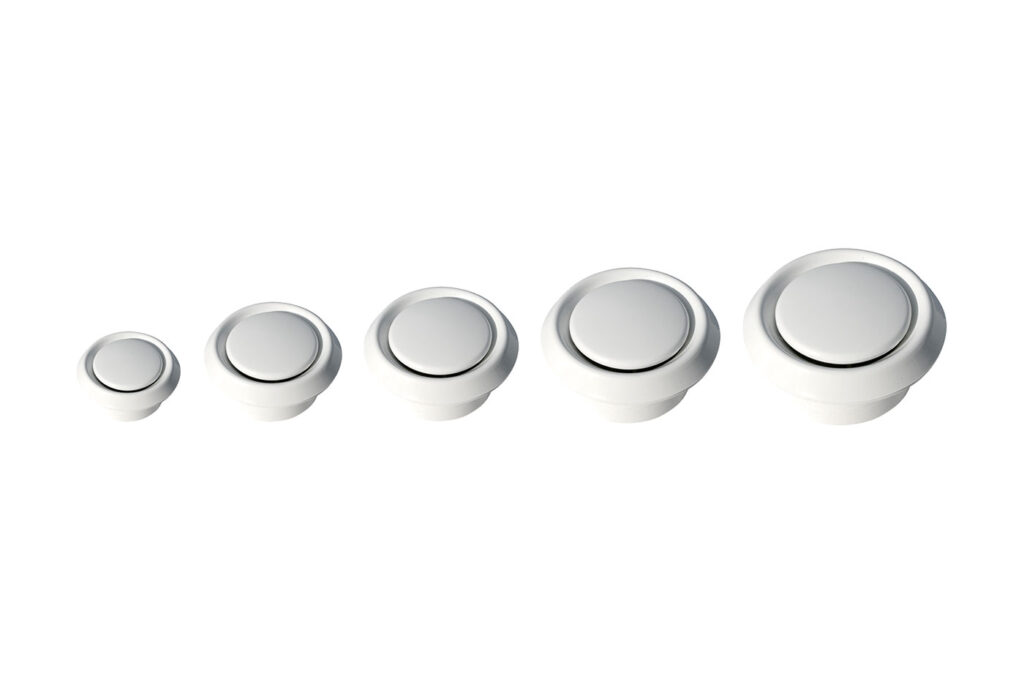

Immagine IMG_11161319.jpg

View documentation

Adjustable ABS plastic air delivery/return ventilation valve white

Project Wind
Air diffusion

Adjustable flow ventilation valves, high resistance to atmospheric agents and acids.
Adjustable central disc and fixing collars.
They are applied to the ceiling for delivery or for air return in service rooms.
Installation height between 2.5 and 3.0 m
The air flow is regulated by rotation of the central cone.

TECHNICAL SPECIFICATIONS:

• Made of white ABS
• Prevents condensation phenomena
• Operating temperature – 40°C to +40°C
• Suitable for delivery and intake
• Fastening by means of hidden screws on mounting collar

Models

Available Models (5)

11161319

ADJUSTABLE VENTILATION VALVES IN ABS PLASTIC, WHITE, FOR AIR EXTRACTION Ø 80mm

Ø A [mm]	130
Ø B [mm]	76
Ø H [mm]	75
FLOW RATE [m³/h]	31

11161320

ADJUSTABLE VENTILATION VALVES IN ABS PLASTIC, WHITE, FOR AIR EXTRACTION Ø 100mm

Ø A [mm]	140
Ø B [mm]	96
Ø H [mm]	75
FLOW RATE [m³/h]	47

11161321

ADJUSTABLE VENTILATION VALVES IN ABS PLASTIC, WHITE, FOR AIR EXTRACTION Ø 125mm

Ø A [mm]	175
Ø B [mm]	120
Ø H [mm]	75
FLOW RATE [m³/h]	72

11161322

ADJUSTABLE VENTILATION VALVES IN ABS PLASTIC, WHITE, FOR AIR EXTRACTION Ø 150mm

Ø A [mm]	200
Ø B [mm]	145
Ø H [mm]	75
FLOW RATE [m³/h]	102

11161323

ADJUSTABLE VENTILATION VALVES IN ABS PLASTIC, WHITE, FOR AIR EXTRACTION Ø 200mm

Ø A [mm]	250
Ø B [mm]	195
Ø H [mm]	75
FLOW RATE [m³/h]	180
