Ballast for vertical panels 10° - 15°
Fv Power

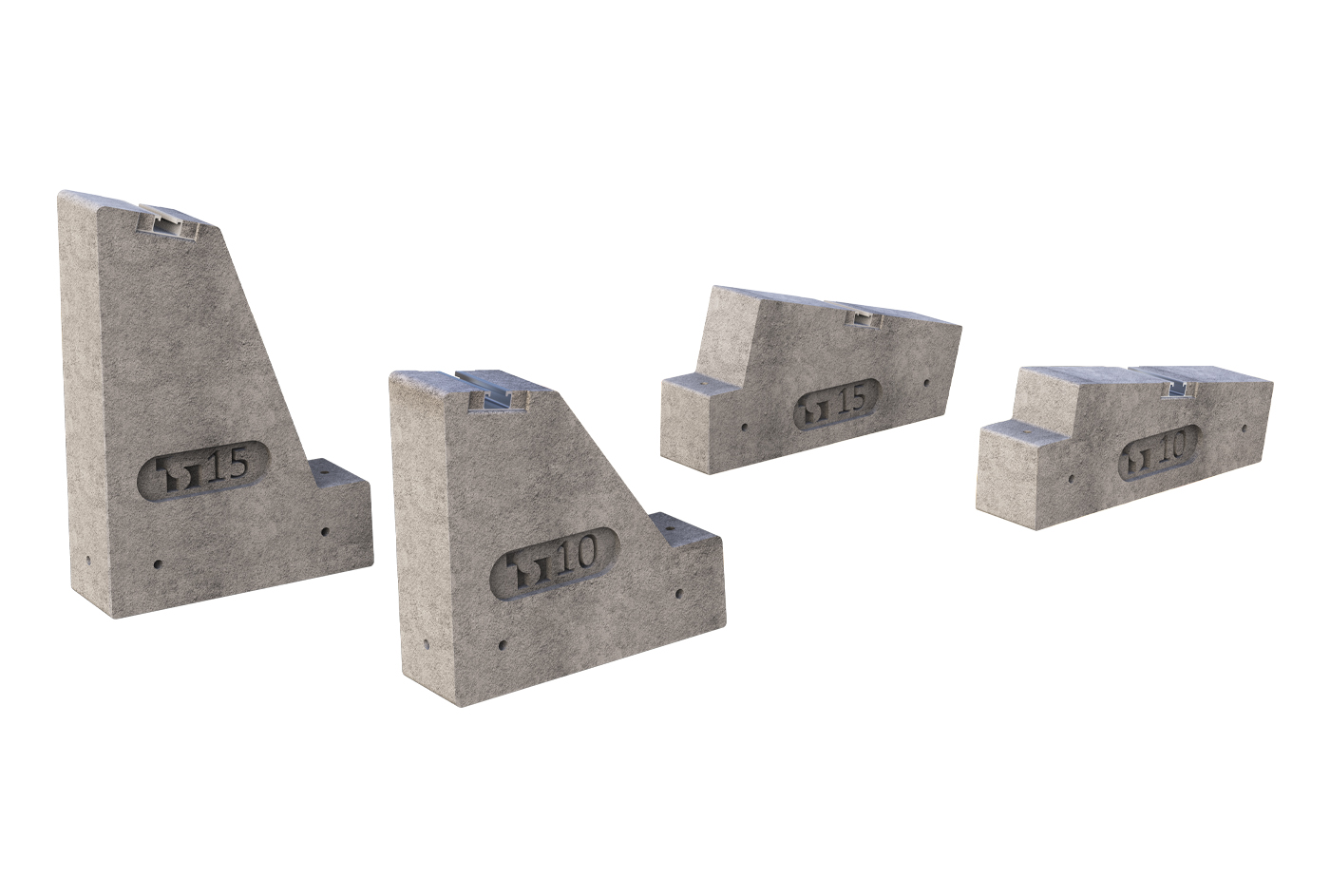

Vibrated and reinforced concrete ballast with integrated FVP 200 aluminium profile.
Ideal for vertically installed photovoltaic and solar thermal panels up to 2.4 m long.
TECHNICAL SPECIFICATIONS:
• Material: vibrated and reinforced cement conglomerate.
• Built-in FVP 200 aluminum profiles.
• Ideal for vertically installed photovoltaic and thermal solar panels.
• Prepared holes for anchoring anchors.
• Maximum panel length 2.4 m.
Models
Available Models (2)
FVD500022
PAIR OF BALLASTS FOR VERTICAL PANELS WITH 10° INCLINATION

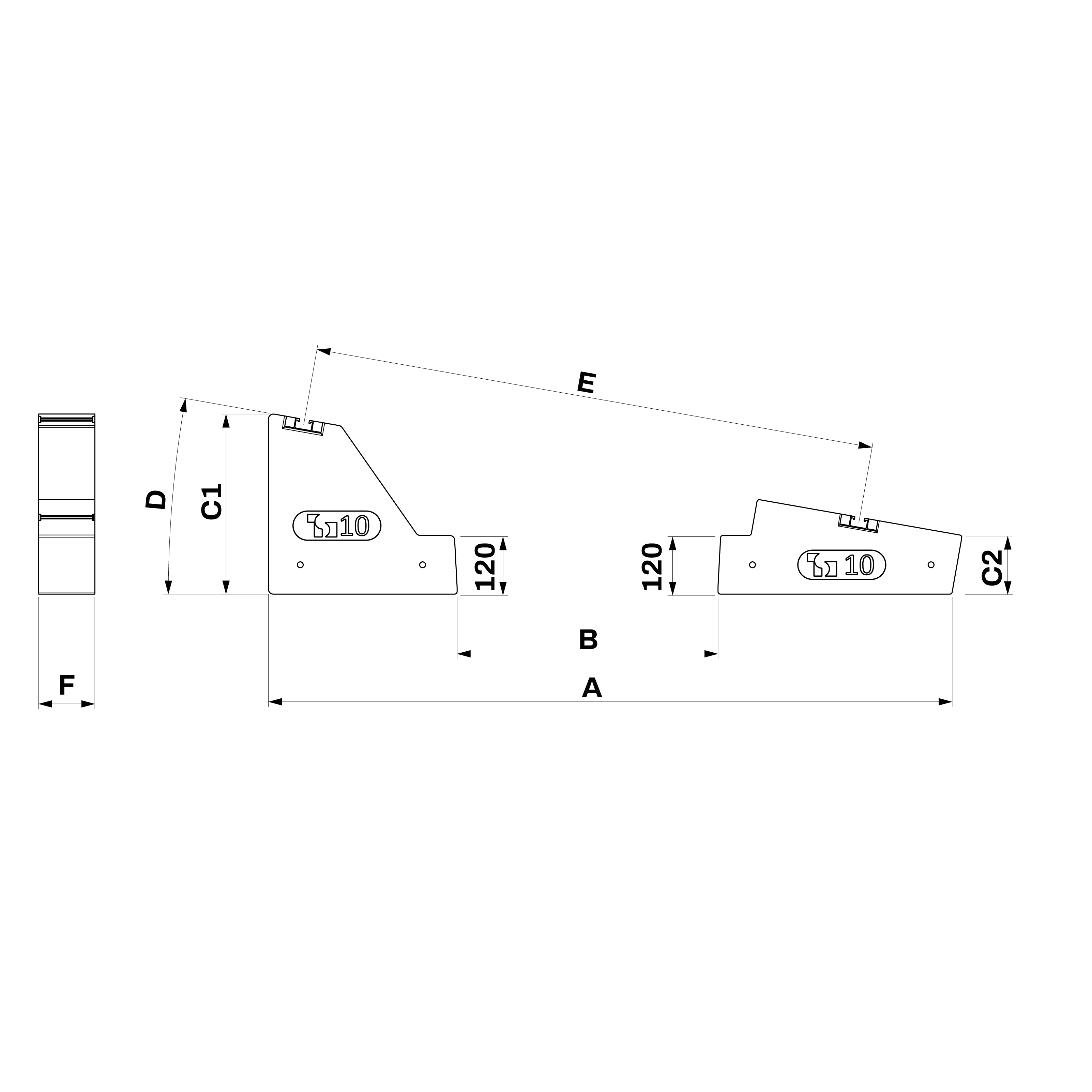

| A [mm] | 1397 |
|---|---|
| B [mm] | 533 |
| C1 [mm] | 365 |
| C2 [mm] | 120 |
| D [°] | 10 |
| E [mm] | 1152 |
| F [mm] | 115 |
| WEIGHT [kg] | 45 |
| PANNEL max [mm] | 2400 |
Tailor-made solutions
Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
