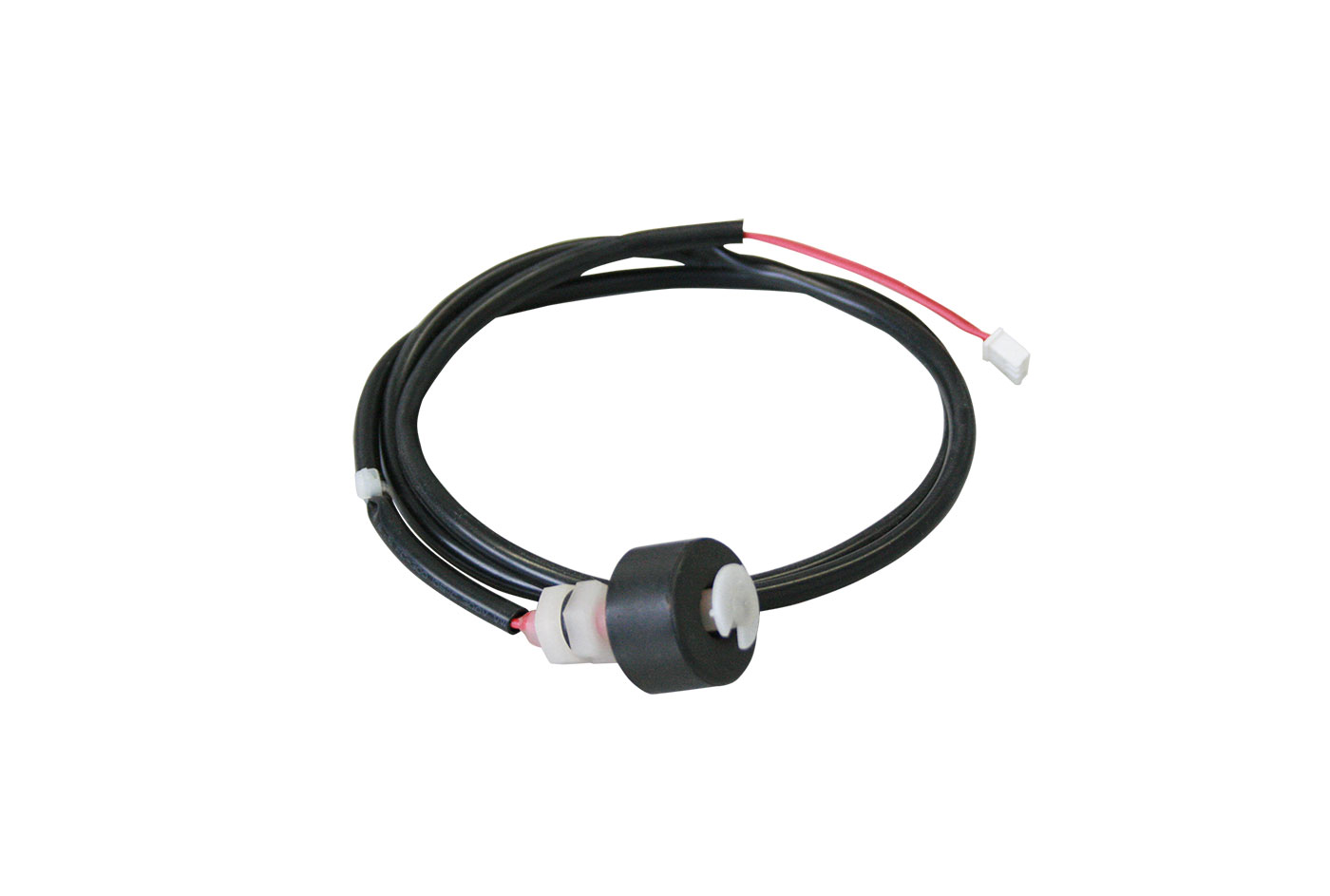

Centrifugal pump float

Smart Clima
Air conditioning

TECHNICAL SPECIFICATIONS:

• Contact NC
• Float stroke 11 mm
• Contact rating 50 VA / 50 W
• Maximum voltage 200 V (DC) 265 V (AC)
• Maximum current 1.0 A (DC) 0.6 A (AC)
• Operating temperature: -10°C to +60°C
• For water fluids (density 1 g/cm³)
• 2-wire cable L 2000 mm
• Float block dimensions Ø 25 mm H 44 mm (cable excluded)
• Closure by nut and locknut with sealing gasket
