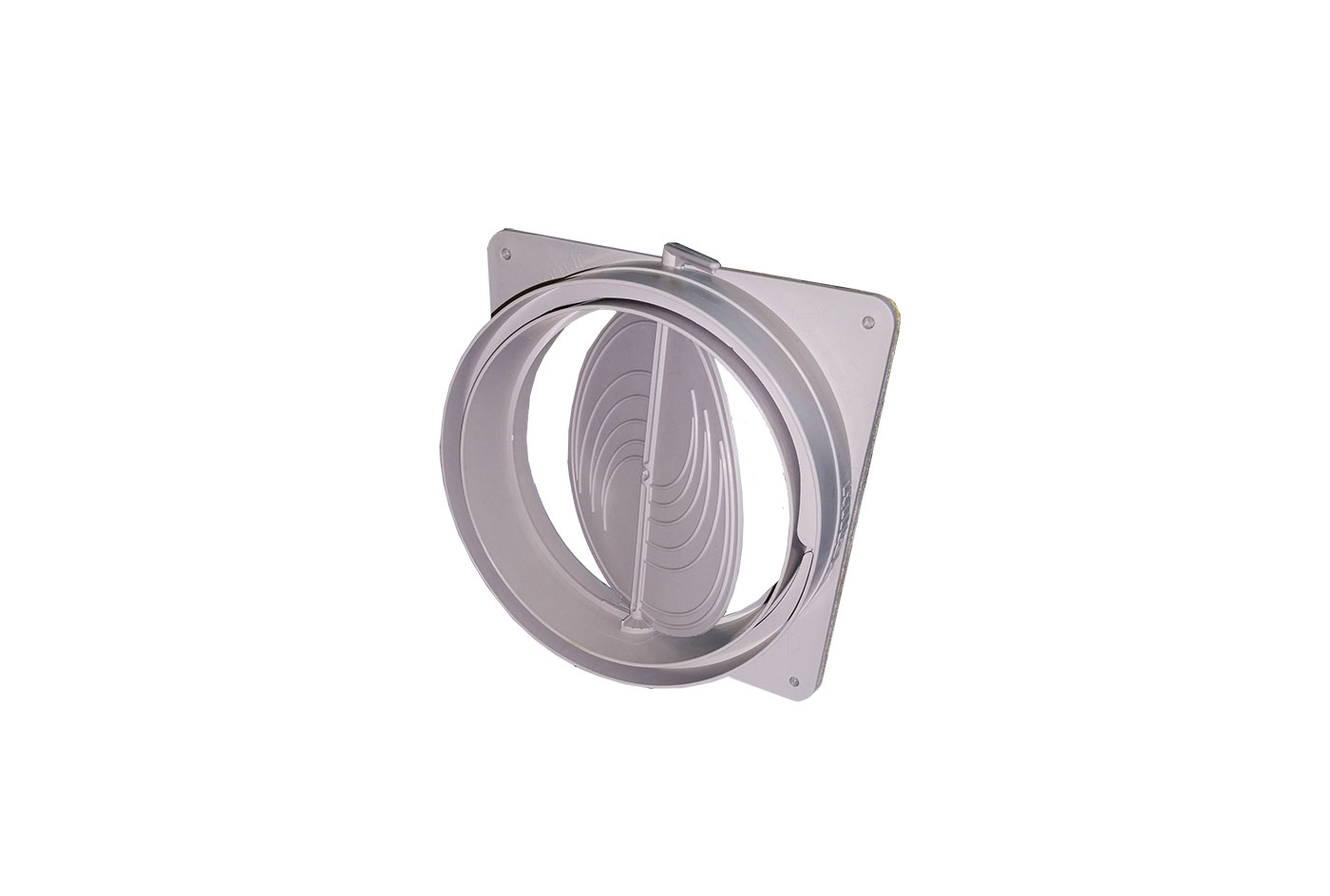

Collar for plenum with built-in damper

Project Wind
Air diffusion

TECHNICAL SPECIFICATIONS:

• Made of PP
• Available from Ø 102 mm to Ø 254 mm
• Operating temperature -30°C to +150°C
• Reaction to fire C-S1,D1

Models

Available Models (6)

11156001

FLEXIBLE PIPE CONNECTION WITH DAMPER Ø 102

Ø [mm]	102
Ød [mm]	90
ØD1 [mm]	114
ØD2 [mm]	93
L [mm]	117
A [mm]	52,5

11156002

FLEXIBLE PIPE CONNECTION WITH DAMPER Ø 127

Ø [mm]	127
Ød [mm]	115
ØD1 [mm]	137
ØD2 [mm]	118
L [mm]	142
A [mm]	47,5

11156003

FLEXIBLE PIPE CONNECTION WITH DAMPER Ø 152

Ø [mm]	152
Ød [mm]	140
ØD1 [mm]	162
ØD2 [mm]	143
L [mm]	168
A [mm]	47,5

11156004

FLEXIBLE PIPE CONNECTION WITH DAMPER Ø 160

Ø [mm]	160
Ød [mm]	148
ØD1 [mm]	170
ØD2 [mm]	151
L [mm]	177
A [mm]	47,5

11156005

FLEXIBLE PIPE CONNECTION WITH DAMPER Ø 203

Ø [mm]	203
Ød [mm]	191
ØD1 [mm]	213
ØD2 [mm]	194
L [mm]	220
A [mm]	47,5

11156006

FLEXIBLE PIPE CONNECTION WITH DAMPER Ø 254

Ø [mm]	254
Ød [mm]	242
ØD1 [mm]	264
ØD2 [mm]	245
L [mm]	272
A [mm]	47,5
