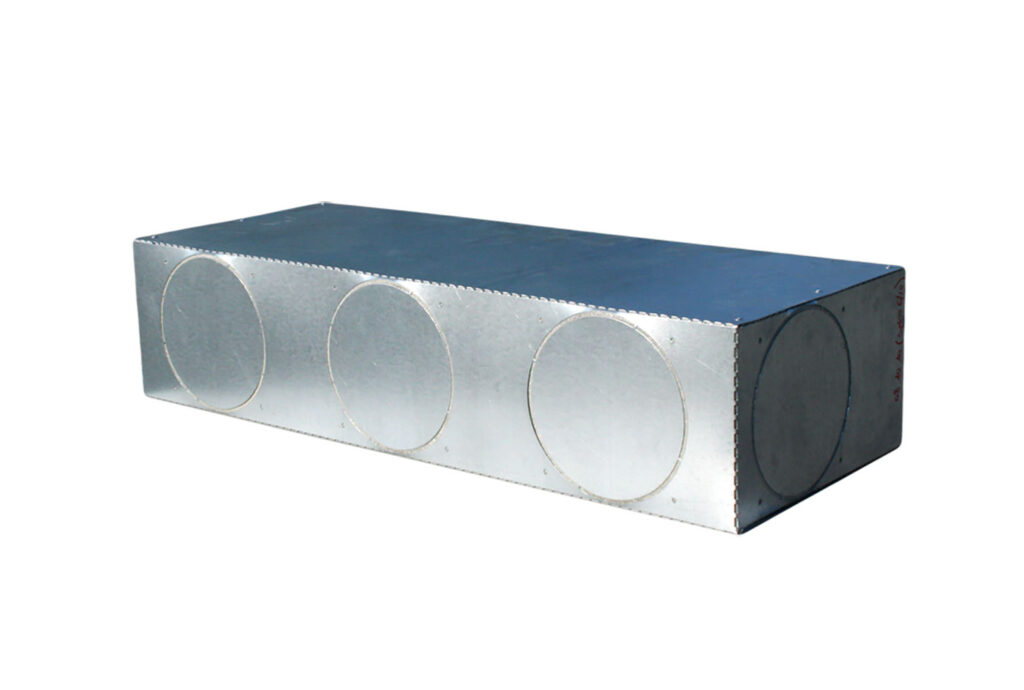

Custom insulated plenum for electro-galvanised metal sheet ducted units
Project Wind- Air diffusion
The custom-made plenum in 8 mm insulated electro-galvanised metal sheet is ideal for any type of installation thanks to its small external dimensions.
Plastic fronts Ø 150 / 200/250 / 300 are available (optional)
Two additional attachments are also available on the sides.
These plenums can be custom tailored to any size.
TECHNICAL SPECIFICATIONS:
• Made of 0.6 mm thick electro-galvanized sheet steel.
• Internal insulation made of 8 mm thick cross-linked polyethylene, with smooth aluminium facing.
• Ø 150 / 200 mm pre-drilled side collars
• Ready for side bypass
• Depth 250 mm
Tailor-made solutions
Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
