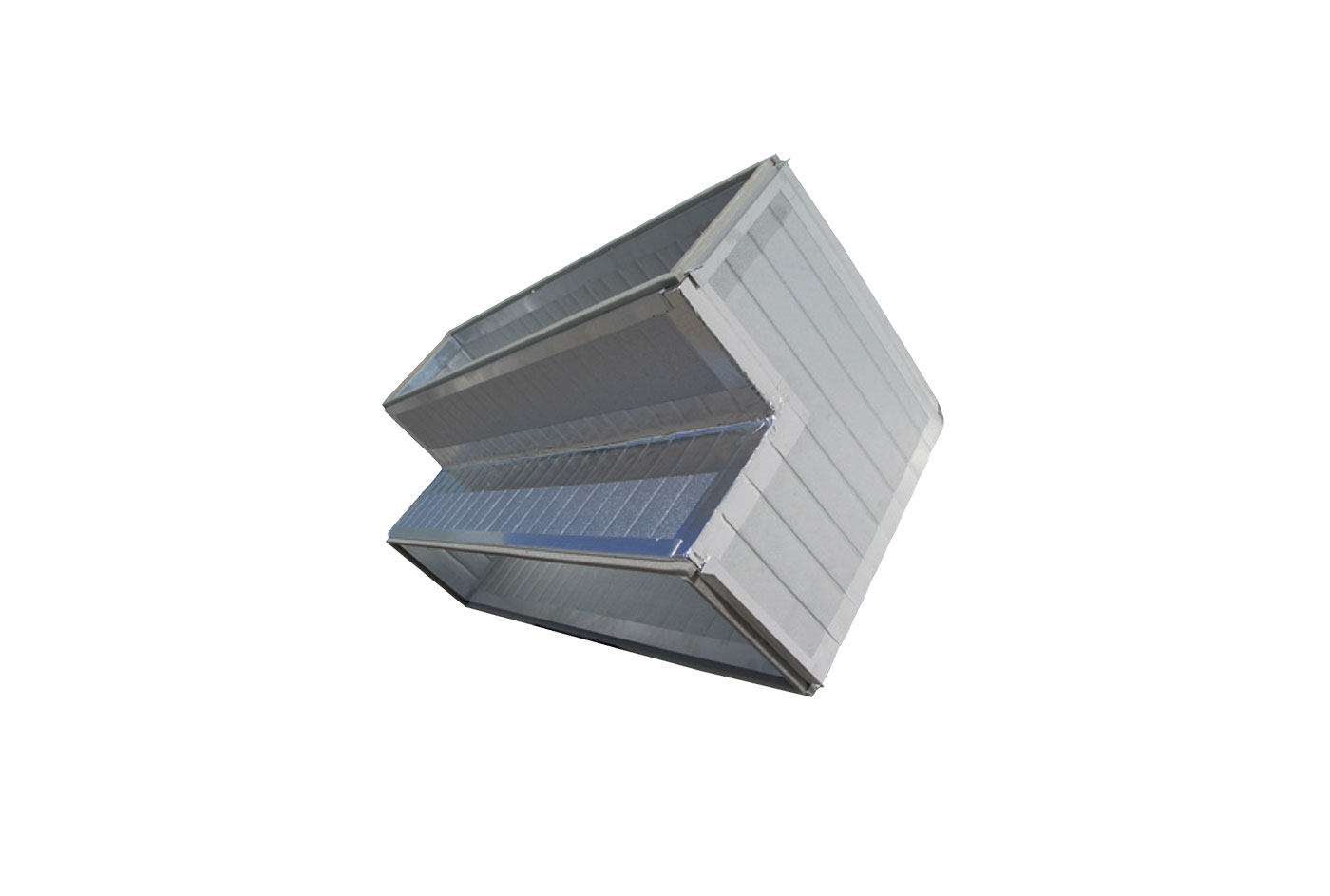

Custom-made return plenum in aluminised PAL for duct systems

Project Wind
Air diffusion

TECHNICAL SPECIFICATIONS:

• Made of high quality 80 µ aluminium foil, embossed and lacquered, insulated with stiff expanded polyisocyanurate (PIR) foam
• Overall thickness 20 mm, fire-retardant, highly heat-insulating, waterproof
• Includes fastening flange
• Reaction to fire class: B-s3,d0

Models

Available Models (4)

11161602

PLÉNUM BOX FOR DUCTED SYSTEMS MOD. 4

MODEL	mod. 4
INTERNAL HEIGHT a1 [mm]	150
INTERNAL HEIGHT a2 [mm]	150
INTERNAL WIDTH b [mm]	1000
INTERNAL DEPTH c1 [mm]	max 400
BACK INTERNAL HEIGHT c2 [mm]	max 400

11161603

PLÉNUM BOX FOR DUCTED SYSTEMS MOD. 5

MODEL	mod. 5
INTERNAL HEIGHT a1 [mm]	200
INTERNAL HEIGHT a2 [mm]	200
INTERNAL WIDTH b [mm]	1200
INTERNAL DEPTH c1 [mm]	max 400
BACK INTERNAL HEIGHT c2 [mm]	max 400

11161604

PLÉNUM BOX FOR DUCTED SYSTEMS MOD. 6

MODEL	mod. 6
INTERNAL HEIGHT a1 [mm]	250
INTERNAL HEIGHT a2 [mm]	250
INTERNAL WIDTH b [mm]	1500
INTERNAL DEPTH c1 [mm]	max 400
BACK INTERNAL HEIGHT c2 [mm]	max 400

PWD400112

“PAL” CUSTOM-SIZED RETURN PLENUM BOX FOR DUCTED SYSTEMS MOD. 8

MODEL	mod. 8
INTERNAL HEIGHT a1 [mm]	300
INTERNAL HEIGHT a2 [mm]	300
INTERNAL WIDTH b [mm]	1600
INTERNAL DEPTH c1 [mm]	max 400
BACK INTERNAL HEIGHT c2 [mm]	max 400
