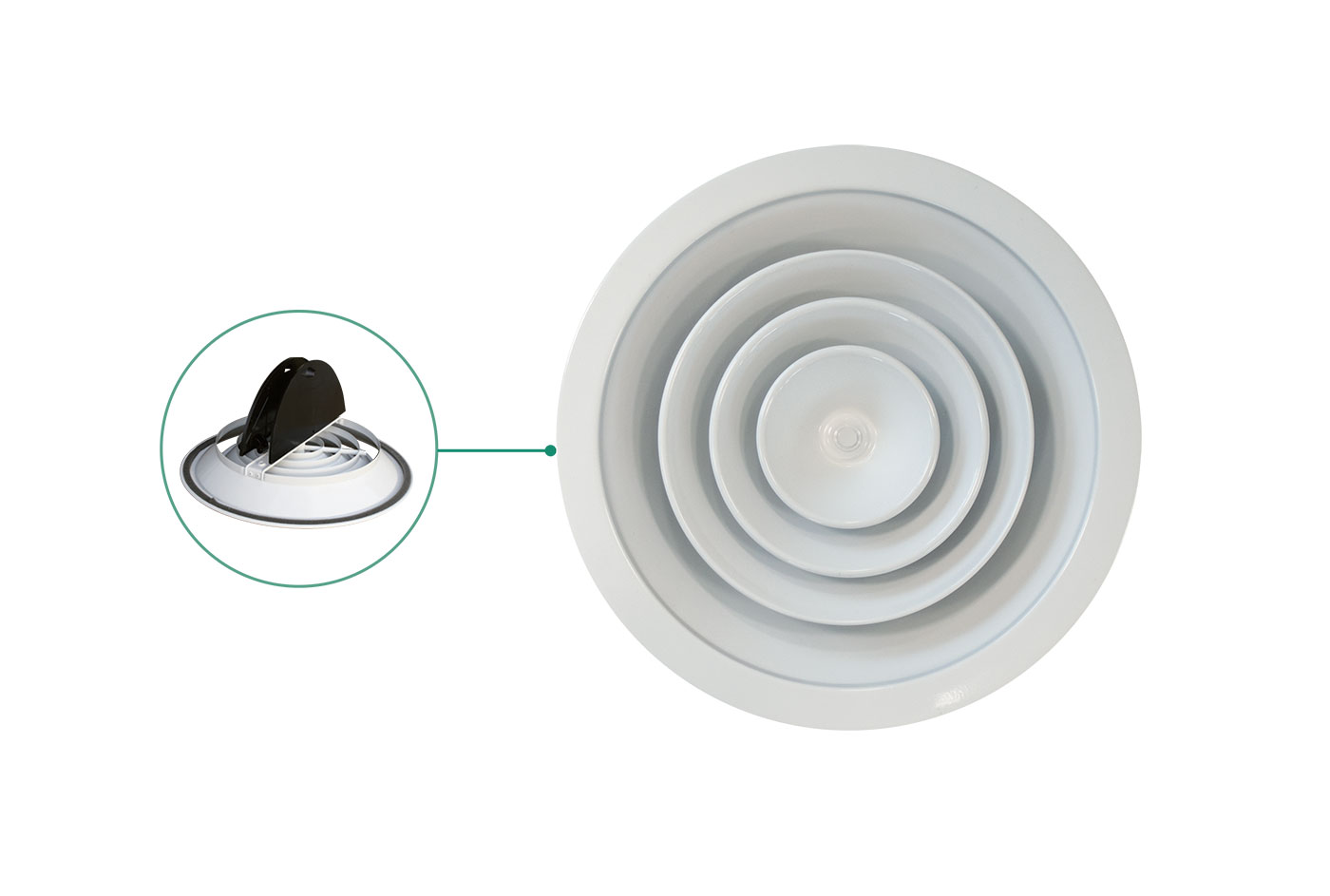

DCA Circular diffuser with fixed cones in white painted aluminium with butterfly shutter and collar
Project Wind- Air diffusion
Circular aluminum air diffusers, painted white, are used for supply and return air.
Thanks to the high induction, they can also be used at considerable temperature differences between the intake air and the environment.
They stand out for their high efficiency, quiet operation and modern design.
TECHNICAL SPECIFICATIONS:
• Made in white painted aluminium
• Equipped with damper and collar
• Fixed cones
Models
Available Models (3)
W11161760
ALUMINIUM VERTICAL CIRCULAR DIFFUSERS WITH BUTTERFLY DAMPER AND WHITE FINISH - EXTERNAL Ø 260mm

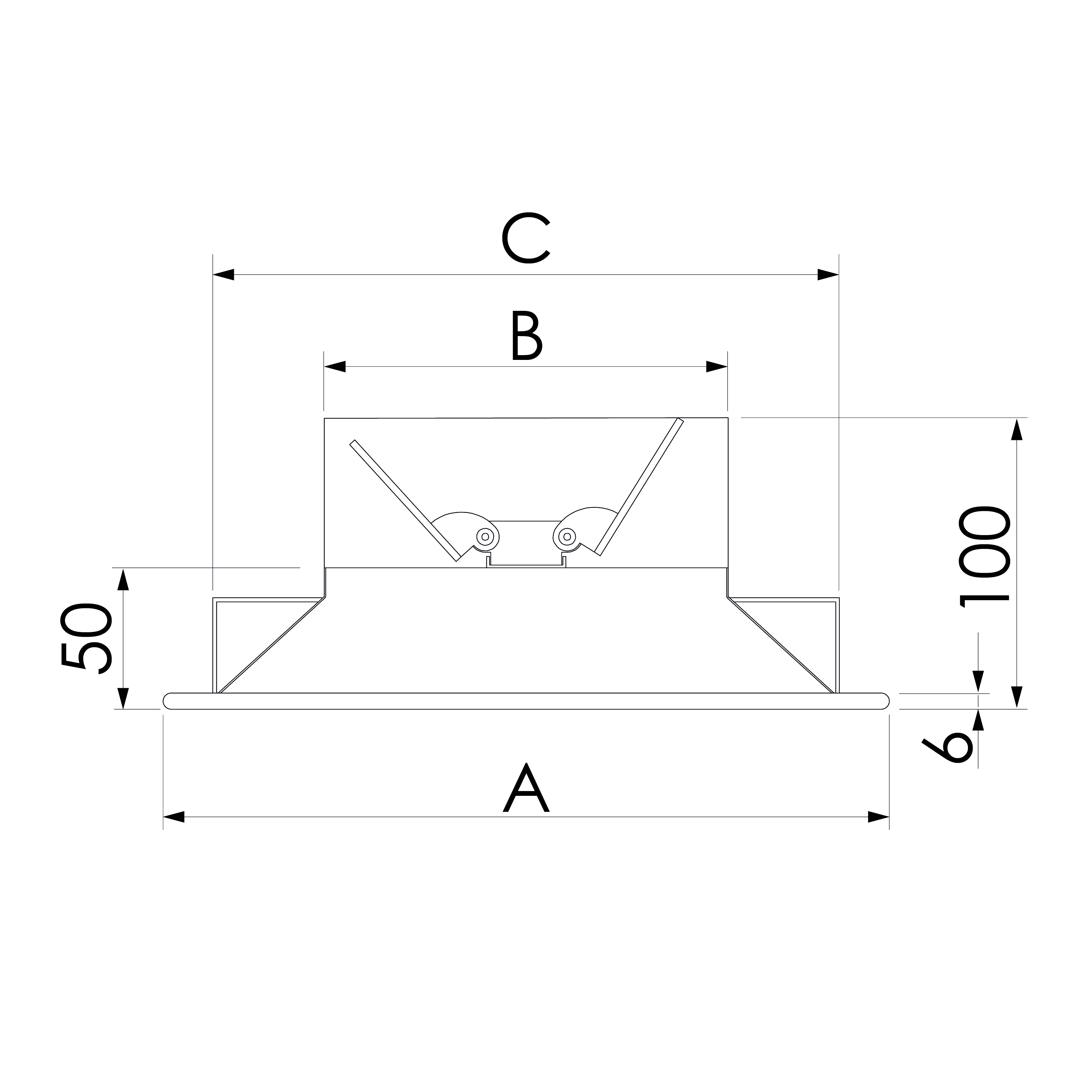

| A [mm] | 260 |
|---|---|
| B [mm] | 150 |
| C [mm] | 220 |
Tailor-made solutions
Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
