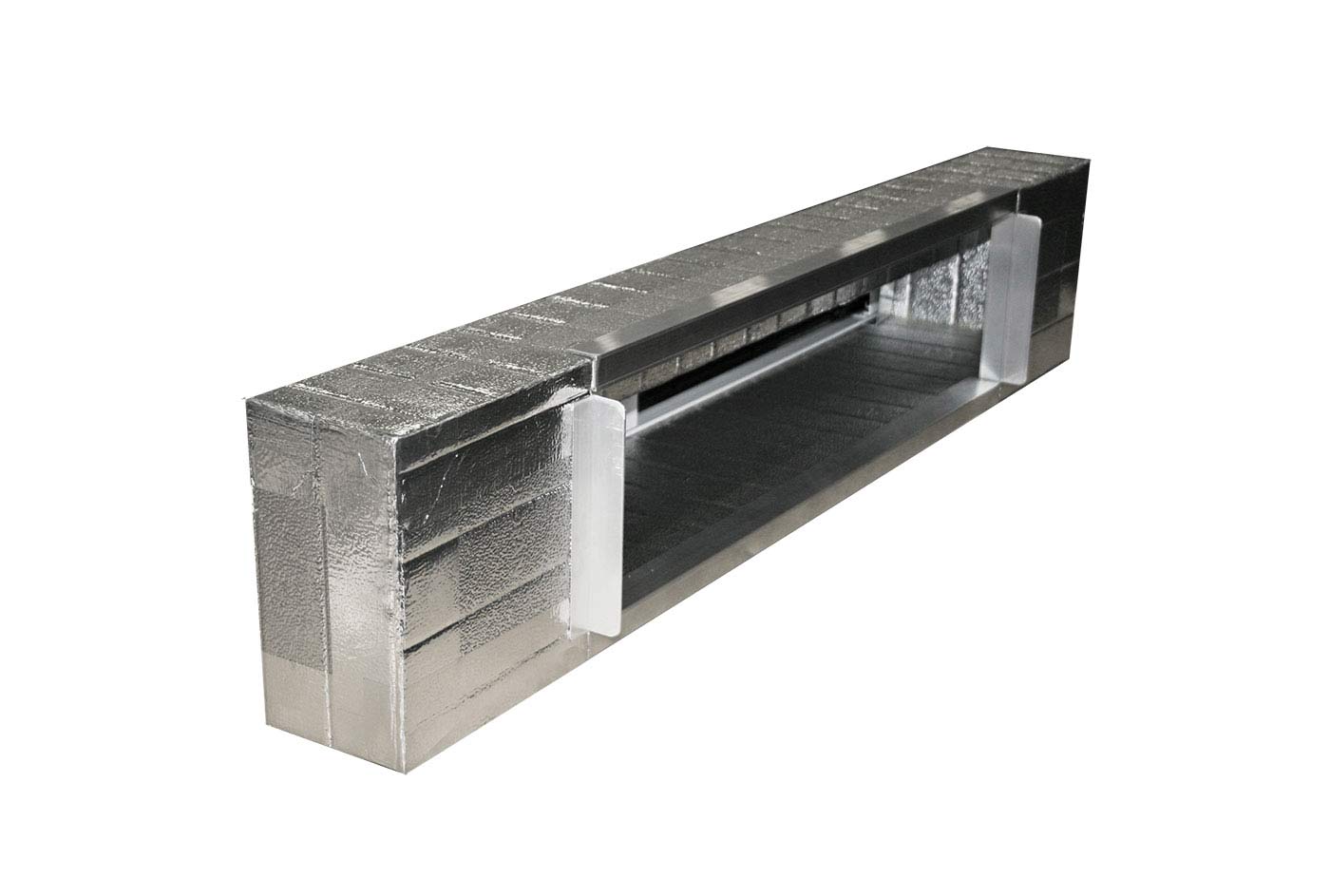

Immagine IMG_PWD400114.jpg

View documentation

Delivery / return plenum with made-to-measure reduced window coupler in aluminate pole for duct systems

Project Wind
Air diffusion

TECHNICAL SPECIFICATIONS:

• Made of high quality 80 µ aluminium foil, embossed and lacquered, insulated with stiff expanded polyisocyanurate (PIR) foam
• Overall thickness 20 mm, fire-retardant, highly heat-insulating, waterproof
• Includes fastening flange
• Reaction to fire class: B-s3,d0

Models

Available Models (4)

11161605F

PLÉNUM WITH REDUCED WINDOW COUPLING FOR PAL ALUMINIUM CUSTOMIZED DUCTS MOD.1/F

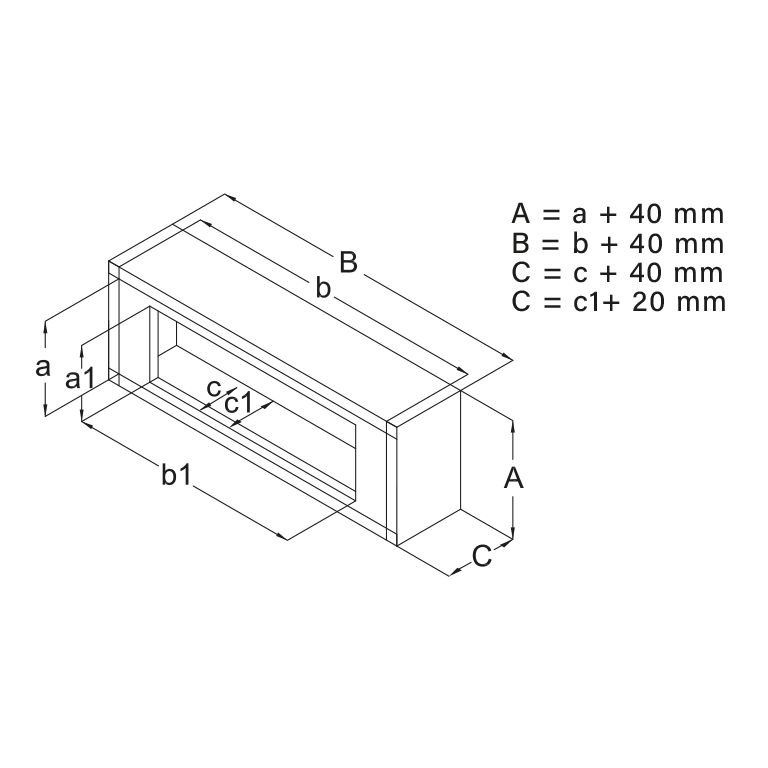

MODEL	mod. 1/F
INTERNAL HEIGHT A [mm]	on request up to 300
INTERNAL WIDTH B [mm]	on request up to 1000
INTERNAL DEPTH c [mm]	260 FIXED

11161606F

PLÉNUM WITH REDUCED WINDOW COUPLING FOR PAL ALUMINIUM CUSTOMIZED DUCTS MOD.2/F

MODEL	mod. 2/F
INTERNAL HEIGHT A [mm]	on request up to 400
INTERNAL WIDTH B [mm]	on request up to 1200
INTERNAL DEPTH c [mm]	260 FIXED

11161607F

PLÉNUM WITH REDUCED WINDOW COUPLING FOR PAL ALUMINIUM CUSTOMIZED DUCTS MOD.3/F

MODEL	mod. 3/F
INTERNAL HEIGHT A [mm]	on request up to 400
INTERNAL WIDTH B [mm]	on request up to 1500
INTERNAL DEPTH c [mm]	260 FIXED

PWD400114

PLÉNUM WITH REDUCED WINDOW COUPLING FOR PAL ALUMINIUM CUSTOMIZED DUCTS MOD.7/F

MODEL	mod. 4/F
INTERNAL HEIGHT A [mm]	on request up to 500
INTERNAL WIDTH B [mm]	on request up to 1700
INTERNAL DEPTH c [mm]	260 FIXED
