DQBP Square diffuser 4-way in white painted aluminium with damper and lowered plenum

Project Wind
Air diffusion

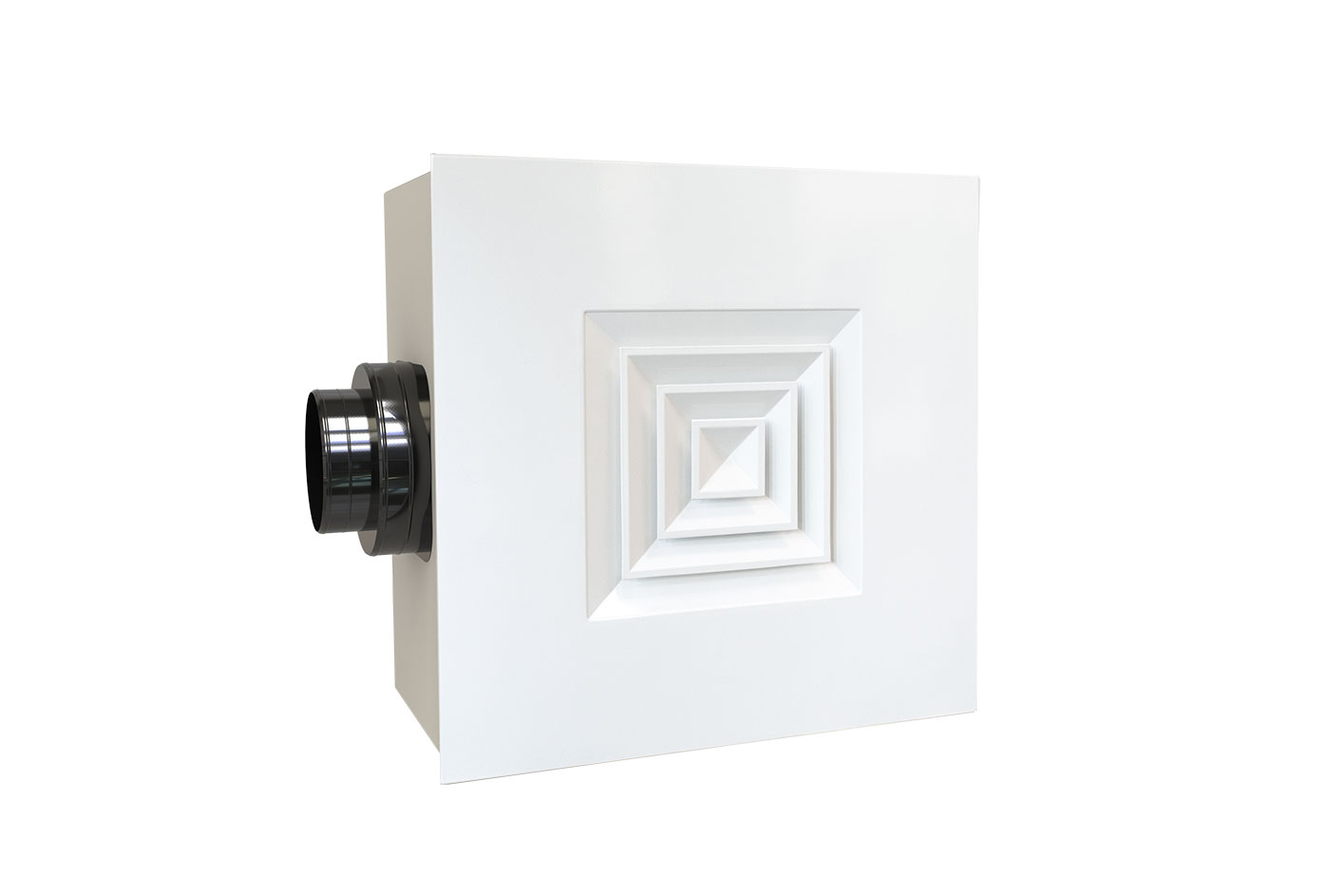

Square 4-way multi-direction diffuser in white painted aluminium.
The diffuser is complete with galvanised steel flap calibration damper with counter movement.
The diffuser is supplied with a galvanised metal sheet lowered plenum with external closed-cell polyethylene coating (3 mm thick).
Diffuser ideal for wall or ceiling installations, in delivery and intake, at a height between 2.5 m and 3.1 m.

TECHNICAL SPECIFICATIONS:

• Diffuser in white painted aluminium
• Plenum box made of galvanised metal sheet
• External plenum coating in closed-cell polyethylene (3 mm thick)
• Suitable for air delivery and intake
• High operating efficiency
• Lowered plenum with damper and hole for ceiling mounting

Models

Available Models (4)

PWD200007

SQUARE DIFFUSER DQBP 595x595 4 WAYS AIR PASSAGE 150x150 IN WHITE PAINTED ALUMINIUM WITH DAMPER AND LOWERED PLENUM

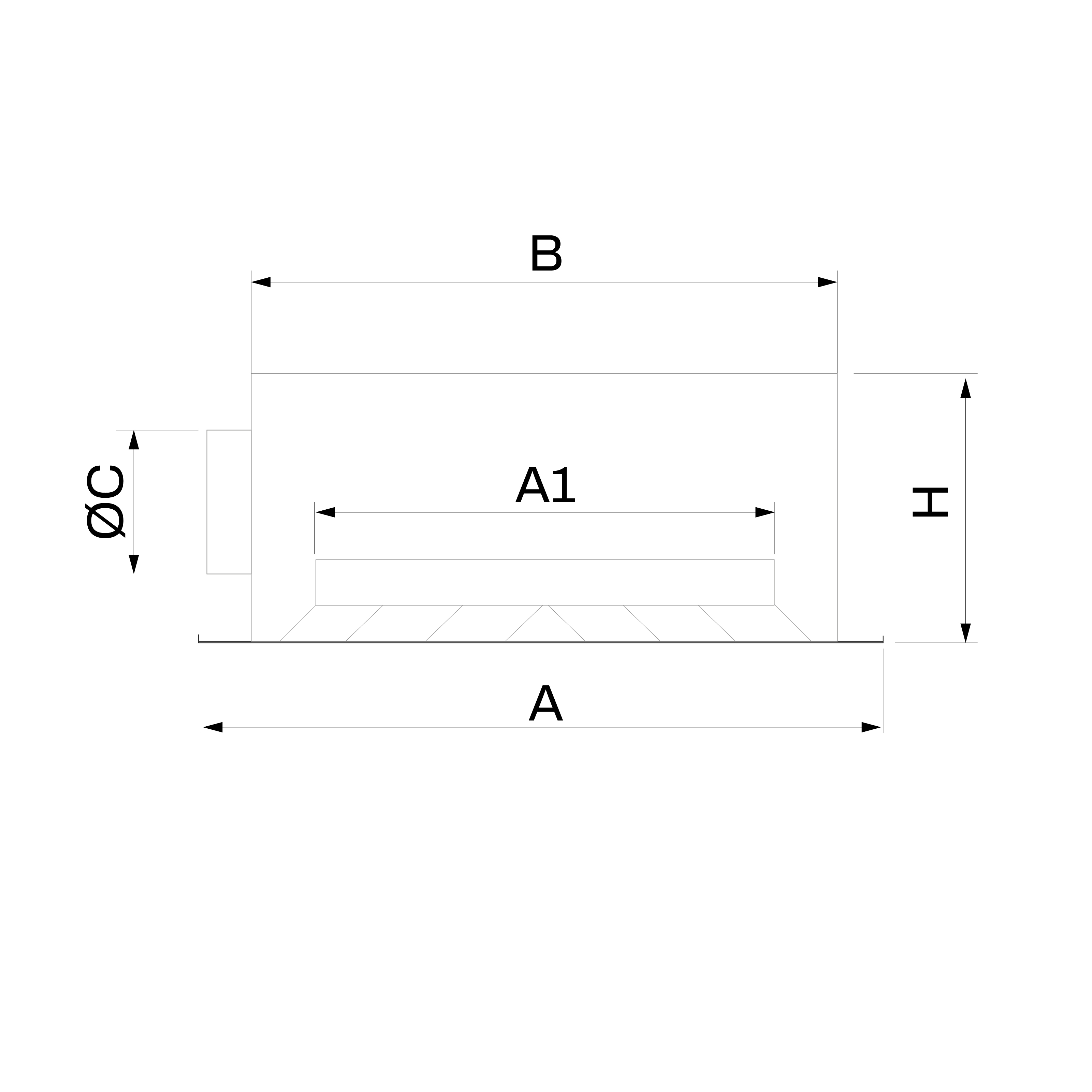

A [mm]	595 x 595
A1 [mm]	145 x 145
B [mm]	235 x 235
Ø C [mm]	100 - 125 -150
H [mm]	250

PWD200008

SQUARE DIFFUSER DQBP 595x595 4 WAYS AIR PASSAGE 225x225 IN WHITE PAINTED ALUMINIUM WITH DAMPER AND LOWERED PLENUM

A [mm]	595 x 595
A1 [mm]	220 x 220
B [mm]	310 x 310
Ø C [mm]	150
H [mm]	250

PWD200009

SQUARE DIFFUSER DQBP 595x595 4 WAYS AIR PASSAGE 300x300 IN WHITE PAINTED ALUMINIUM WITH DAMPER AND LOWERED PLENUM

A [mm]	595 x 595
A1 [mm]	295 x 295
B [mm]	385 x 385
Ø C [mm]	150 - 200
H [mm]	250

PWD200010

SQUARE DIFFUSER DQBP 595x595 4 WAYS AIR PASSAGE 375x375 IN WHITE PAINTED ALUMINIUM WITH DAMPER AND LOWERED PLENUM

A [mm]	595 x 595
A1 [mm]	370 x 370
B [mm]	460 x 460
Ø C [mm]	150 - 200
H [mm]	250
