EOLO Custom insulated plenum for units ducted in sintered expanded polystyrene

Project Wind
Air diffusion

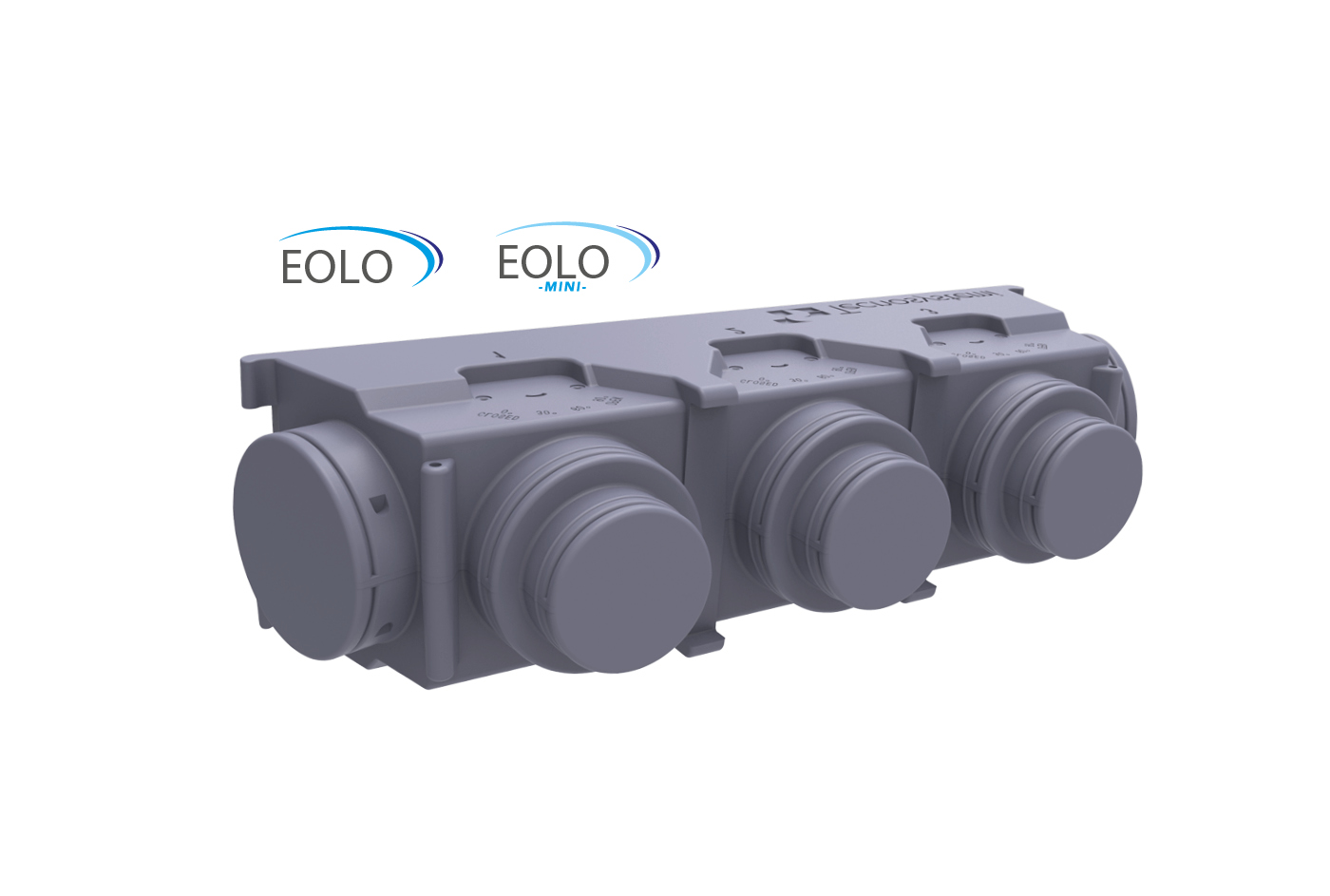

EOLO is the innovative plenum made of sintered polystyrene foam material with high sound and thermal insulation.
EOLO is available in 4 versions: 2 – 3 – 4 – 5 front outputs.
On both models there are two Ø 200 collars on the sides, which can be used as additional outlets.
The collars are included.

TECHNICAL SPECIFICATIONS:

• Made of sintered expanded polystyrene
• Thermal conductivity: 0.030 / 0.033 W/mK with respect to the EN 12667 / EN 12939 standard
• Resistance to vapour 40 / 70 µ in relation to EN 12086
• Operating temperature – 30° / + 90°
• Water absorption % volume in relation to EN 12087
• Reaction to fire class E according to EN- ISO – 11925 – 2
• Thermal performance thickness 30 mm 0.95 m2K/W
• Made of graphite-infused EPS material
• Collars integrated into plenum
• Total depth including collar 350 mm
• Machine fastening flange included
• Front collars 150/200mm
• Side collars 200mm
