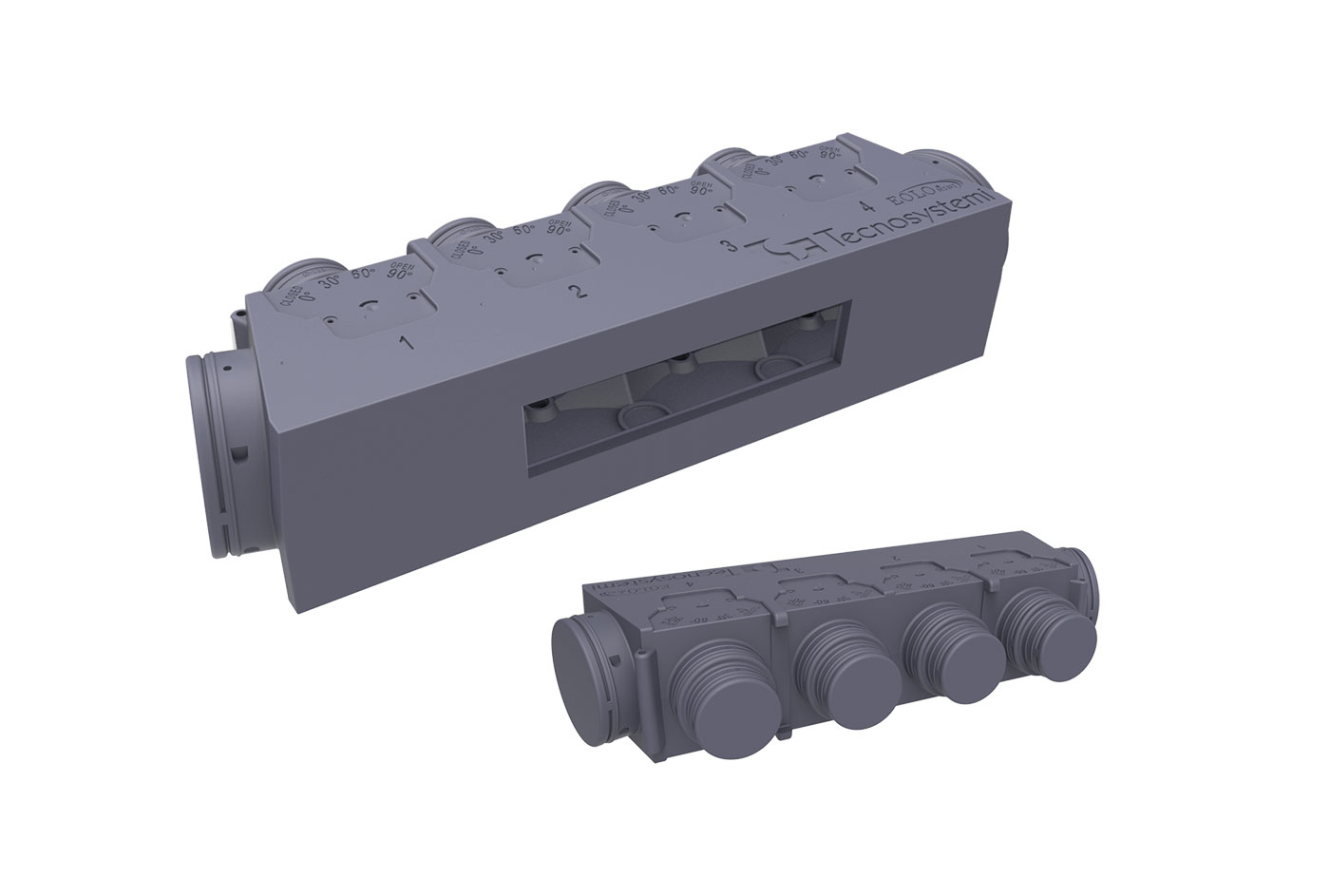

EOLO MINI UNIVERSAL Polystyrene plenum kit

Project Wind
Air diffusion

“DIY KIT”
In the kit you will find everything you need to adapt the plenum to the mouth of the unit ducted directly on site.

TECHNICAL SPECIFICATIONS:

• Made of sintered expanded polystyrene
• Ready for ceiling anchoring via threaded bars
• Thermal insulation, waterproof
• Thermal conductivity: 0.030 / 0.033 W/mK with respect to the EN 12667 / EN 12939 standard
• Resistance to vapour 40 / 70 µ in relation to EN 12086
• Operating temperature – 30°C / + 90°C
• Water absorption % volume ≤5 in relation to EN 12087
• Reaction to fire class and according to EN 13501-1:2009
• Thermal performance thickness 30 mm 0.95 m2K/W
• Integrated front and side collar
• Tube of glue
• Aluminium profile for flange supplied
• Plenum-machine coupling with aluminium profile to be cut to size (included in kit)
