EXCELLENS TMR Flanged round wall terminal

Smart Clima
Air conditioning
Heat pumps

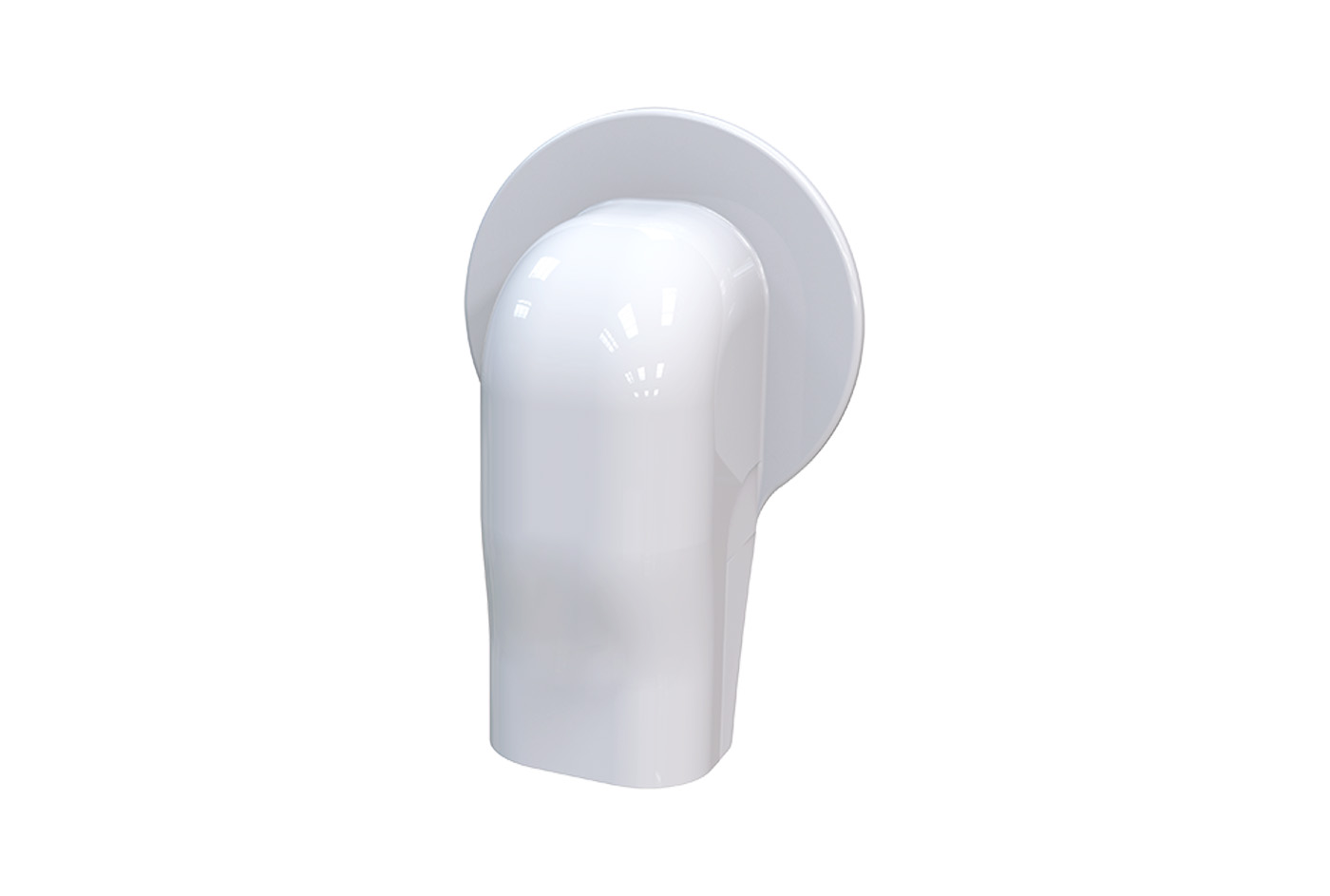

Flanged round wall-mounted terminal for ducts of the EXCELLENS series, in high impact resistance plastic, recyclable.
The terminal was designed with a quick and easy slot-in fixing system.
The wall terminal has a large external flange with an innovative round shape, pre-cut slots for the discharge pipe outfeed and 3 pre-cut holes for wall fixing if required.
The characteristics of the innovative material allow it to be used with temperatures ranging from -20°C to +60°C for whites and from -20°C to +75°C for colours.

Certifications

TECHNICAL SPECIFICATIONS:

• In high impact resistance plastic, recyclable
• Innovative design
• Ultra-fast interlocking fastening system
• Interlocking bottom and lid
• Duct profile locating ridge
• Large outer flange hole cover
• Extremely high outer finish
• Heat shrink barcode packaging
• Paintable with light-colored paints
• Operating temperature -20°C / + 60°C
• Coloured operating temperature -20°C / +75°C

Models

Available Models (15)

SCD100274

“EXCELLENS TMR” ROUND WALL COVER - TOP LINE - TMR 60-EXC

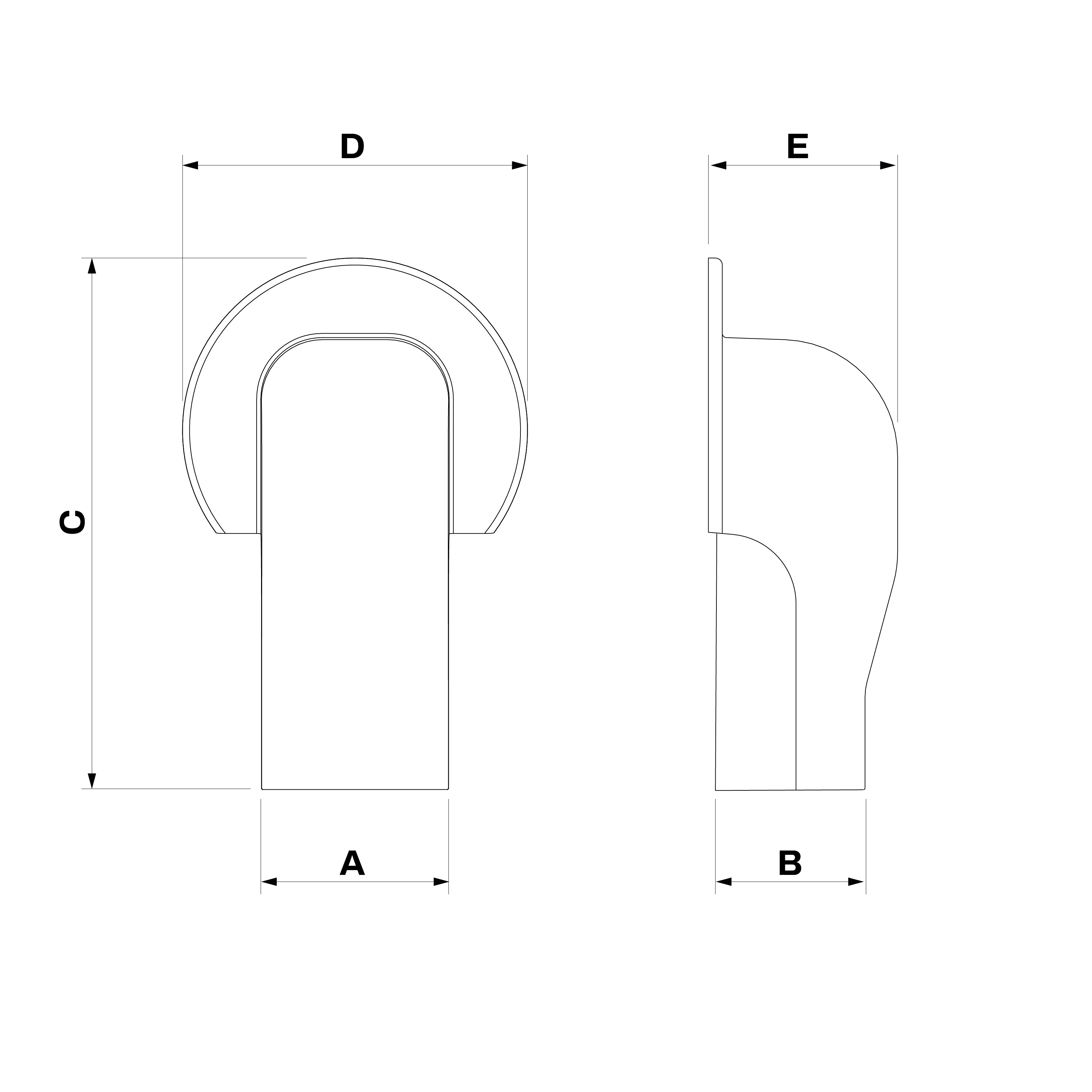

MODEL	TMR EXC 60 TOP LINE
A [mm]	67
B [mm]	56
C [mm]	190
D [mm]	124
E [mm]	68

SCD100276

“EXCELLENS TMR” ROUND WALL COVER - TOP LINE - TMR 72-EXC

MODEL	TMR EXC 72 TOP LINE
A [mm]	78
B [mm]	68
C [mm]	210
D [mm]	140
E [mm]	78

SCD100278

“EXCELLENS TMR” ROUND WALL COVER - TOP LINE - TMR 100-EXC

MODEL	TMR EXC 100 TOP LINE
A [mm]	102
B [mm]	78
C [mm]	240
D [mm]	170
E [mm]	92

SCD100280

“EXCELLENS TMR” ROUND WALL COVER - NEW LINE WHITE - TMR 60-EXC

MODEL	TMR EXC 60 NEW LINE
A [mm]	67
B [mm]	56
C [mm]	190
D [mm]	124
E [mm]	68

SCD100282

“EXCELLENS TMR” ROUND WALL COVER - NEW LINE WHITE - TMR 72-EXC

MODEL	TMR EXC 72 NEW LINE
A [mm]	78
B [mm]	68
C [mm]	210
D [mm]	140
E [mm]	78

SCD100284

“EXCELLENS TMR” ROUND WALL COVER - NEW LINE WHITE - TMR 100-EXC

MODEL	TMR EXC 100 NEW LINE
A [mm]	102
B [mm]	78
C [mm]	240
D [mm]	170
E [mm]	92

SCD100286

“EXCELLENS TMR” ROUND WALL COVER - ECO LINE - TMR 60-EXC

MODEL	TMR EXC 60 ECO LINE
A [mm]	67
B [mm]	56
C [mm]	190
D [mm]	124
E [mm]	68

SCD100288

“EXCELLENS TMR” ROUND WALL COVER - ECO LINE - TMR 72-EXC

MODEL	TMR EXC 72 ECO LINE
A [mm]	78
B [mm]	68
C [mm]	210
D [mm]	140
E [mm]	78

SCD100290

“EXCELLENS TMR” ROUND WALL COVER - ECO LINE - TMR 100-EXC

MODEL	TMR EXC 100 ECO LINE
A [mm]	102
B [mm]	78
C [mm]	240
D [mm]	170
E [mm]	92

SCD100294

ROUND FLANGED WALL TERMINAL TM72 BROWN LINE (5 PCS.)

MODEL	TMR EXC 72 BROWN LINE
A [mm]	78
B [mm]	68
C [mm]	210
D [mm]	140
E [mm]	78

SCD100296

ROUND WALL-MOUNTED TERMINAL TM100 BROWN LINE (3 PCS.)

MODEL	TMR EXC 100 BROWN LINE
A [mm]	102
B [mm]	78
C [mm]	240
D [mm]	170
E [mm]	92

SCD100300

ROUND FLANGED WALL-MOUNTED TERMINAL TM72 BLACK LINE (5 PCS.)

MODEL	TMR EXC 72 BLACK LINE
A [mm]	78
B [mm]	68
C [mm]	210
D [mm]	140
E [mm]	78

SCD100302

ROUND FLANGED WALL-MOUNTED TERMINAL TM100 BLACK LINE (3 PCS.)

MODEL	TMR EXC 100 BLACK LINE
A [mm]	102
B [mm]	78
C [mm]	240
D [mm]	170
E [mm]	92

SCD100306

“EXCELLENS TMR” ROUND WALL COVER - GREY LINE - TMR 72-EXC

MODEL	TMR EXC 72 GREY LINE
A [mm]	78
B [mm]	68
C [mm]	210
D [mm]	140
E [mm]	78

SCD100308

“EXCELLENS TMR” ROUND WALL COVER - GREY LINE - TMR 100-EXC

MODEL	TMR EXC 100 GREY LINE
A [mm]	102
B [mm]	78
C [mm]	240
D [mm]	170
E [mm]	92
