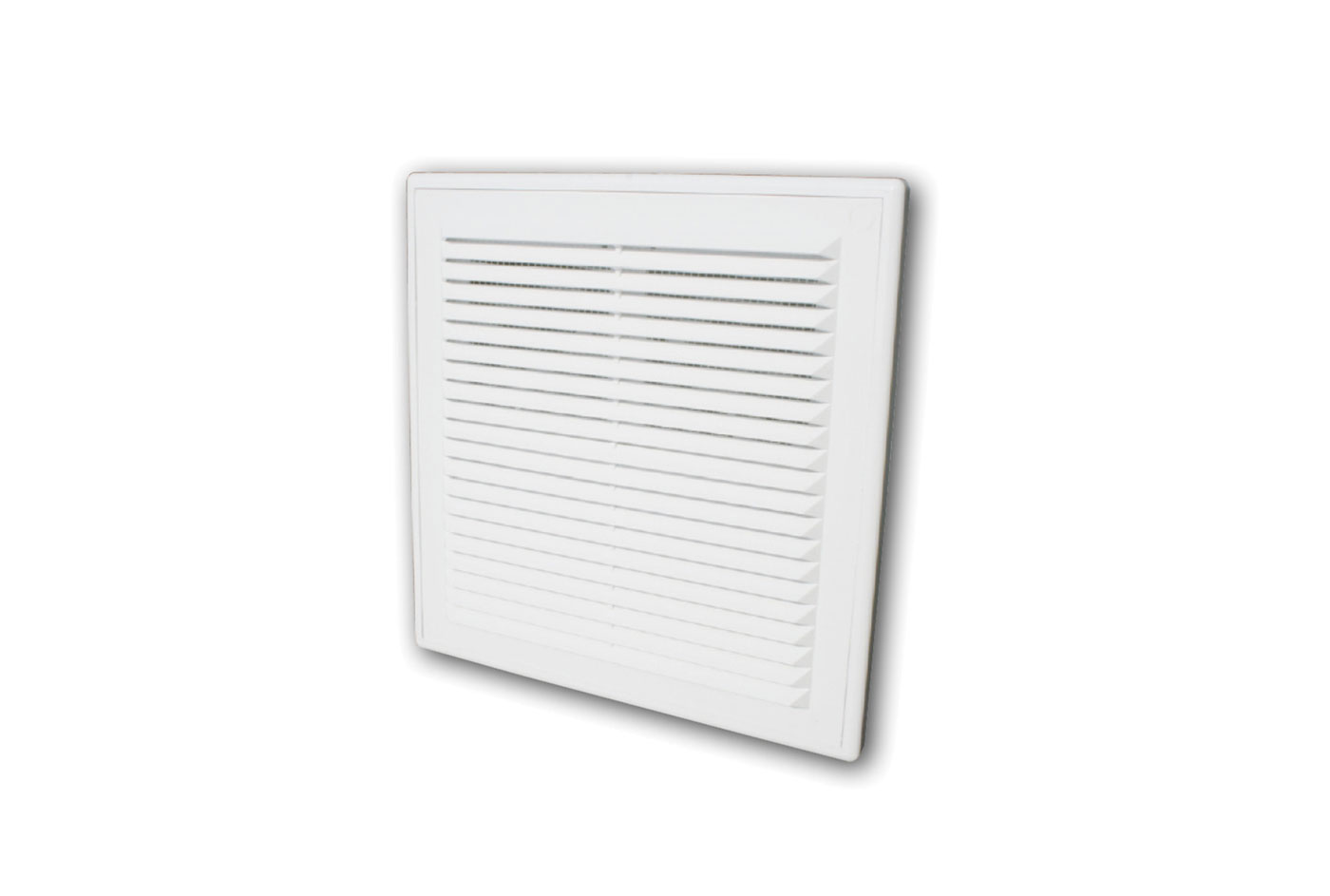

G.R.V.I. Wall-mounted rectangular grille with adjustable flush-mounted diameter in white ABS

Project Wind
Air diffusion

TECHNICAL SPECIFICATIONS:

• Made of ABS
• Ideal for both intake and delivery of air
• Wall-mounted or built-in
• Equipped with anti-insect mesh
• Easy to clean
• Easily removable grille exterior
• Rear built-in mounted
• Can be used with circular air ducts from Ø 100mm to Ø 150mm
• Operating temperature -40°C to +40°C

Models

Available Models (3)

11104056

WALL-MOUNTED/RECESSED RECTANGULAR GRILLE “G.R.V.I.” Ø 150

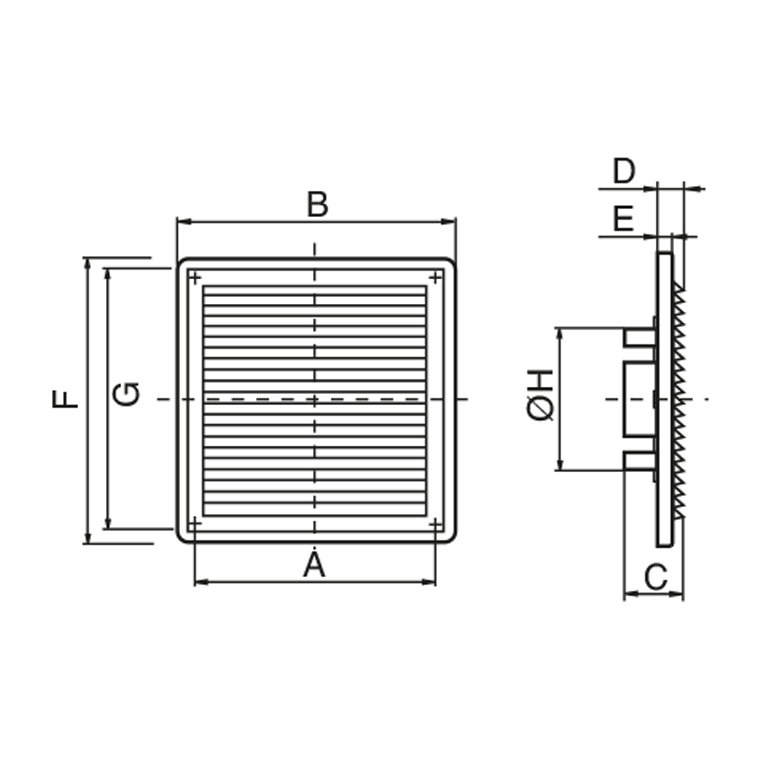

MOD.	150
A [mm]	179
B [mm]	204
C [mm]	41
D [mm]	16
E [mm]	10
F [mm]	204
G [mm]	179
H [mm]	100/150
AIR PASSAGE [cm²]	92

11104057

WALL-MOUNTED/RECESSED RECTANGULAR GRILLE “G.R.V.I.” Ø 160

MOD.	160
A [mm]	205
B [mm]	221
C [mm]	42
D [mm]	15
E [mm]	10
F [mm]	299
G [mm]	283
H [mm]	100/150
AIR PASSAGE [cm²]	180

11104058

WALL-MOUNTED/RECESSED RECTANGULAR GRILLE “G.R.V.I.” Ø 170

MOD.	170
A [mm]	283
B [mm]	299
C [mm]	42
D [mm]	15
E [mm]	10
F [mm]	221
G [mm]	205
H [mm]	100/150
AIR PASSAGE [cm²]	260
