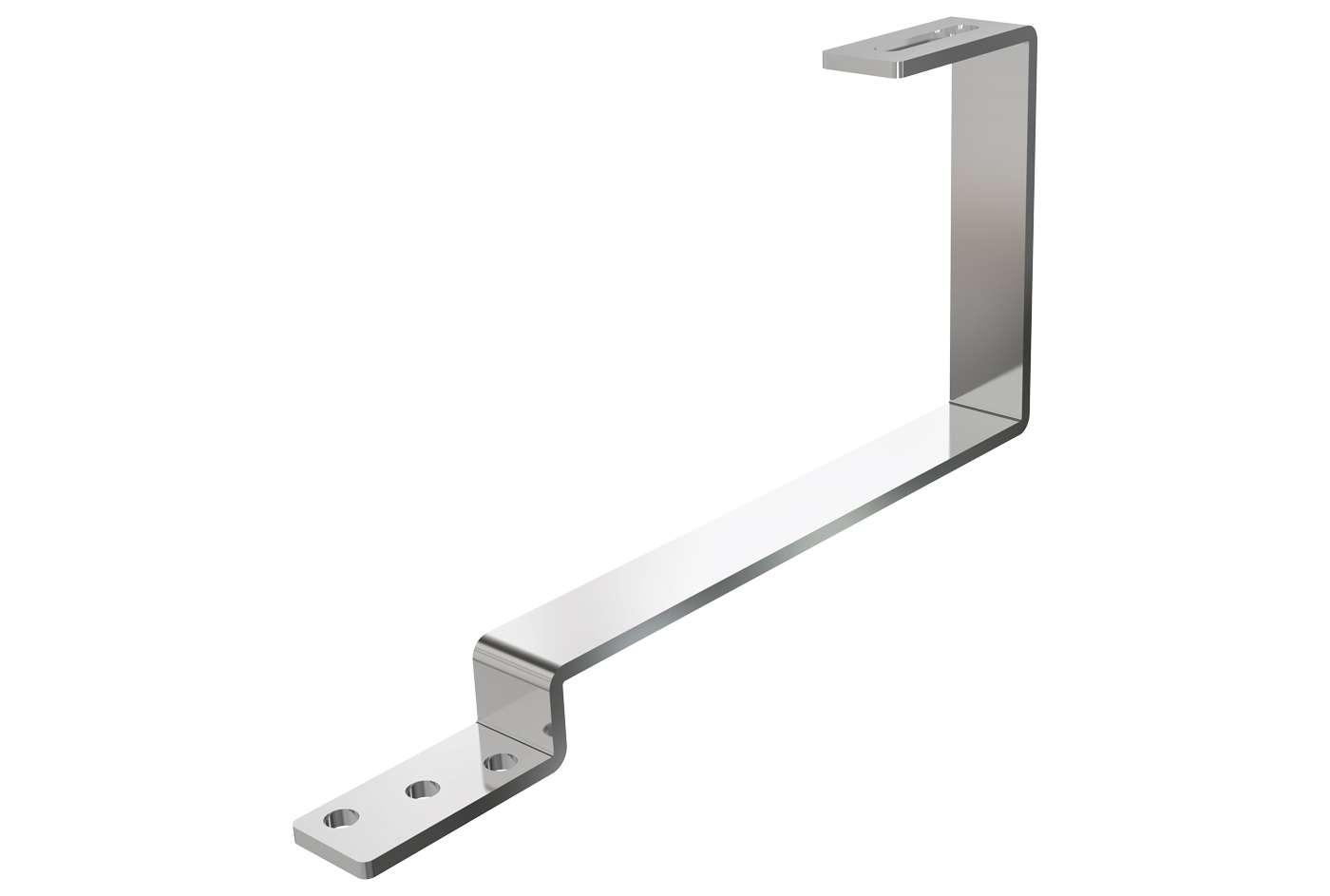

Immagine IMG_FVD300006.jpg

Configure View documentation

GTPF-2 Fixed flat tile hook

Fv Power

TECHNICAL SPECIFICATIONS:

• Material: AISI 304 stainless steel
• Thickness: 5mm
• 3 holes Ø 11 prepared for bracket mounting

Models

Available Models (2)

FVD300006

FIX HOOK FOR FLAT TILE ROOFS FISSO GTPF-2

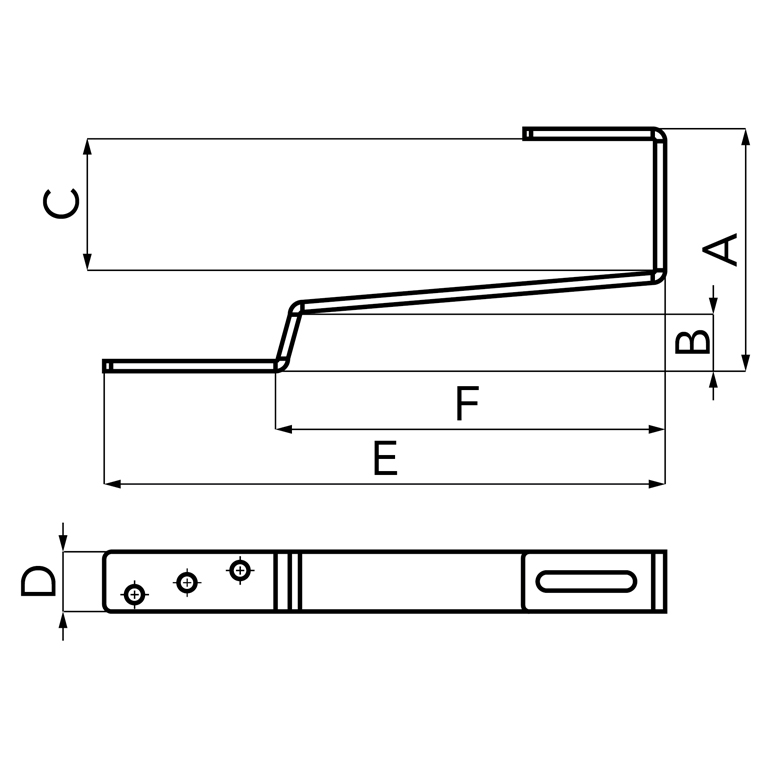

A [mm]	120
B [mm]	30
C [mm]	65,5
D [mm]	30
E [mm]	277
F [mm]	193

FVD300006BOX

FIX HOOK FOR FLAT TILE ROOFS FISSO GTPF-2 - BOX 10 pcs

A [mm]	120
B [mm]	30
C [mm]	65,5
D [mm]	30
E [mm]	277
F [mm]	193
