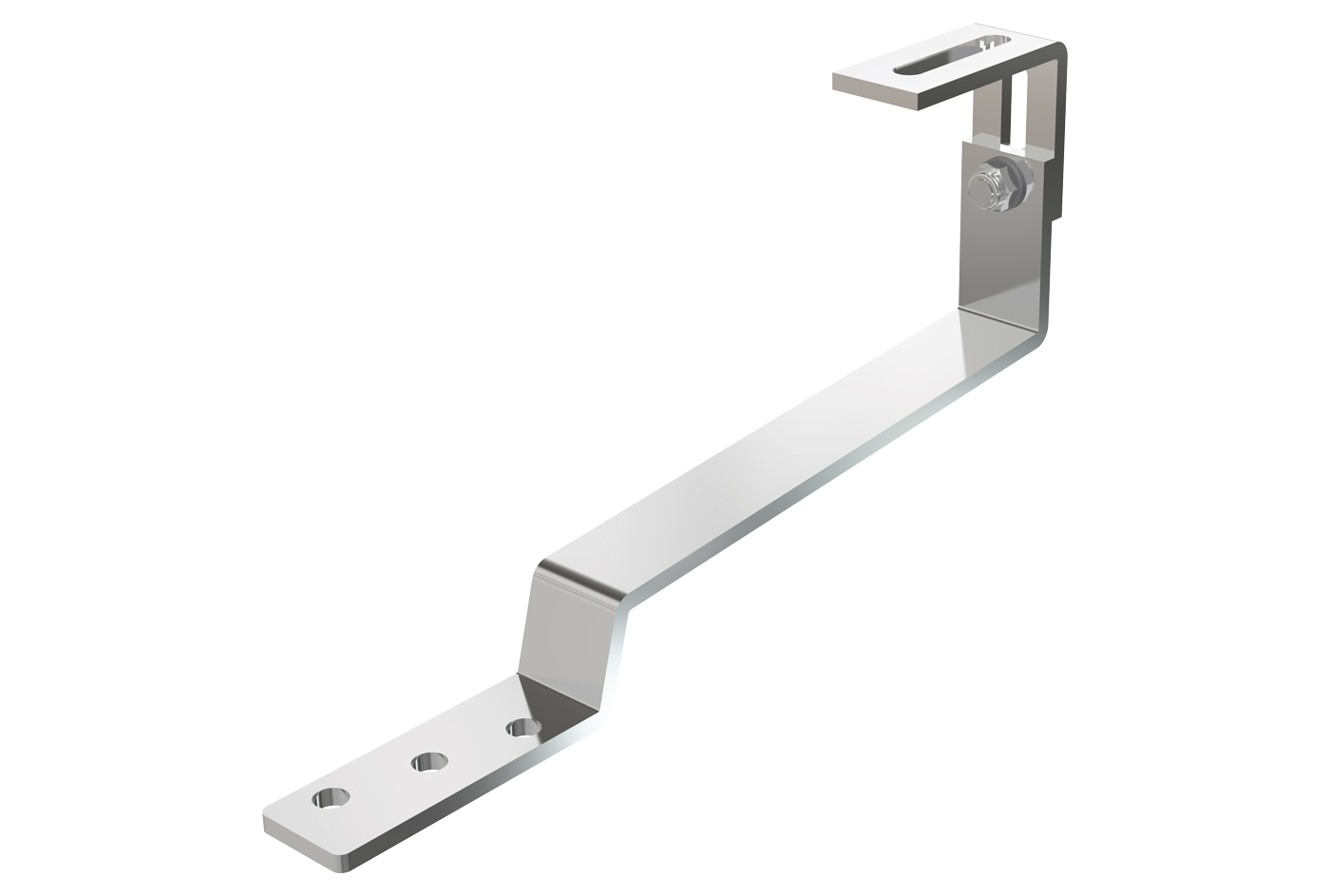

GTPFR-1 Adjustable flat tile hook

Fv Power

TECHNICAL SPECIFICATIONS:

• Material: AISI 304 stainless steel
• Thickness: 5mm
• 3 holes prepared for bracket attachment

Models

Available Models (2)

FVD300007

ADJUSTABLE HOOK FOR FLAT TILE ROOFS REGOLABILE GTPFR-1

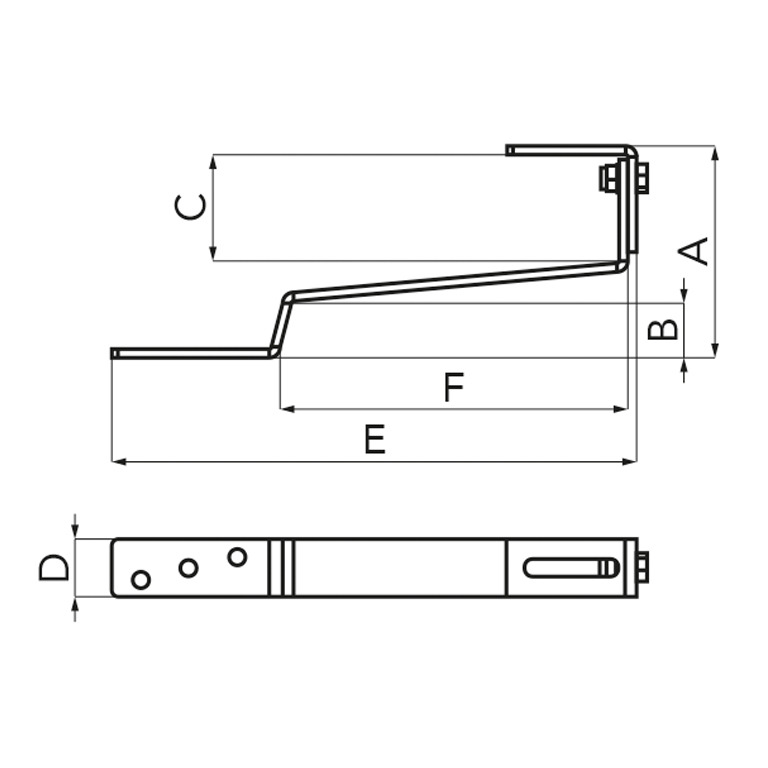

A [mm]	110 ÷ 138
B [mm]	30
C [mm]	55 ÷ 85
D [mm]	30
E [mm]	280
F [mm]	195

Download

Documentation

Technical Data Sheet

it en fr de
