HMCR Adjustable central clamp for glass panels

Fv Power

For application of the clamp on the FVP profiles use TCEI M8 x 40 screws

TECHNICAL SPECIFICATIONS:

• Material: aluminium alloy 6060
• Complete with EPDM rubber strips
• Ideal for amorphous panels
• Adjustable from 5,8 to 9 mm

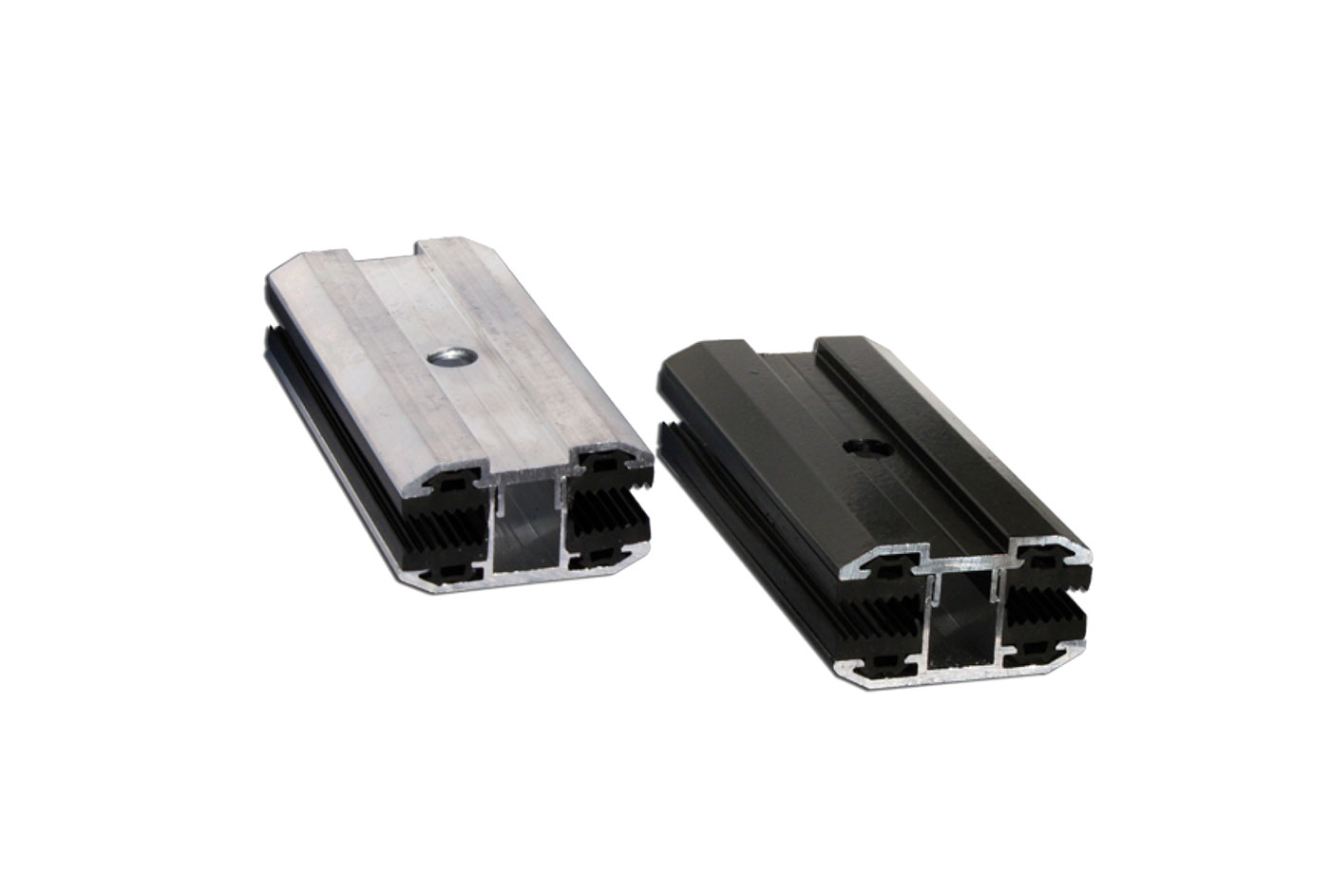

• Mod. HMCRA: black anodised version available on request (cod. 11111030A)

Models

Available Models (4)

11111030

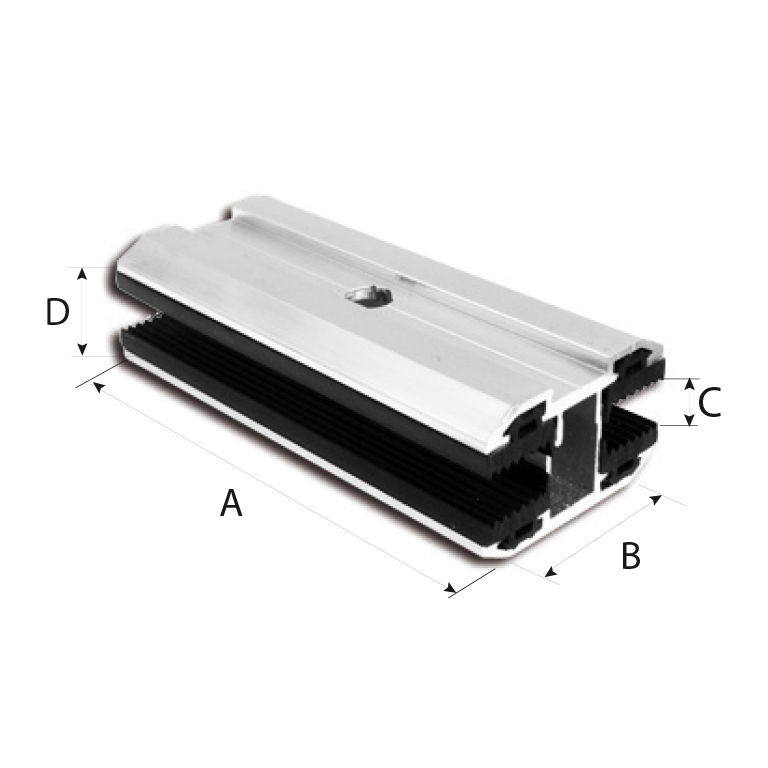

CENTRAL JAW HMCR

A [mm]	100
B [mm]	45
C [mm]	5,8÷9
D [mm]	24-29
Ø FORO [mm]	9

11111030BOX

CENTRAL JAW HMCR - BOX 50 pcs

A [mm]	100
B [mm]	45
C [mm]	5,8÷9
D [mm]	24-29
Ø FORO [mm]	9

11111030A

CENTRAL JAW HMCRA

A [mm]	100
B [mm]	45
C [mm]	5,8÷9
D [mm]	24-29
Ø FORO [mm]	9

11111030ABOX

CENTRAL JAW HMCRA - BOX 50 pcs

A [mm]	100
B [mm]	45
C [mm]	5,8÷9
D [mm]	24-29
Ø FORO [mm]	9
