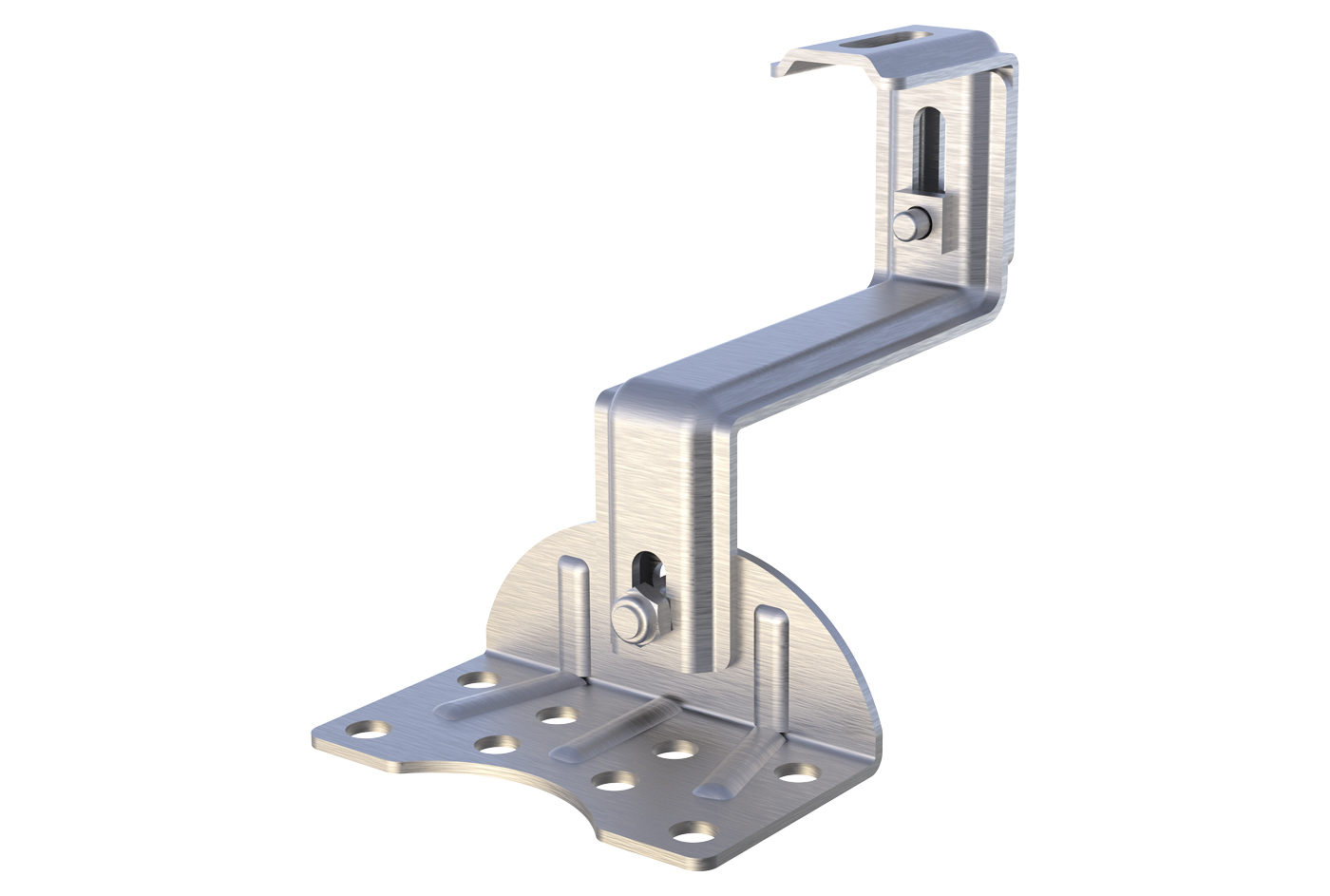

HS2HDRT 3 mm thick high support double adjustment for tiled roofs
Fv Power
Support with double adjustment made of stainless steel complete with padding that offers very high resistance to pressure.
The arm can be rotated to allow double use.
TECHNICAL SPECIFICATIONS:
• Material: AISI 304 stainless steel
• Flexural modulus of elasticity: 196000 N/mm²
• Tensile breaking load: 515 N/mm²
• 8 holes Ø 11 prepared for bracket attachment
• Hook dimensions: 40mm x 3mm thickness
Models
Available Models (2)
11111103
HIGH SUPPORT WHIT DUAL REGULATION "HS2DRT"

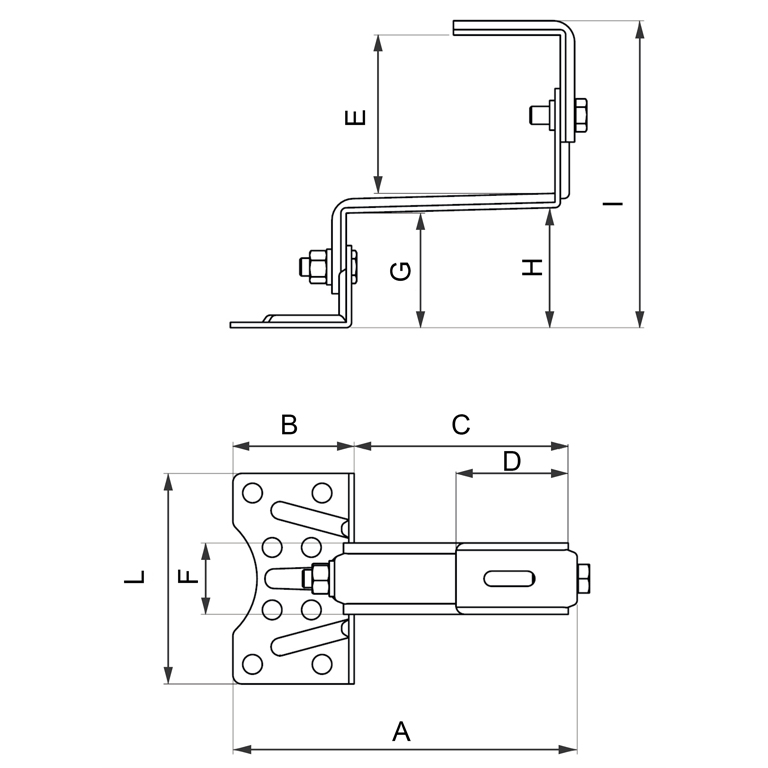

| A [mm] | 193 |
|---|---|
| B [mm] | 70 |
| C [mm] | 120 |
| D [mm] | 60 |
| E [mm] | 65÷80 |
| F [mm] | 40 |
| G [mm] | 100÷111 |
| H [mm] | 103÷114 |
| I [mm] | 184÷210 |
| L [mm] | 120 |
Tailor-made solutions
Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
