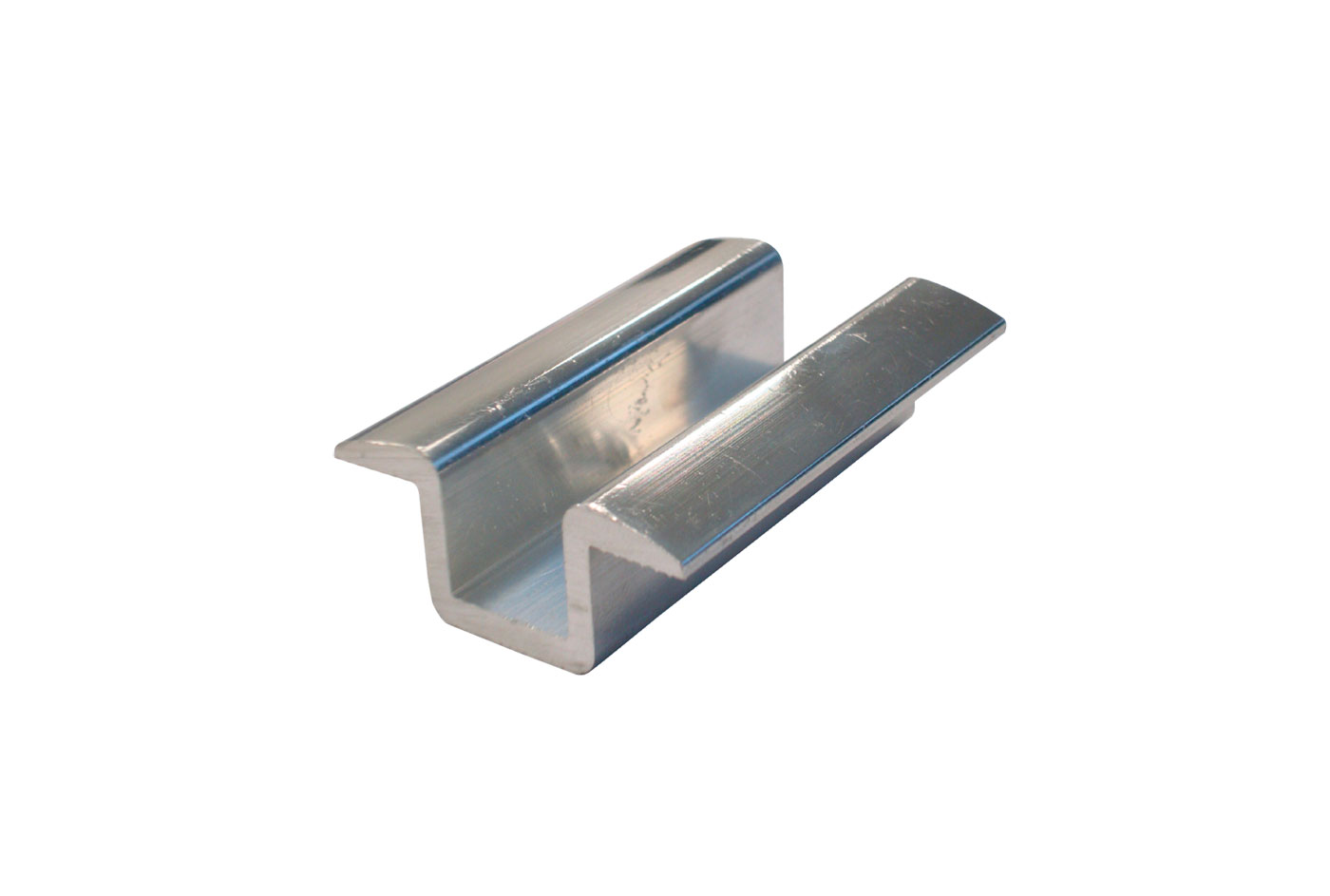

HSC/60 Central clamp

Fv Power

• Universal model with non-slip knurling.

TECHNICAL SPECIFICATIONS:

• Material: aluminium alloy 6060
• Bracket length: 60mm
• Usable for all measurements of photovoltaic panels
• Hole Ø 8.5 mm

Models

Available Models (2)

11110845

CENTRAL BRACKET HSC/60

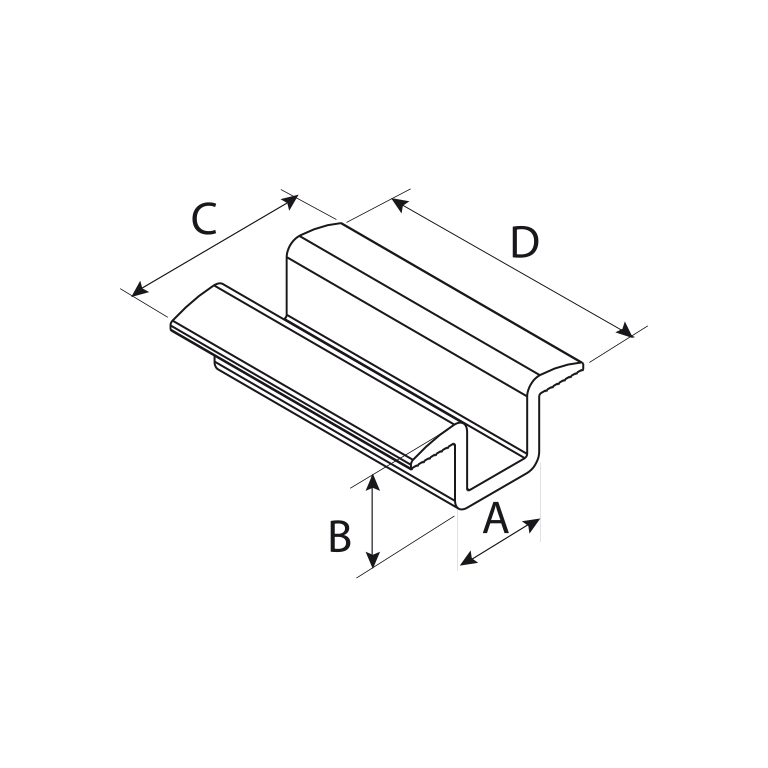

A [mm]	21
B [mm]	19,5
C [mm]	43
D [mm]	60
Ø FORO [mm]	8,5

11110845BOX

CENTRAL BRACKET HSC/60 - BOX 50 pcs

A [mm]	21
B [mm]	19,5
C [mm]	43
D [mm]	60
Ø FORO [mm]	8,5
