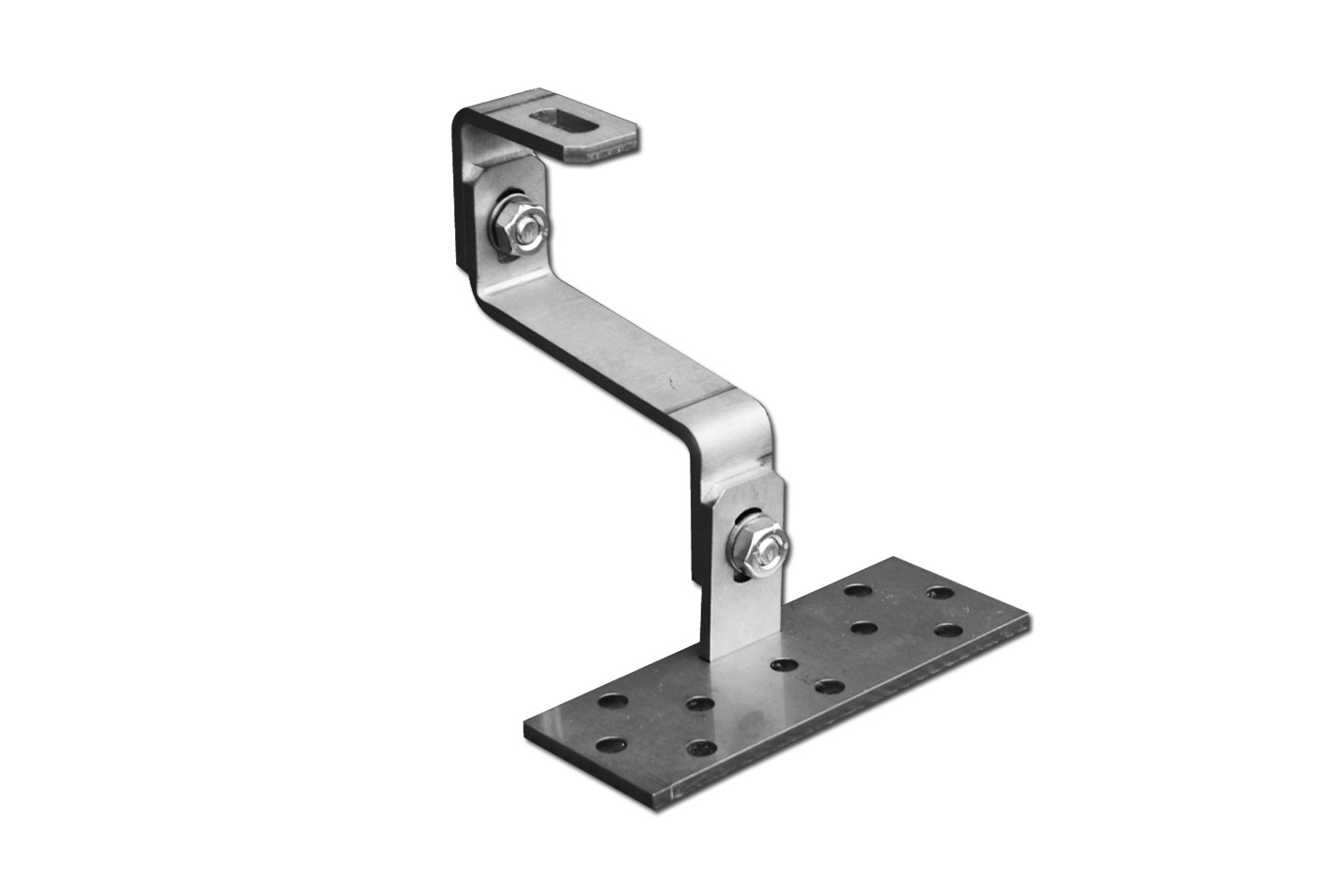

HSDRT Support with double adjustment for fixing on tiled roofs
Fv Power
TECHNICAL SPECIFICATIONS:
• Material: AISI 304 stainless steel
• Flexural modulus of elasticity: 196000 N/mm²
• Tensile breaking load: 515 N/mm²
• Thickness 5 mm
• 10 holes Ø 9 for roof mounting
Models
Available Models (2)
11110733
SUPPORT HSDRT WITH DOUBLE ADJUSTMENT FOR TILE ROOFS - INOX AI31 304

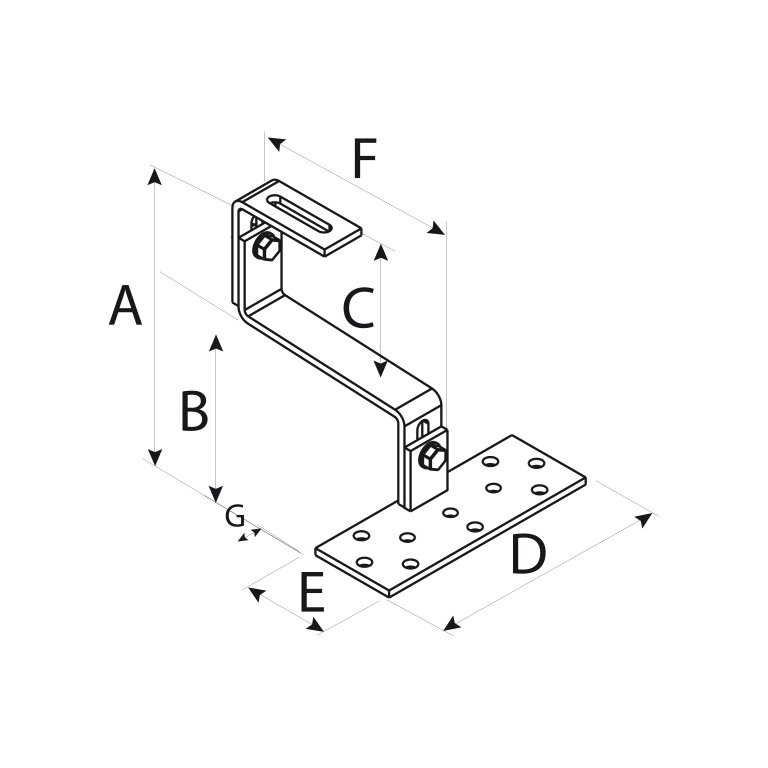

| A [mm] | 155 ÷ 230 |
|---|---|
| B [mm] | 55 ÷ 100 |
| C [mm] | 115 ÷ 75 |
| D [mm] | 160 |
| E [mm] | 60 |
| F [mm] | 100 |
| G [mm] | 30 |
Tailor-made solutions
Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
