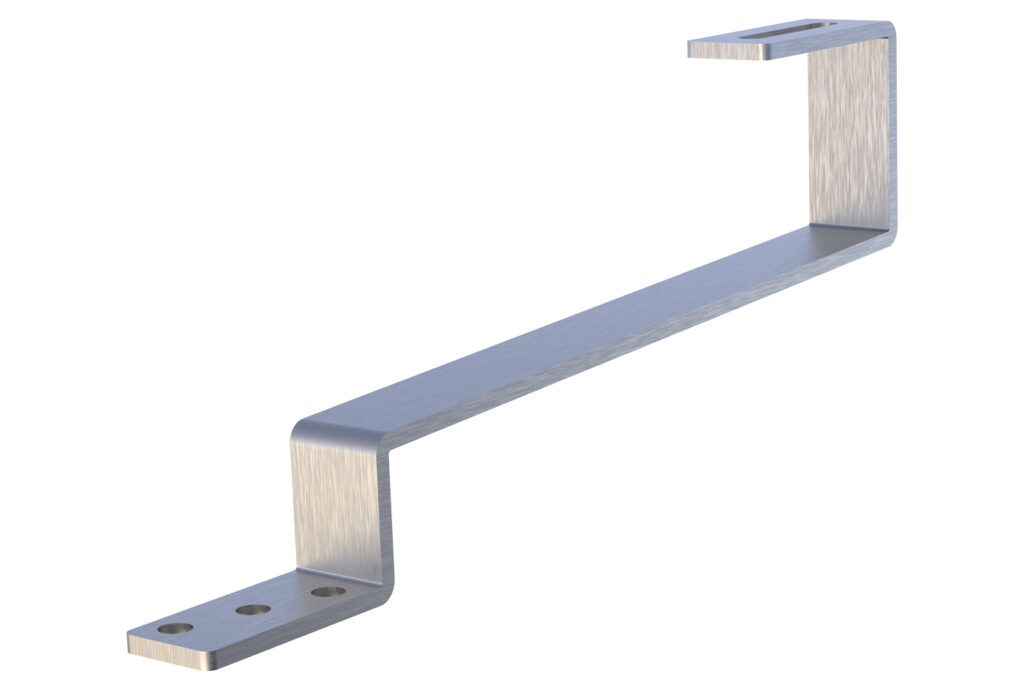

HSTL 105/20-62 HSTL 120 / 40-62 support for fixing on pitched roofs
Fv Power
AISI 304 stainless steel and/or hot-dip galvanized steel mount for fastening PV systems on roofs with flat tiles, roof tiles or lose tiles.
TECHNICAL SPECIFICATIONS:
• Material: AISI 304 stainless steel
• Flexural modulus of elasticity: 196000 N/mm²
• Tensile breaking load: 515 N/mm²
• Hook dimensions: 30mm x 5mm thickness
• 3 holes Ø 9 prepared for bracket attachment
TECHNICAL SPECIFICATIONS:
• Material: galvanised steel
• Tensile strength: 440 N/mm²
• Treatment: hot dip galvanised
• Hook dimensions: 30mm x 5mm thickness
• 3 holes Ø 9 prepared for bracket attachment
Models
Available Models (3)
11110708BOX
SUPPORT FOR FIXING ON ROOFS HSTL 105/20-62 INOX AISI 304 - BOX 10 pcs
| A [mm] | 105 |
|---|---|
| B [mm] | 20 |
| C [mm] | 62 |
| D [mm] | 30 |
| E [mm] | 325 |
| F [mm] | 250 |
Tailor-made solutions
Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
