Immagine IMG_FVD500002.jpg
Configure View documentation

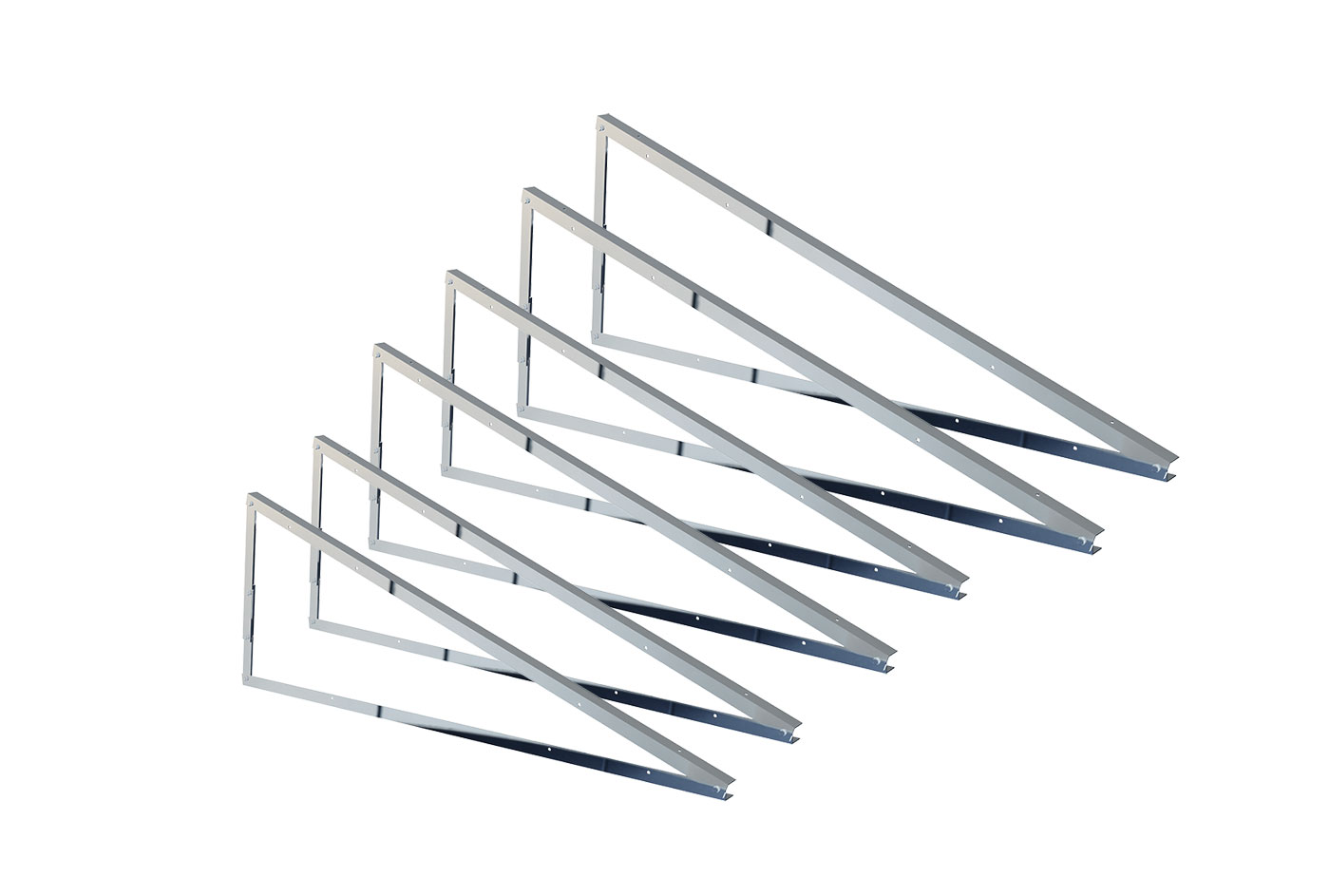

HTL Adjustable support triangle for flat roofs

  • Fv Power

TECHNICAL SPECIFICATIONS:

• Material: EN AW 6060
• “L” profile 40 x 40
• Stainless steel screws


TECHNICAL SPECIFICATIONS:

• Material: 6060 aluminium
• Extruded with non-slip knurlings
• Stainless steel screws
• Extruded boxed


Models

Available Models (6)

FVD500002

TRIANGOLO SUPPORTO PER TETTO PIANO HTL1800 10-15-20°

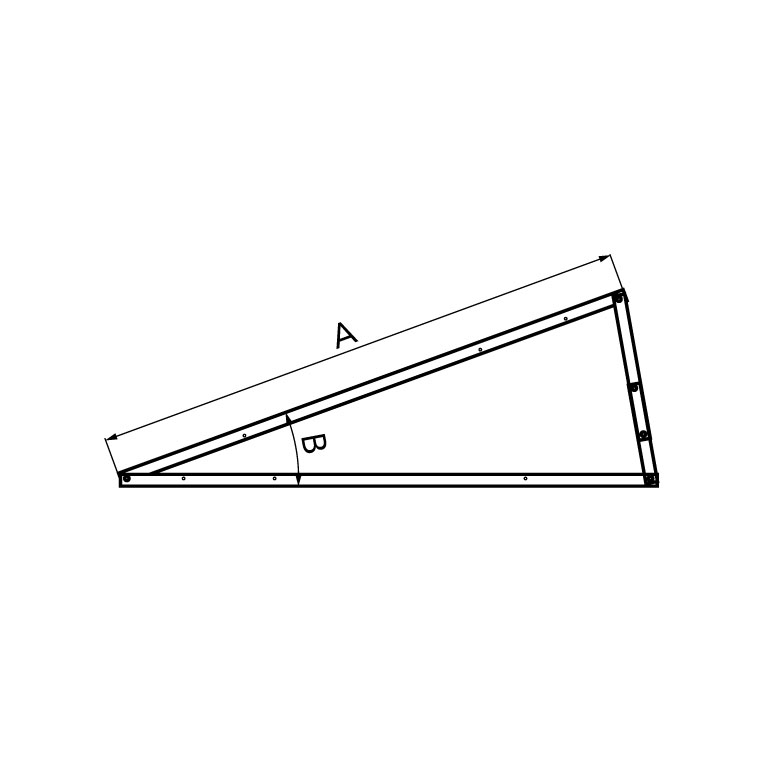

A [mm] 1800
B (degrees) 10° - 15° - 20°

FVD500003

TRIANGOLO SUPPORTO PER TETTO PIANO HTL1800 25-30-35°

A [mm] 1800
B (degrees) 25° - 30° - 35°

FVD500004

ADJUSTABLE TRIANGLE FOR FLAT ROOF HTL2000 10-15-20°

A [mm] 2000
B (degrees) 10° - 15° - 20°

FVD500005

ADJUSTABLE TRIANGLE FOR FLAT ROOF HTL2000 25-30-35°

A [mm] 2000
B (degrees) 25° - 30° - 35°

FVD500006

ADJUSTABLE TRIANGLE FOR FLAT ROOF HTL2200 10-15-20°

A [mm] 2200
B (degrees) 10° - 15° - 20°

FVD500007

ADJUSTABLE TRIANGLE FOR FLAT ROOF HTL2200 25-30-35°

A [mm] 2200
B (degrees) 25° - 30° - 35°

Tailor-made solutions

Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.

Download

Documentation

Immagine IMG_FVD500002.jpg

  • Technical Data Sheet

    it en fr de

  • User Manual

    it en
