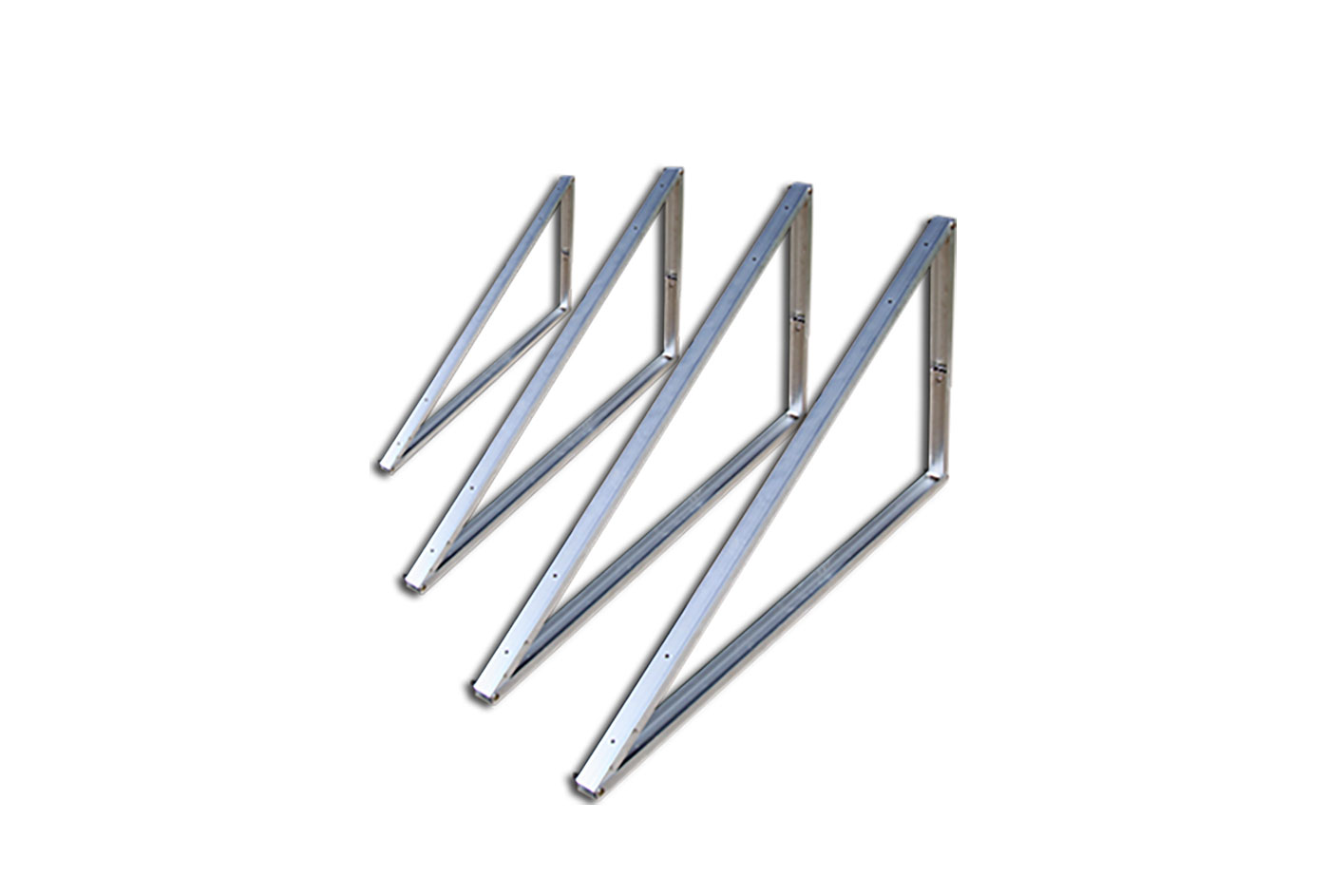

HTR Adjustable support triangle for flat roofs

To fasten the FVP 400-300-250 profiles, use the M8 x 35 screw kit.

Models

Available Models (6)

11110755

ADJUSTABLE TRIANGLE HTR 800 - 20°-25°-30°

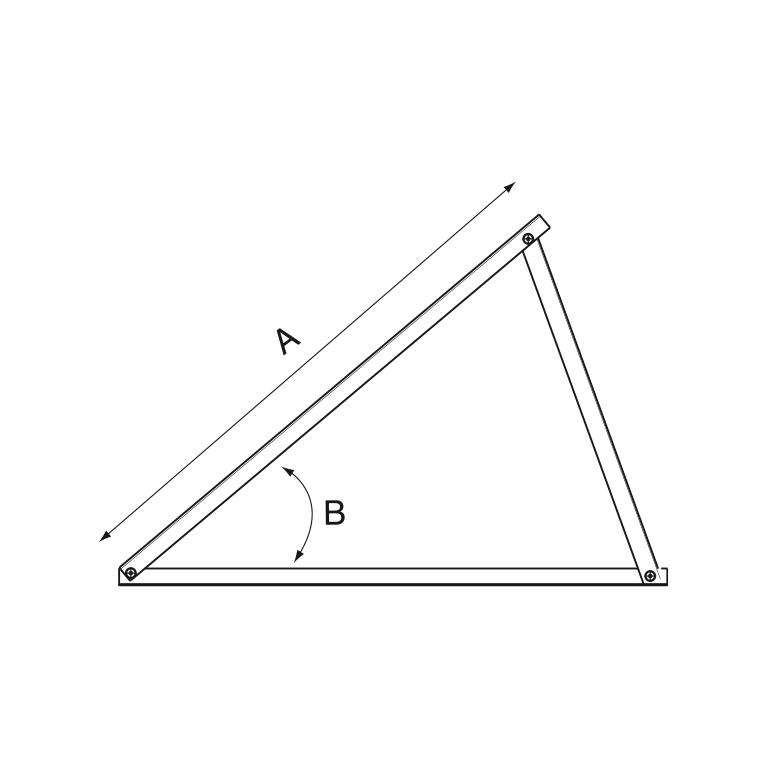

A [mm]	800
B (degrees)	20° - 25° - 30°

11110759

ADJUSTABLE TRIANGLE HTR 800 - 35°-40°

A [mm]	800
B (degrees)	35° - 40°

11110757

ADJUSTABLE TRIANGLE HTR 1600- 20°-25°-30°

A [mm]	1600
B (degrees)	20° - 25° - 30°

11110761

ADJUSTABLE TRIANGLE HTR 1600 - 35°-40°

A [mm]	1600
B (degrees)	35° - 40°

11110758

ADJUSTABLE TRIANGLE HTR 2000- 20°-25°-30°

A [mm]	2000
B (degrees)	20° - 25° - 30°

11110762

ADJUSTABLE TRIANGLE HTR 2000 - 35°-40°

A [mm]	2000
B (degrees)	35° - 40°
