Immagine IMG_SCD500031.jpg
Configure View documentation

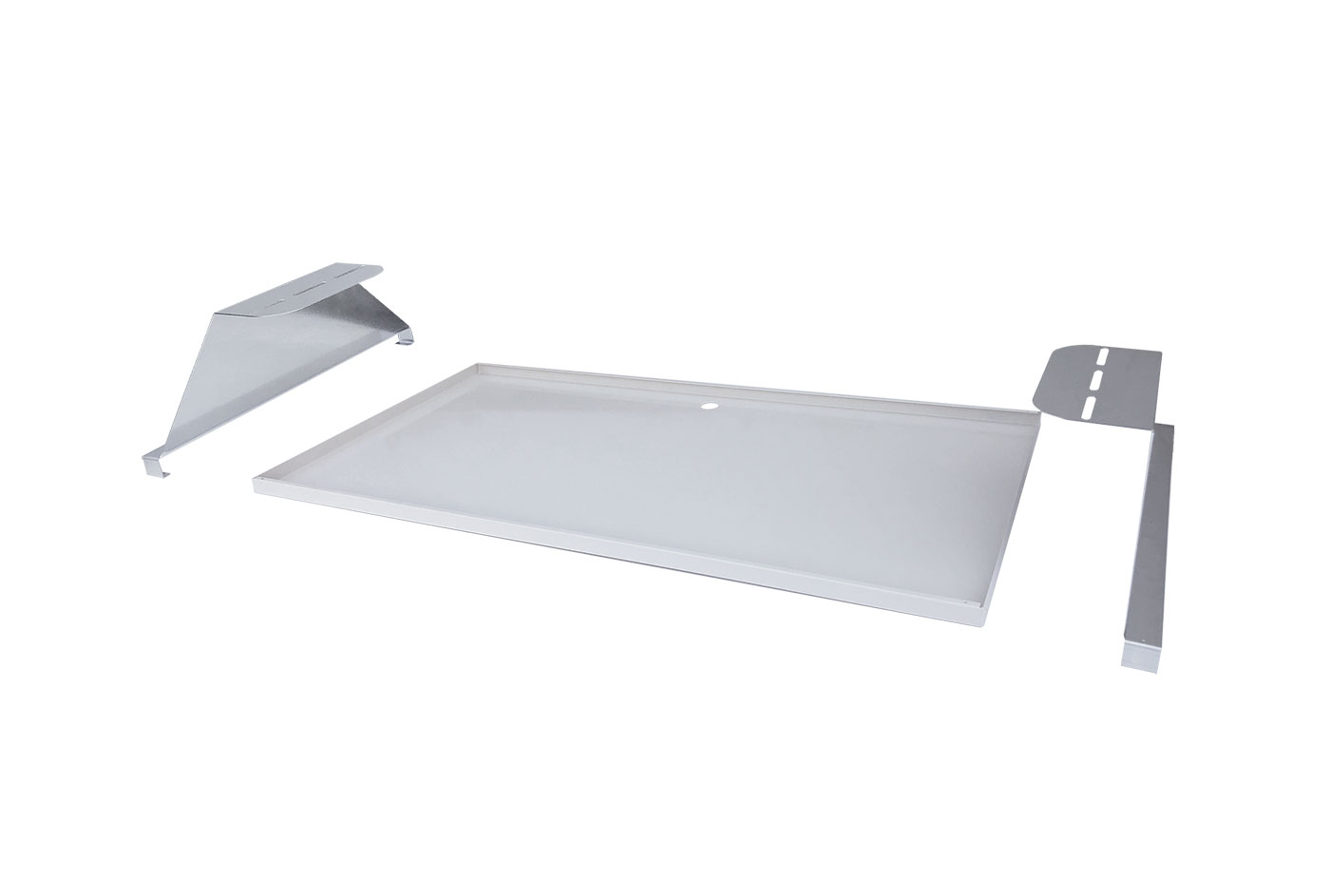

INDUSTRY Condensate drain pan

  • Smart Clima
  • Air conditioning
  • Heat pumps

TECHNICAL SPECIFICATIONS:

• Electrogalvanised sheet
• Outdoor polyester coating in ivory
• Coupling for condensate drain pipe Ø 16 mm
• For industrial TSE shelves

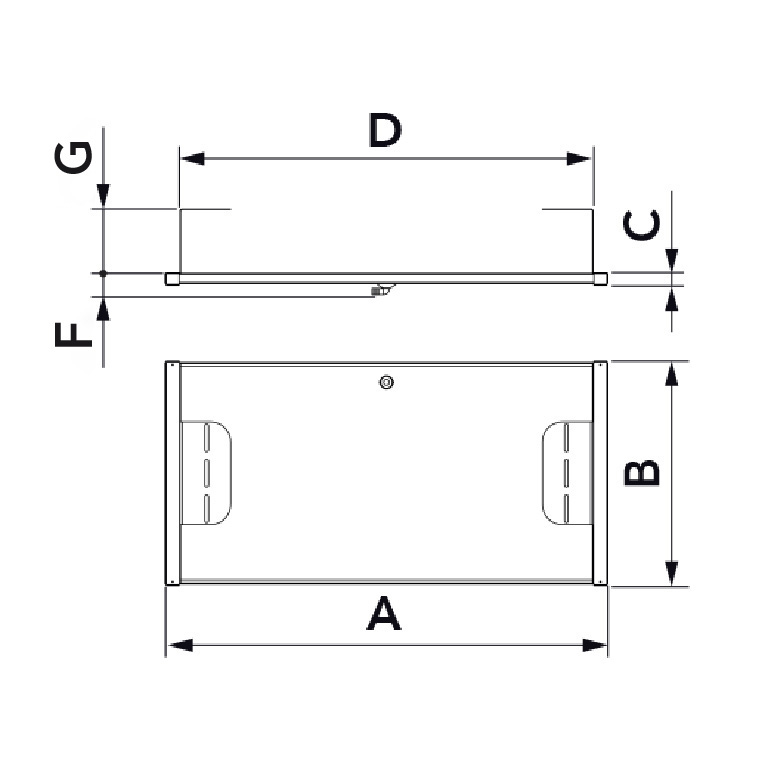

Models

Available Models (3)

SCD500031

"INDUSTRY 390" CONDENSATE TRAY

A [mm] 980
B [mm] 390
C [mm] 25
D [mm] 910 max.
F [mm] 52
G [mm] 160

SCD500032

"INDUSTRY 550" CONDENSATE TRAY

A [mm] 1100
B [mm] 550
C [mm] 25
D [mm] 1030 max.
F [mm] 52
G [mm] 160

SCD500033

"INDUSTRY 800" CONDENSATE TRAY

A [mm] 1180
B [mm] 760
C [mm] 25
D [mm] 1110 max.
F [mm] 52
G [mm] 160

Tailor-made solutions

Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.

Download

Documentation

Immagine IMG_SCD500031.jpg

  • Technical Data Sheet

    it en fr de

  • User Manual

    it en
