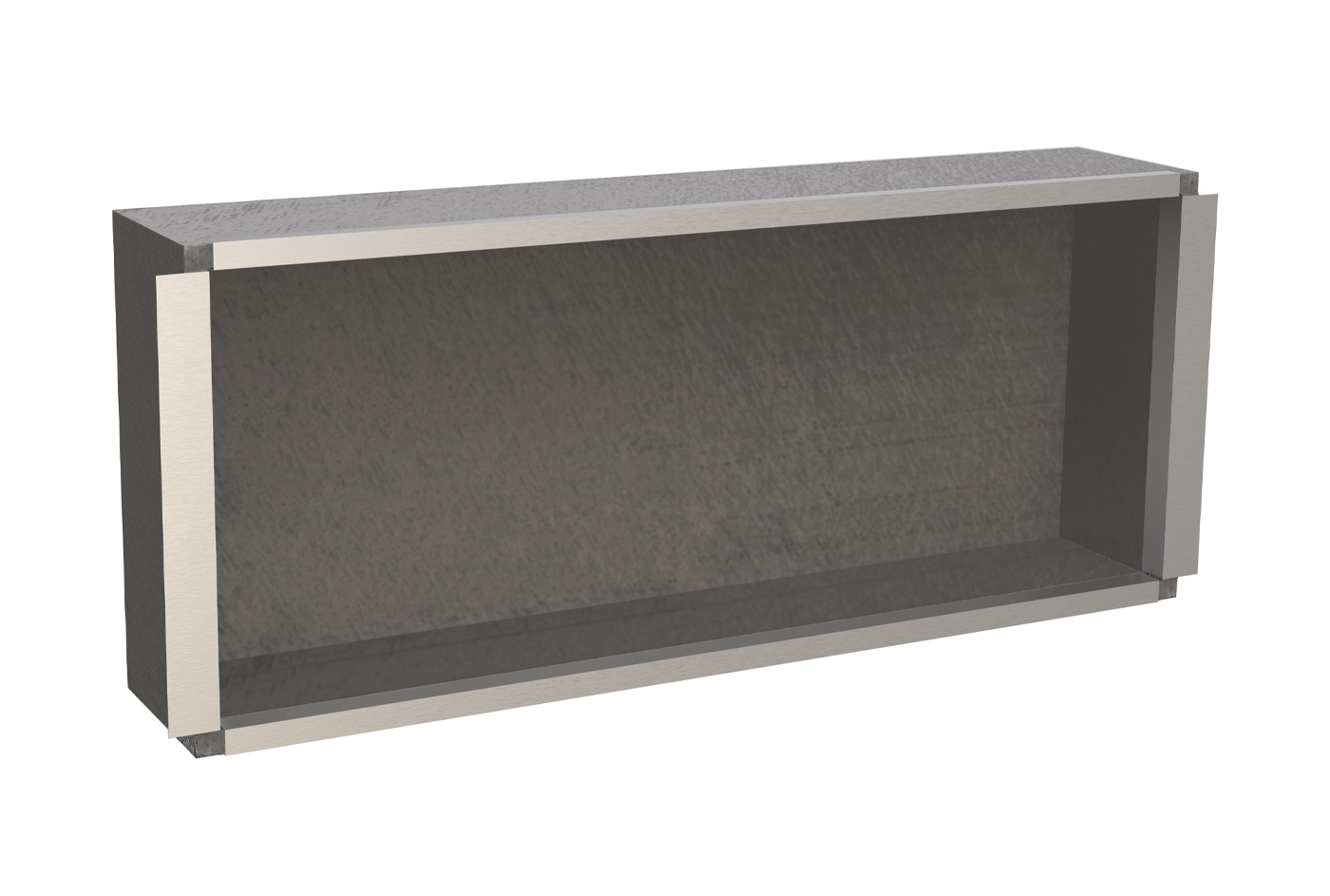

Intake plenum in PLA ready for filter

Project Wind
Air diffusion

TECHNICAL SPECIFICATIONS:

• Material: 80µ high quality aluminum foil, embossed and lacquered, insulated by a rigid polyisocyanurate foam (PIR)
• Thickness 20 mm
• Waterproof, highly heat-insulating
• Includes fastening flange to the internal unit
• Prepared with housing for 5mm thk filter ordered separately
• Filter 5 mm can be inspected from below
• Reaction to fire class: B-s3,d0

Models

Available Models (4)

PWD401710

PLÉNUM ARRANGED FOR FILTER INSERTION - INNER DIMS. L1000xH400xP180

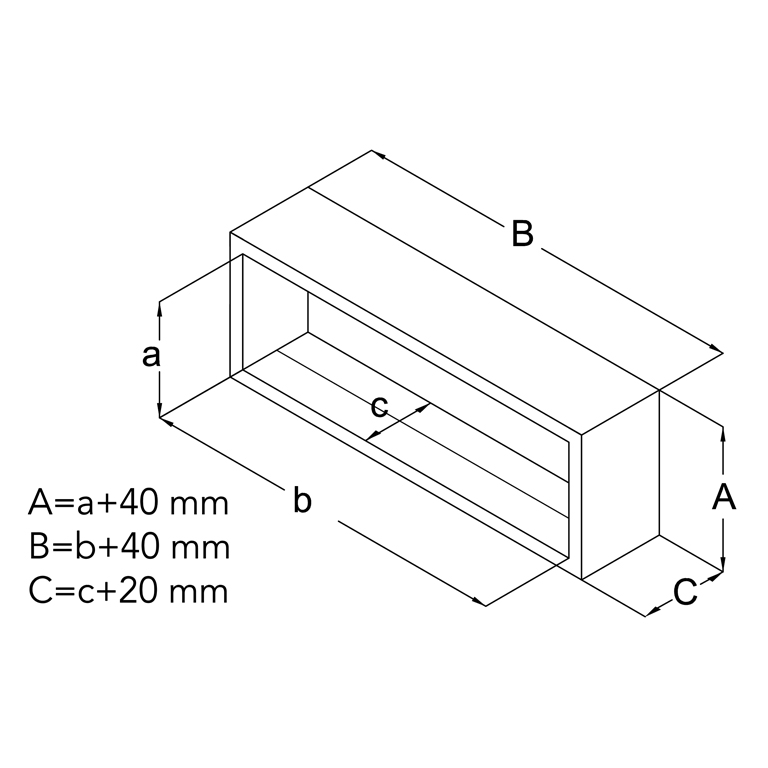

MODEL	mod. 1
A [mm]	≤400
B [mm]	≤1000
C [mm]	≤180

PWD401711

PLÉNUM ARRANGED FOR FILTER INSERTION - INNER DIMS. L1200xH400xP180

MODEL	mod. 2
A [mm]	≤400
B [mm]	≤1200
C [mm]	≤180

PWD401712

PLÉNUM ARRANGED FOR FILTER INSERTION - INNER DIMS. L1500xH400xP180

MODEL	mod. 3
A [mm]	≤400
B [mm]	≤1500
C [mm]	≤180

PWD401713

PLÉNUM ARRANGED FOR FILTER INSERTION - INNER DIMS. L1700xH400xP180

MODEL	mod. 4
A [mm]	≤400
B [mm]	≤1700
C [mm]	≤180
