Kit plenum polystyrene EOLO, EOLO MINI UNIVERSAL with manual adjustment damper

Project Wind
Air diffusion

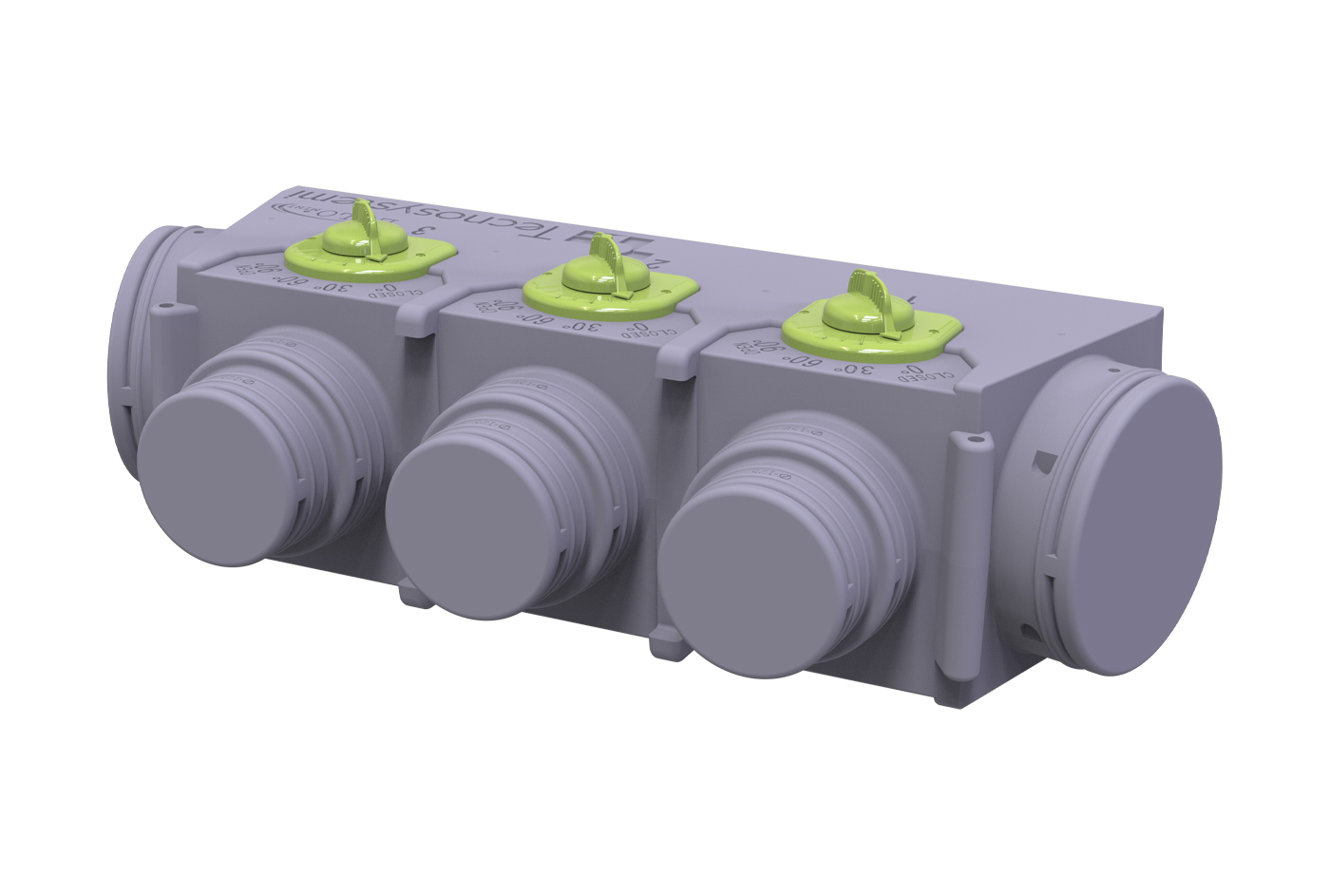

MINI EOLO: Model of polystyrene expanded sintered plenum with small dimensions and reduced dimensions. The realization of the plenum with anterior collars 150 / 125 has in fact greatly reduced its size.
EOLO: Modello di plenum in polistirene espanso sinterizzato per collarini ø 200 / 150.

TECHNICAL SPECIFICATIONS:

• Made of sintered expanded polystyrene
• With internal damper with external manual adjustment
• Prepared for future motorization (Galaxy catalogue systems)
• Thermal conductivity: 0.030 / 0.033 W/mK with respect to the EN 12667 / EN 12939 standard
• Resistance to vapour 40 / 70 µ in relation to EN 12086
• Operating temperature – 30°C / + 90°C
• Made of graphite-infused EPS material
• Water absorption % volume ≤5 in relation to EN 12087
• Reaction to fire class and according to EN 13501-1:2009
• Thermal performance thickness 30 mm 0.95 m2K/W
• Made of graphite-infused EPS material
• Collars integrated into plenum
• Total depth including collar 350 mm
• Machine fastening flange included
• Eolo mini:
Front collars Ø 125/150 mm – Side collars Ø 200 mm
• Eolo:
Front collars Ø 150/200 mm – Side collars Ø 200 mm

Models

Available Models (6)

PWD401715

PLENUM KIT EOLO MINI MOD.AM3 UNIVERSAL WITH MANUAL DAMPER

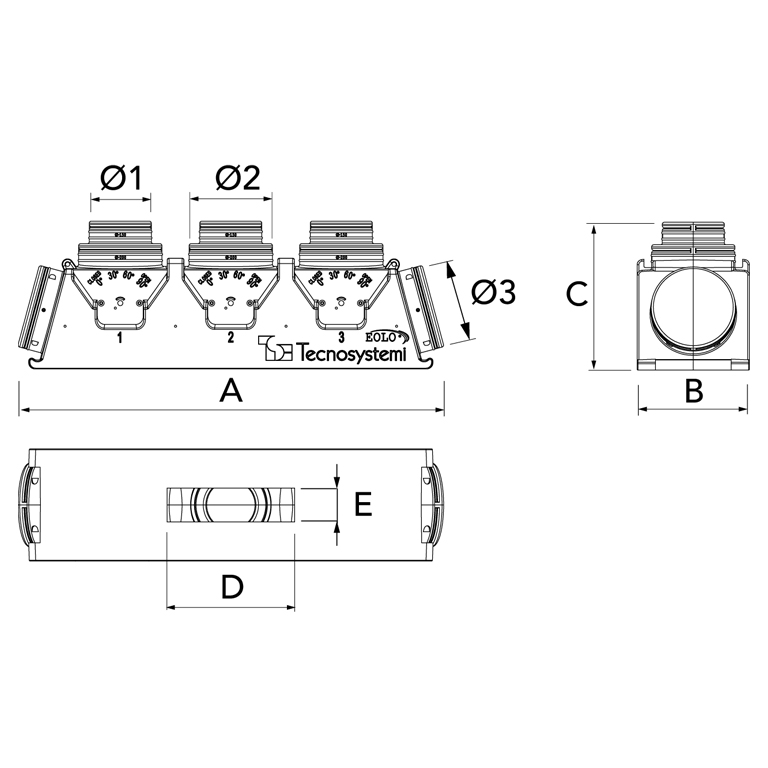

DIMENSION A [mm]	818
DIMENSION B [mm]	217
DIMENSION C [mm]	346
DIMENSION D [mm]	up to 600
DIMENSION E [mm]	up to 185
N° Ø 1 [mm]	No.3 Ø 125
N° Ø 2 [mm]	No.3 Ø 150
N° Ø 3 [mm]	N°2 Ø 200

PWD401716

PLENUM KIT EOLO MINI MOD.BM4 UNIVERSAL WITH MANUAL DAMPER

DIMENSION A [mm]	1008
DIMENSION B [mm]	217
DIMENSION C [mm]	346
DIMENSION D [mm]	up to 795
DIMENSION E [mm]	up to 185
N° Ø 1 [mm]	No.4 Ø 125
N° Ø 2 [mm]	No.4 Ø 150
N° Ø 3 [mm]	N°2 Ø 200

PWD401717

PLENUM KIT MOD.E2 UNIVERSAL WITH MANUAL DAMPER

DIMENSION A [mm]	741
DIMENSION B [mm]	244
DIMENSION C [mm]	348
DIMENSION D [mm]	up to 550
DIMENSION E [mm]	up to 215
N° Ø 1 [mm]	No. 2 Ø 150
N° Ø 2 [mm]	N°2 Ø 200
N° Ø 3 [mm]	N°2 Ø 200

PWD401718

PLENUM KIT MOD.A3 UNIVERSAL WITH MANUAL DAMPER

DIMENSION A [mm]	1000
DIMENSION B [mm]	264
DIMENSION C [mm]	348
DIMENSION D [mm]	up to 800
DIMENSION E [mm]	up to 215
N° Ø 1 [mm]	No.3 Ø 150
N° Ø 2 [mm]	No.3 Ø 200
N° Ø 3 [mm]	N°2 Ø 200

PWD401719

PLENUM KIT MOD.B4 UNIVERSAL WITH MANUAL DAMPER

DIMENSION A [mm]	1261
DIMENSION B [mm]	284
DIMENSION C [mm]	348
DIMENSION D [mm]	up to 1060
DIMENSION E [mm]	up to 235
N° Ø 1 [mm]	No.4 Ø 150
N° Ø 2 [mm]	No.4 Ø 200
N° Ø 3 [mm]	N°2 Ø 200

PWD401720

PLENUM KIT MOD.C5 UNIVERSAL WITH MANUAL DAMPER

DIMENSION A [mm]	1520
DIMENSION B [mm]	304
DIMENSION C [mm]	348
DIMENSION D [mm]	up to 1300
DIMENSION E [mm]	up to 245
N° Ø 1 [mm]	N°5 Ø 150
N° Ø 2 [mm]	No.5 Ø 200
N° Ø 3 [mm]	N°2 Ø 200
