KMF Flexible sleeve kit - EXC

Smart Clima
Air conditioning

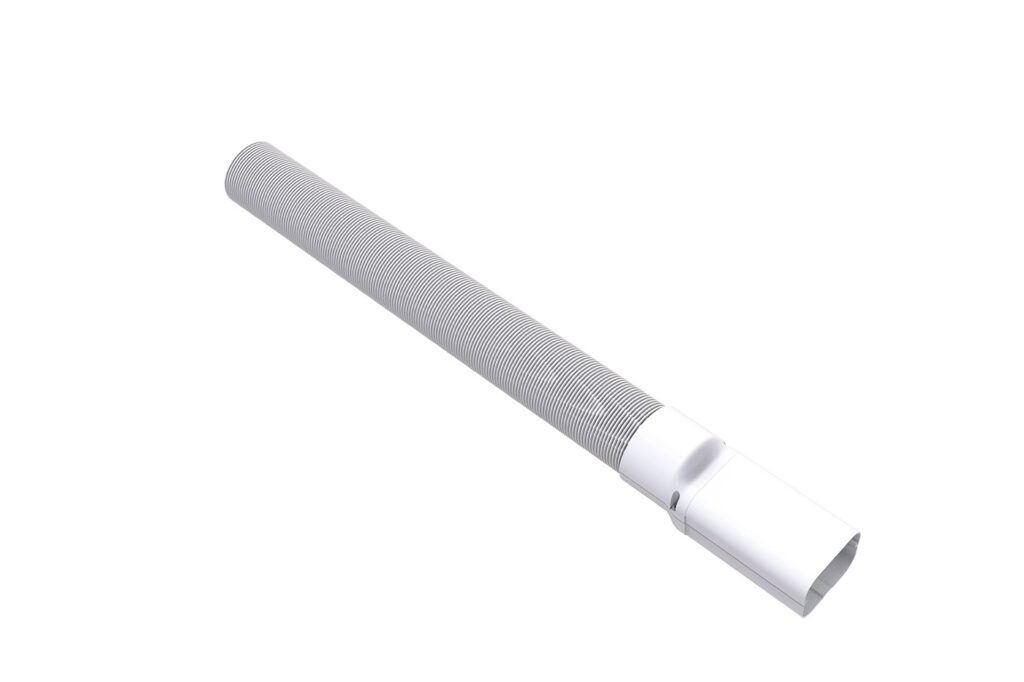

The sleeve kit is made of PVC and consists of a sleeve plus approximately 70 cm of 60 or 80 mm hose.
The sleeve allows EXCELLENS trunking and flexible hose to be connected to each other.

TECHNICAL SPECIFICATIONS:

• Impact-resistant and UV-resistant plastic material
• Made of 2 interlocking pieces
• Outer flange hole cover
• High finish for holes from Ø 60 to Ø 80 mm
• Heat shrink barcode packaging
KIT 70 CONSISTING OF:
• N°1 Manicotto flesibile modello MGF 72
• 1 flexible hose, 700 mm long – 60 mm internal diameter
• Available in the following colours: white, grey, black
KIT 100 CONSISTING OF:
• N°1 Manicotto flesibile modello MGF 100
• 1 flexible hose, 700 mm long – 80 mm internal diameter
• Available in the following colours: white, grey, black

Models

Available Models (6)

SCD100566

KMF - KIT MADE OF EXCELLENS FLEXIBLE SLEEVE MGF 72-EXC WHITE + FLEXIBLE HOSE 70 TO PROTECT PIPES - INNER Diam. 60 mm - KFM 72-WHITE

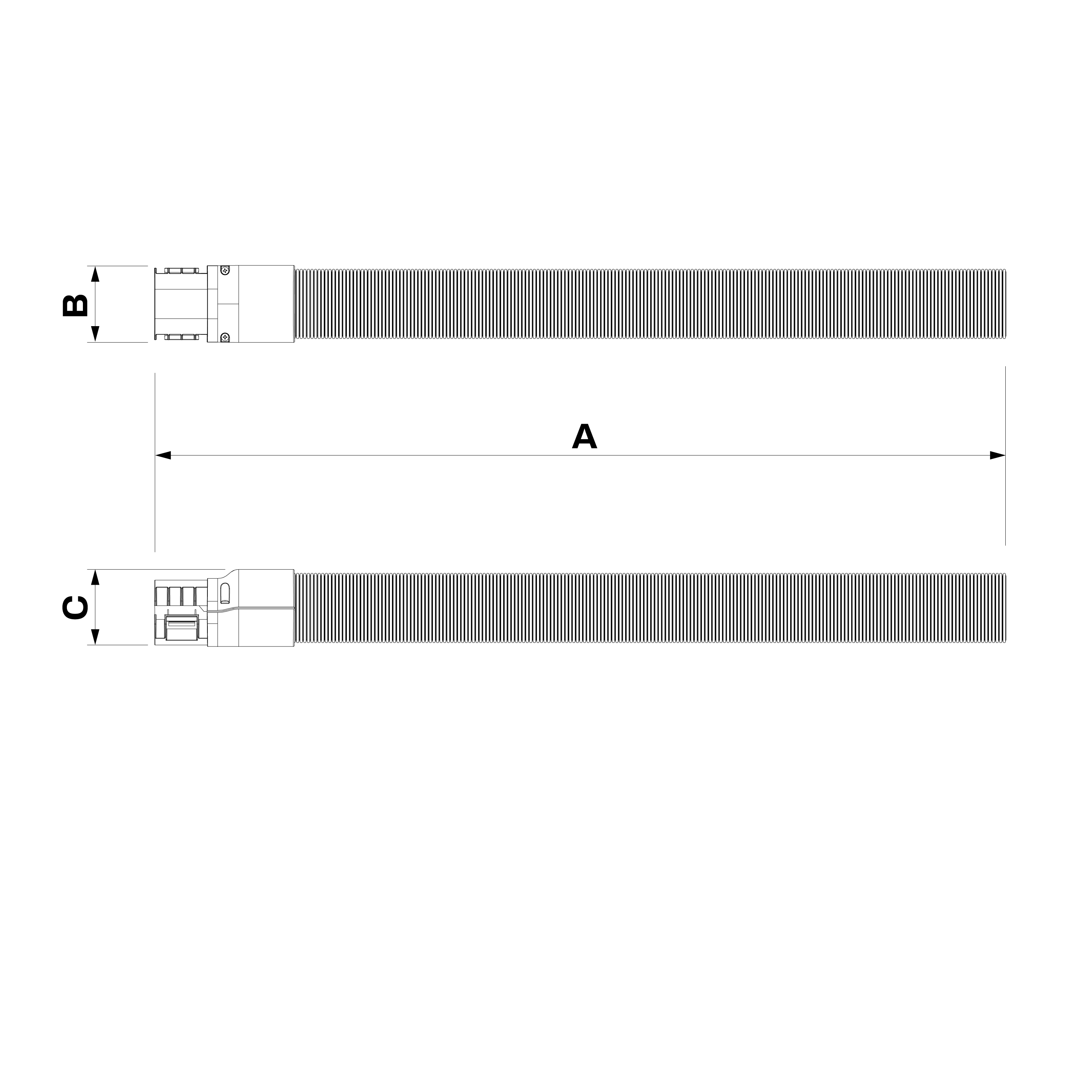

MODEL	KMF EXC 60 W
A [mm]	805
B [mm]	72
C [mm]	73

SCD100567

KMF - KIT MADE OF EXCELLENS FLEXIBLE SLEEVE MGF 72-EXC BLACK + FLEXIBLE HOSE 70 TO PROTECT PIPES - INNER Diam. 60 mm - KFM 72-BLACK

MODEL	KMF EXC 60 B
A [mm]	805
B [mm]	72
C [mm]	73

SCD100568

KMF - KIT MADE OF EXCELLENS FLEXIBLE SLEEVE MGF 72-EXC GREY + FLEXIBLE HOSE 70 TO PROTECT PIPES - INNER Diam. 60 mm - KFM 72-GREY

MODEL	KMF EXC 60 G
A [mm]	805
B [mm]	72
C [mm]	73

SCD100569

KMF - KIT MADE OF EXCELLENS FLEXIBLE SLEEVE MGF 100-EXC WHITE + FLEXIBLE HOSE 100 TO PROTECT PIPES - INNER Diam. 80 mm - KFM 100-WHITE

MODEL	KMF EXC 80 W
A [mm]	820
B [mm]	97
C [mm]	96

SCD100570

KMF - KIT MADE OF EXCELLENS FLEXIBLE SLEEVE MGF 100-EXC BLACK + FLEXIBLE HOSE 100 TO PROTECT PIPES - INNER Diam. 80 mm - KFM 100-BLACK

MODEL	KMF EXC 80 B
A [mm]	820
B [mm]	97
C [mm]	96

SCD100571

KMF - KIT MADE OF EXCELLENS FLEXIBLE SLEEVE MGF 100-EXC GREY + FLEXIBLE HOSE 100 TO PROTECT PIPES - INNER Diam. 80 mm - KFM 100-GREY

MODEL	KMF EXC 80 G
A [mm]	820
B [mm]	97
C [mm]	96
