KRQ Square aesthetic rosette kit with flexible hose and external unit connection fitting in anti-UV rubber

Smart Clima
Air conditioning

The kit consists of a wall terminal with the new square flange, approximately 700 mm of flexible hose Ø60 or Ø80 mm, and a rubber connector.

TECHNICAL SPECIFICATIONS:

• Impact-resistant and UV-resistant plastic material
• Made of 3 interlocking pieces
• Outer flange hole cover
• High finish for holes from Ø 60 to Ø 80 mm
• Heat shrink barcode packaging
• Paintable with light-colored paints

OPERATING TEMPERATURE

• Operating temperature -20°C / +60°C
• Coloured operating temperature -20°C / +75°C

Models

Available Models (6)

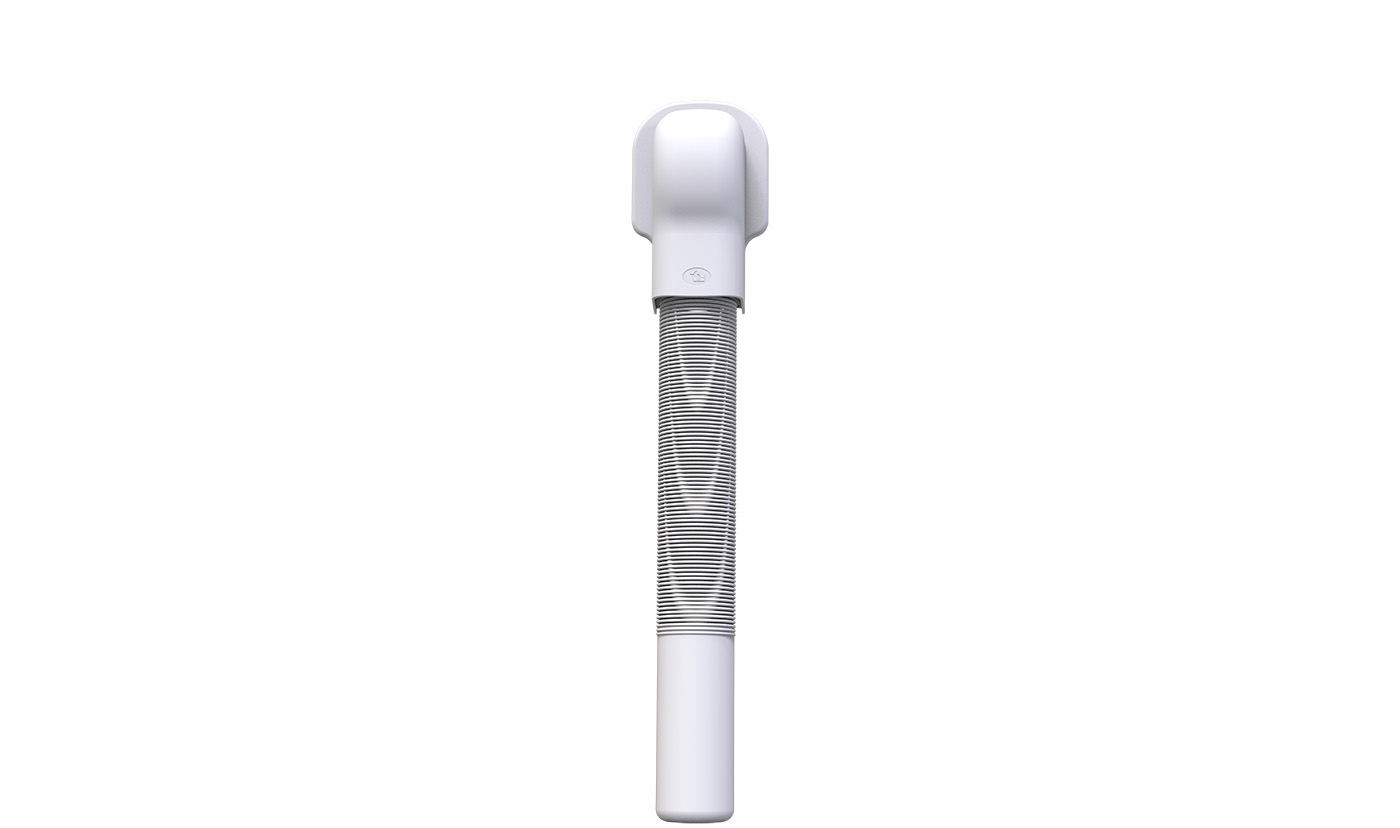

SCD100548

KRQ - KIT MADE OF SQUARE ROSETTE + FLEXIBLE HOSE 70 TO PROTECT PIPES - INNER Diam. 60 mm + RUBBER CONNECTION FITTING FOR OUTDOOR UNIT, Diam. 60 mm - WHITE

MODEL	KRQ - 60 WHITE
A [mm]	64
B [mm]	78
C [mm]	960
D [mm]	118
E [mm]	95
F [mm]	190
Ø [mm]	60

SCD100549

KRQ - KIT MADE OF SQUARE ROSETTE + FLEXIBLE HOSE 70 TO PROTECT PIPES - INNER Diam. 60 mm + RUBBER CONNECTION FITTING FOR OUTDOOR UNIT, Diam. 60 mm - BLACK

MODEL	KRQ - 60 BLACK
A [mm]	64
B [mm]	78
C [mm]	960
D [mm]	118
E [mm]	95
F [mm]	190
Ø [mm]	60

SCD100550

KRQ - KIT MADE OF SQUARE ROSETTE + FLEXIBLE HOSE 70 TO PROTECT PIPES - INNER Diam. 60 mm + RUBBER CONNECTION FITTING FOR OUTDOOR UNIT, Diam. 60 mm - GREY

MODEL	KRQ - 60 GREY
A [mm]	64
B [mm]	78
C [mm]	960
D [mm]	118
E [mm]	95
F [mm]	190
Ø [mm]	60

SCD100554

KRQ - KIT MADE OF SQUARE ROSETTE + FLEXIBLE HOSE 100 TO PROTECT PIPES - INNER Diam. 80 mm + RUBBER CONNECTION FITTING FOR OUTDOOR UNIT, Diam. 80 mm - WHITE

MODEL	KRQ - 80 WHITE
A [mm]	84
B [mm]	100
C [mm]	990
D [mm]	146
E [mm]	116
F [mm]	222
Ø [mm]	80

SCD100555

KRQ - KIT MADE OF SQUARE ROSETTE + FLEXIBLE HOSE 100 TO PROTECT PIPES - INNER Diam. 80 mm + RUBBER CONNECTION FITTING FOR OUTDOOR UNIT, Diam. 80 mm - BLACK

MODEL	KRQ - 80 BLACK
A [mm]	84
B [mm]	100
C [mm]	990
D [mm]	146
E [mm]	116
F [mm]	222
Ø [mm]	80

SCD100556

KRQ - KIT MADE OF SQUARE ROSETTE + FLEXIBLE HOSE 100 TO PROTECT PIPES - INNER Diam. 80 mm + RUBBER CONNECTION FITTING FOR OUTDOOR UNIT, Diam. 80 mm - GREY
