View documentation

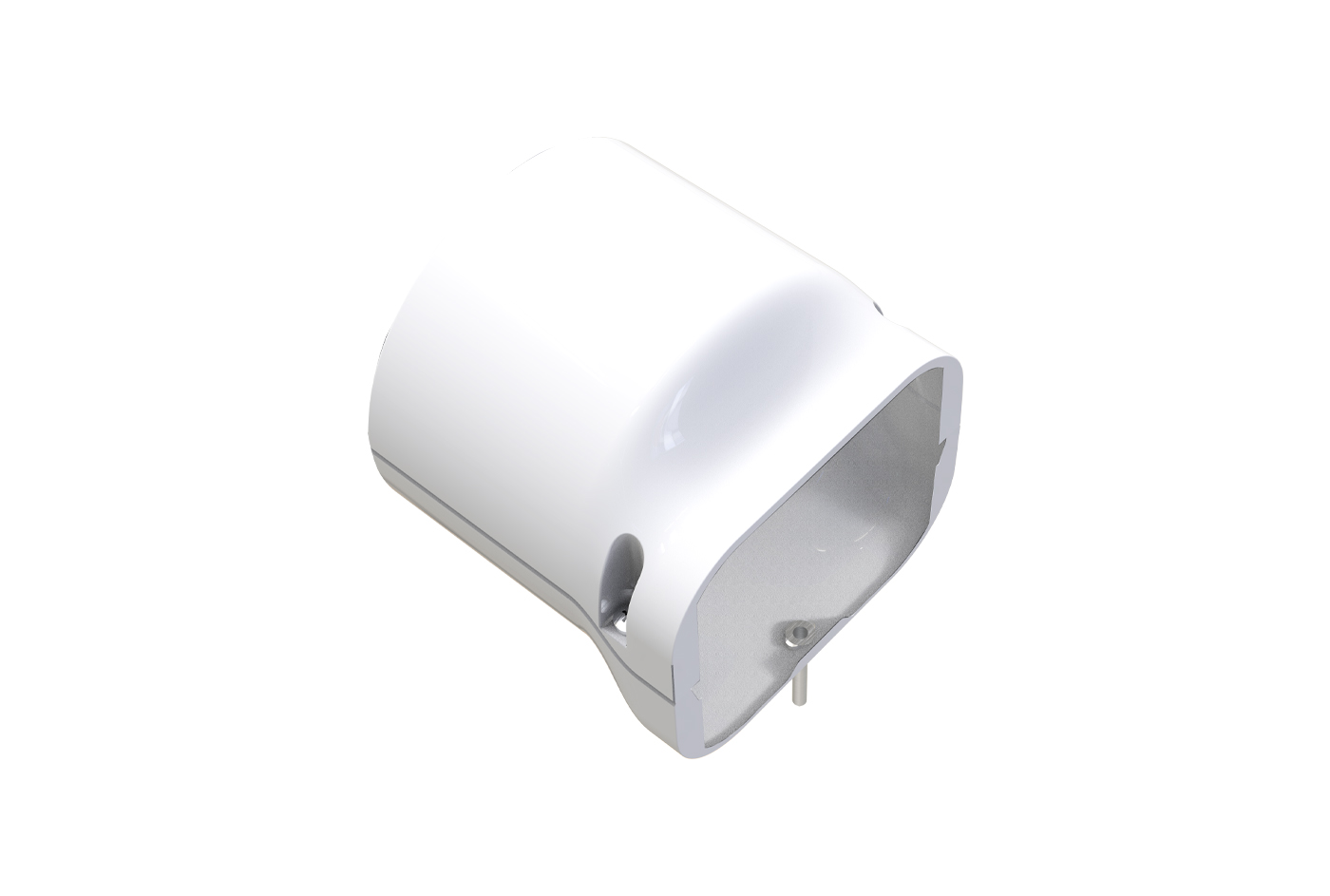

MGF Flexible sleeve - EXC

Smart Clima
Air conditioning

The sleeve is made of PVC.
The sleeve is made with a transverse opening so that it can be installed when the connection pipes to the external units are already connected.
The sleeve allows EXCELLENS ducts and flexible hose to be connected to each other.

TECHNICAL SPECIFICATIONS:

• Stiff, shockproof, anti-UVA and recyclable PVC
• Ideal for holes from Ø 60 to Ø 80 mm
• Suitable for mixed diversified applications

Models

Available Models (6)

SCD100584

MGF - CONNECTION SLEEVE FOR EXCELLENS EXCELLENS MGF 72-EXC PVC WHITE - MGF 72-WHITE

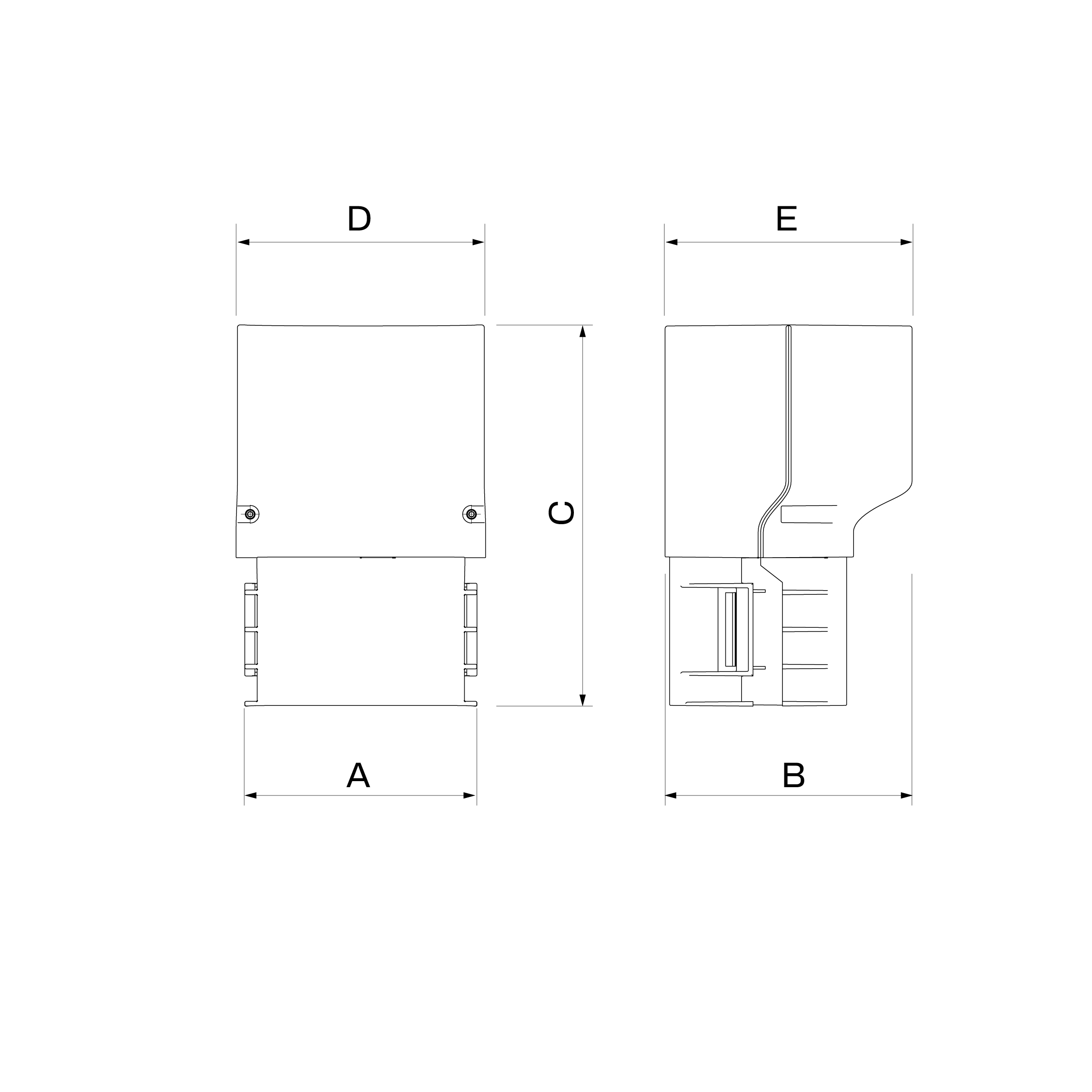

MODEL	MGF 60 WHITE
A [mm]	68
B [mm]	61
C [mm]	133
D [mm]	73
E [mm]	73

SCD100585

MGF - CONNECTION SLEEVE FOR EXCELLENS EXCELLENS MGF 72-EXC PVC BLACK - MGF 72-BLACK

MODEL	MGF 60 BLACK
A [mm]	68
B [mm]	61
C [mm]	133
D [mm]	73
E [mm]	73

SCD100586

MGF - CONNECTION SLEEVE FOR EXCELLENS EXCELLENS MGF 72-EXC PVC GREY - MGF 72-GREY

MODEL	MGF 60 GREY
A [mm]	68
B [mm]	61
C [mm]	133
D [mm]	73
E [mm]	73

SCD100587

MGF - CONNECTION SLEEVE FOR EXCELLENS EXCELLENS MGF 100-EXC PVC WHITE - MGF 100-WHITE

MODEL	MGF 80 WHITE
A [mm]	91
B [mm]	69
C [mm]	149
D [mm]	96
E [mm]	96

SCD100588

MGF - CONNECTION SLEEVE FOR EXCELLENS EXCELLENS MGF 100-EXC PVC BLACK - MGF 100-BLACK

MODEL	MGF 80 BLACK
A [mm]	91
B [mm]	69
C [mm]	149
D [mm]	96
E [mm]	96

SCD100589

MGF - CONNECTION SLEEVE FOR EXCELLENS EXCELLENS MGF 100-EXC PVC GREY - MGF 100-GREY

MODEL	MGF 80 GREY
A [mm]	91
B [mm]	69
C [mm]	149
D [mm]	96
E [mm]	96

Download

Documentation

Technical Data Sheet
