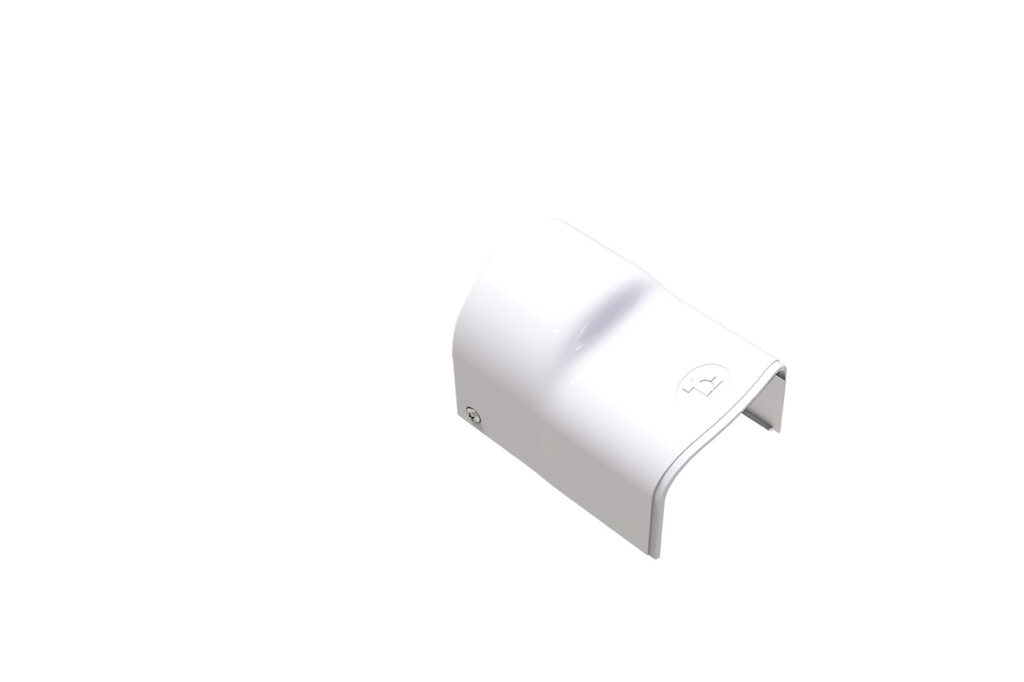

MGFO Flexible sleeve for Optima duct

Smart Clima
Air conditioning

The sleeve is made of PVC and can be used with 60 or 80 mm flexible hose.
The sleeve is made with a transverse opening so that it can be installed when the connection pipes to the external units are already connected, in order to cover damaged pipes at the level of the external insulating sheath.
The sleeve allows OPTIMA ducts and flexible hose to be connected to each other.

TECHNICAL SPECIFICATIONS:

• Stiff, shockproof, anti-UVA and recyclable PVC
• Made of 2 interlocking pieces
• Outer flange hole cover
• High finish for holes from Ø 60 to Ø 80 mm
• Heat shrink barcode packaging
• Operating temperature -20°C / +60°C

Models

Available Models (6)

SCD100590

MGF - CONNECTION SLEEVE FOR OPTIMA MGF 75-OPT PVC WHITE - MGF75-OPT

MODEL	MGFO 60 WHITE
A [mm]	78
B [mm]	58
C [mm]	108
D [mm]	77
E [mm]	72

SCD100591

MGF - CONNECTION SLEEVE FOR OPTIMA MGF 75-OPT PVC BLACK - MGF75-OPT

MODEL	MGFO 60 BLACK
A [mm]	78
B [mm]	58
C [mm]	108
D [mm]	77
E [mm]	72

SCD100592

MGF - CONNECTION SLEEVE FOR OPTIMA MGF 75-OPT PVC GREY - MGF75-OPT

MODEL	MGFO 60 GREY
A [mm]	78
B [mm]	58
C [mm]	108
D [mm]	77
E [mm]	72

SCD100593

MGF - CONNECTION SLEEVE FOR OPTIMA MGF 102-OPT PVC WHITE - MGF102-OPT

MODEL	MGFO 80 WHITE
A [mm]	102
B [mm]	71
C [mm]	116
D [mm]	102
E [mm]	95

SCD100594

MGF - CONNECTION SLEEVE FOR OPTIMA MGF 102-OPT PVC BLACK - MGF102-OPT

MODEL	MGFO 80 BLACK
A [mm]	102
B [mm]	71
C [mm]	116
D [mm]	102
E [mm]	95

SCD100595

MGF - CONNECTION SLEEVE FOR OPTIMA MGF 102-OPT PVC GREY - MGF102-OPT

MODEL	MGFO 80 GREY
A [mm]	102
B [mm]	71
C [mm]	116
D [mm]	102
E [mm]	95
