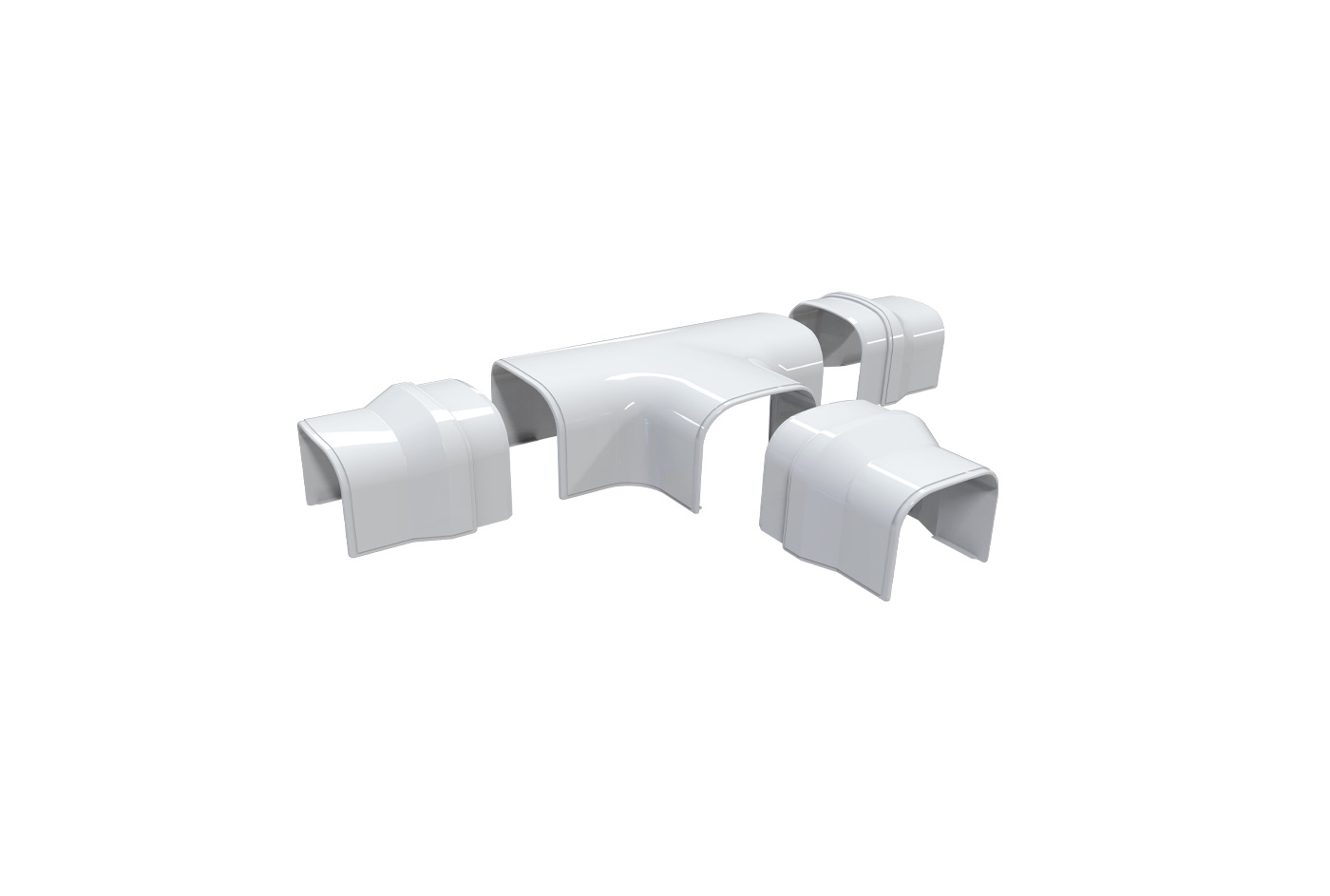

OPTIMA DT "T" shunt

Smart Clima
Air conditioning
Heat pumps

Certifications

TECHNICAL SPECIFICATIONS:

• High impact resistance plastic, recyclable
• Innovative design
• Ultra-fast interlocking fastening system
• Extremely high outer finish
• Allows a wide bending radius of tubes
• Heat shrink barcode packaging
• Paintable with light-colored paints
• Operating temperature -20°C / +60°C
• Coloured operating temperature -20°C / +75°C

Models

Available Models (10)

11106031

“OPTIMA DT” LINE T-BRANCH - WHITE - DT62-OPT

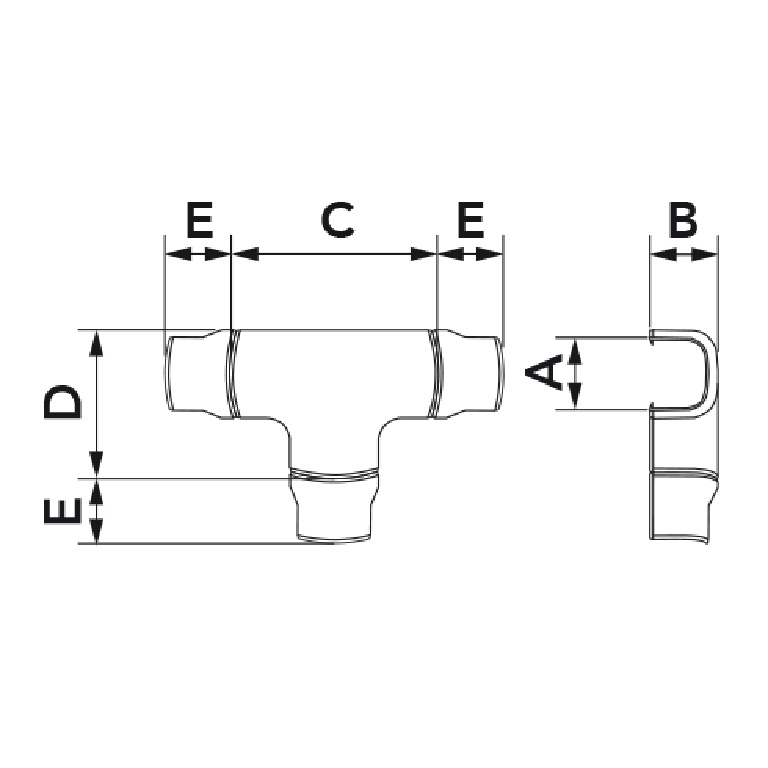

MODEL	DT 62 - OPT W
A [mm]	66
B [mm]	48
C [mm]	180
D [mm]	130
E [mm]	60

11106032

“OPTIMA DT” LINE T-BRANCH - WHITE - DT75-OPT

MODEL	DT 75 - OPT W
A [mm]	78
B [mm]	58
C [mm]	180
D [mm]	130
E [mm]	--

11106033

“OPTIMA DT” LINE T-BRANCH - WHITE - DT102-OPT

MODEL	DT 102 - OPT W
A [mm]	104
B [mm]	68
C [mm]	210
D [mm]	160
E [mm]	--

SCD100118

“OPTIMA DT” LINE T-BRANCH - WHITE - DT135-OPT

MODEL	DT 135 - OPT W
A [mm]	140
B [mm]	84
C [mm]	270
D [mm]	205
E [mm]	--

SCD100437

“OPTIMA DT” LINE T-BRANCH - ANTHRACITE GREY - DT75-OPT

MODEL	DT 75 - OPT G
A [mm]	78
B [mm]	58
C [mm]	180
D [mm]	130
E [mm]	--

SCD100438

“OPTIMA DT” LINE T-BRANCH - ANTHRACITE GREY - DT102-OPT

MODEL	DT 102 - OPT G
A [mm]	104
B [mm]	68
C [mm]	210
D [mm]	160
E [mm]	--

SCD100439

“OPTIMA DT” LINE T-BRANCH - ANTHRACITE GREY - DT135-OPT

MODEL	DT 135 - OPT G
A [mm]	140
B [mm]	84
C [mm]	270
D [mm]	205
E [mm]	--

SCD100395

“OPTIMA DT” LINE T-BRANCH - BLACK - DT75-OPT - DT75-OPT

MODEL	DT 75 - OPT B
A [mm]	78
B [mm]	58
C [mm]	180
D [mm]	130
E [mm]	--

SCD100396

“OPTIMA DT” LINE T-BRANCH - BLACK - DT102-OPT - DT102-OPT

MODEL	DT 102 - OPT B
A [mm]	104
B [mm]	68
C [mm]	210
D [mm]	160
E [mm]	--

SCD100397

“OPTIMA DT” LINE T-BRANCH - BLACK - DT135-OPT - DT135-OPT

MODEL	DT 135 - OPT B
A [mm]	140
B [mm]	84
C [mm]	270
D [mm]	205
E [mm]	--
