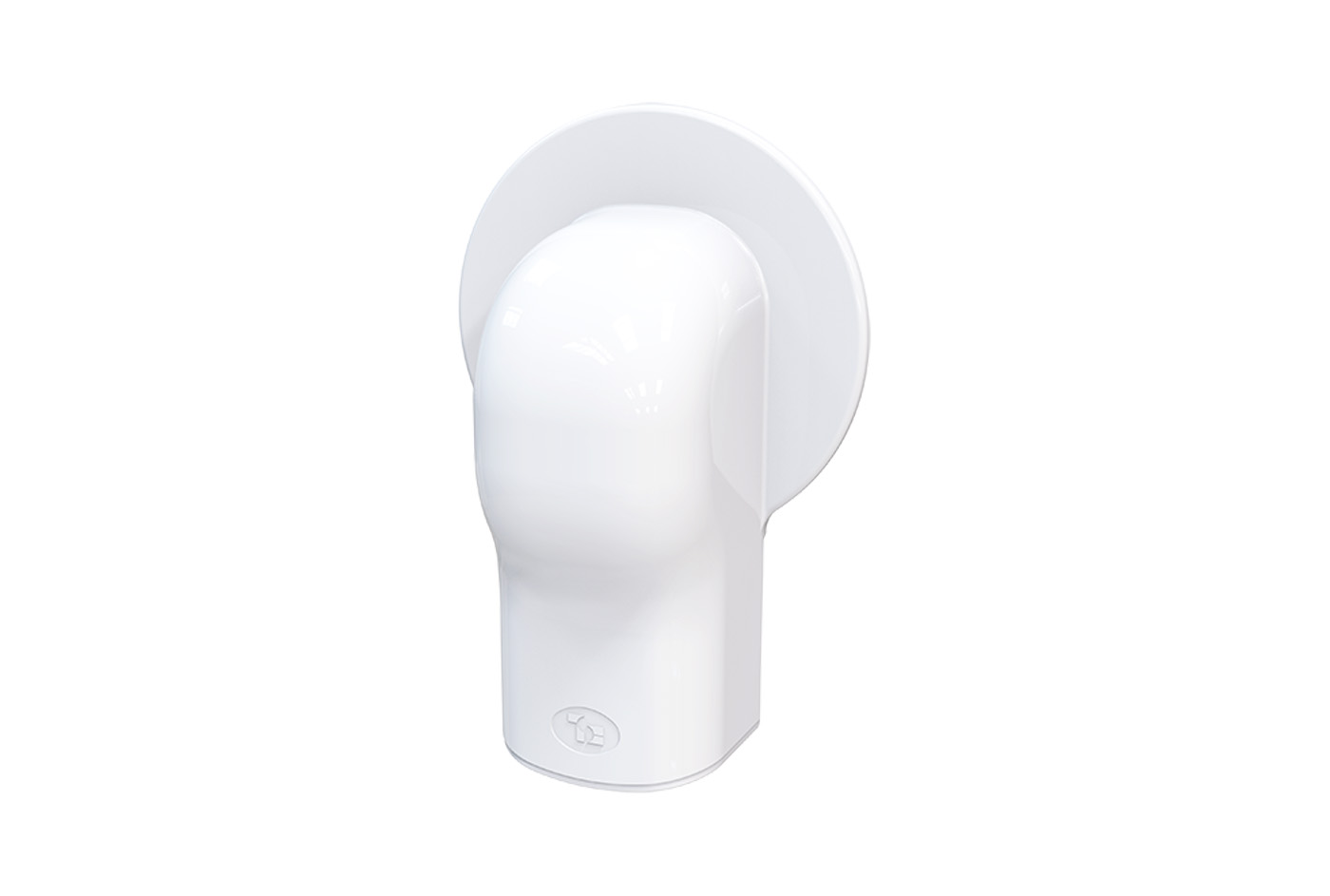

OPTIMA TMR Flanged round wall terminal

Smart Clima
Air conditioning
Heat pumps

Certifications

TECHNICAL SPECIFICATIONS:

• High impact resistance plastic, recyclable
• Innovative design
• Ultra-fast interlocking fastening system
• Extremely high outer finish
• Large round external flange for installation cover hole
• Outer contouring to facilitate pipe bends
• Reference marks for possible wall mounting using screws (not included)
• Shrink-wrapped packaging with barcode
• Paintable with light-colored paints
• Operating temperature -20°C / + 60°C
• Coloured operating temperature -20°C / +75°C

Models

Available Models (10)

SCD100244

"OPTIMA TMR" ROUND WALL COVER - WHITE - TMR62-OPT

MODEL	TMR OPT 62 W
A [mm]	63
B [mm]	48
C [mm]	176
D [mm]	120
E [mm]	62

SCD100245

"OPTIMA TMR" ROUND WALL COVER - WHITE - TMR75-OPT

MODEL	TMR OPT 75 W
A [mm]	77
B [mm]	58
C [mm]	207
D [mm]	140
E [mm]	75

SCD100246

"OPTIMA TMR" ROUND WALL COVER - WHITE - TMR102-OPT

MODEL	TMR OPT 102 W
A [mm]	100
B [mm]	67
C [mm]	237
D [mm]	170
E [mm]	85

SCD100247

"OPTIMA TMR" ROUND WALL COVER - WHITE - TMR135-OPT

MODEL	TMR OPT 135 W
A [mm]	135
B [mm]	84
C [mm]	277
D [mm]	212
E [mm]	100

SCD100253

"OPTIMA TMR" ROUND WALL COVER - GREY - TMR75-OPT

MODEL	TMR OPT 75 G
A [mm]	77
B [mm]	58
C [mm]	207
D [mm]	140
E [mm]	75

SCD100254

"OPTIMA TMR" ROUND WALL COVER - GREY - TMR102-OPT

MODEL	TMR OPT 102 G
A [mm]	100
B [mm]	67
C [mm]	237
D [mm]	170
E [mm]	85

SCD100255

"OPTIMA TMR" ROUND WALL COVER - GREY - TMR135-OPT

MODEL	TMR OPT 135 G
A [mm]	135
B [mm]	84
C [mm]	277
D [mm]	212
E [mm]	100

SCD100266

"OPTIMA TMR" ROUND WALL COVER - BLACK - TMR75-OPT

MODEL	TMR OPT 75 B
A [mm]	77
B [mm]	58
C [mm]	207
D [mm]	140
E [mm]	75

SCD100267

"OPTIMA TMR" ROUND WALL COVER - BLACK - TMR102-OPT

MODEL	TMR OPT 102 B
A [mm]	100
B [mm]	67
C [mm]	237
D [mm]	170
E [mm]	85

SCD100268

"OPTIMA TMR" ROUND WALL COVER - BLACK - TMR135-OPT

MODEL	TMR OPT 135 B
A [mm]	135
B [mm]	84
C [mm]	277
D [mm]	212
E [mm]	100
