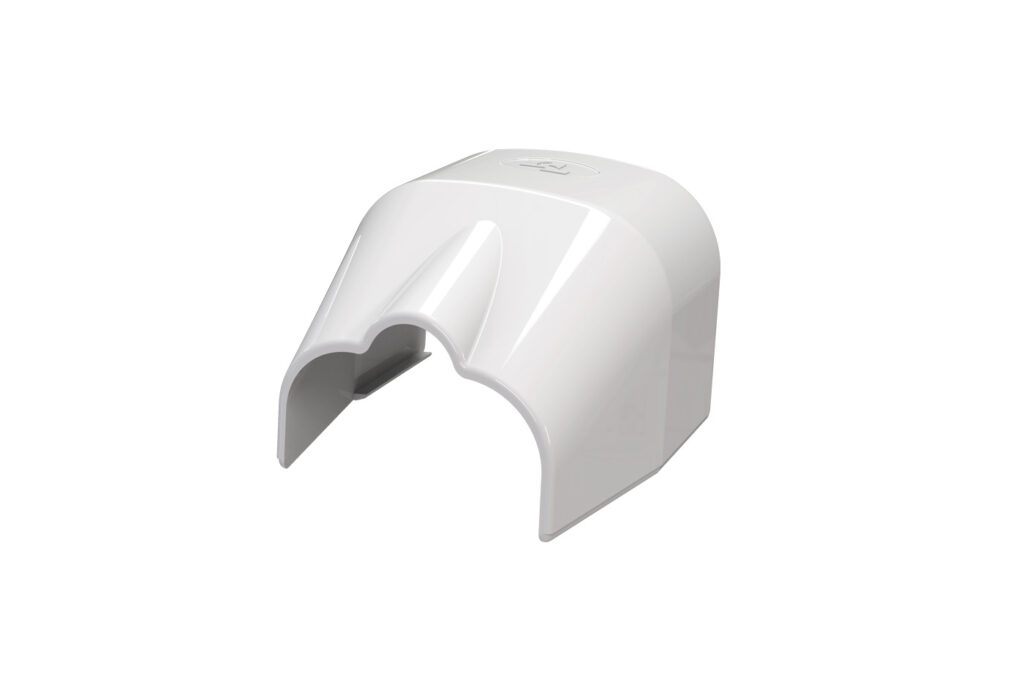

OPTIMA TS CLEAN Pipe outlet terminal, white CLEAN

Smart Clima
Air conditioning
Heat pumps

TECHNICAL SPECIFICATIONS:

• Rigid shockproof PVC, anti-UVA, white, can be recycled
• Innovative design
• Ultra-fast interlocking fastening system
• Extremely high outer finish
• Heat shrink barcode packaging
• Paintable with light-colored paints
• Operating temperature -20°C / +60°C

Models

Available Models (3)

SCD100530

“OPTIMA TS” LINE PIPE OUTLET END FITTING - TS62-OPT - OPT CLEAN

MODEL	TS 62 - OPT CLEAN
A [mm]	66
B [mm]	48
C [mm]	76
D [mm]	30
E [mm]	50

SCD100531

“OPTIMA TS” LINE PIPE OUTLET END FITTING - TS75-OPT - OPT CLEAN

MODEL	TS 75 - OPT CLEAN
A [mm]	78
B [mm]	58
C [mm]	90
D [mm]	30
E [mm]	56

SCD100532

“OPTIMA TS” LINE PIPE OUTLET END FITTING - TS102-OPT - OPT CLEAN

MODEL	TS 102 - OPT CLEAN
A [mm]	104
B [mm]	68
C [mm]	110
D [mm]	40
E [mm]	72
