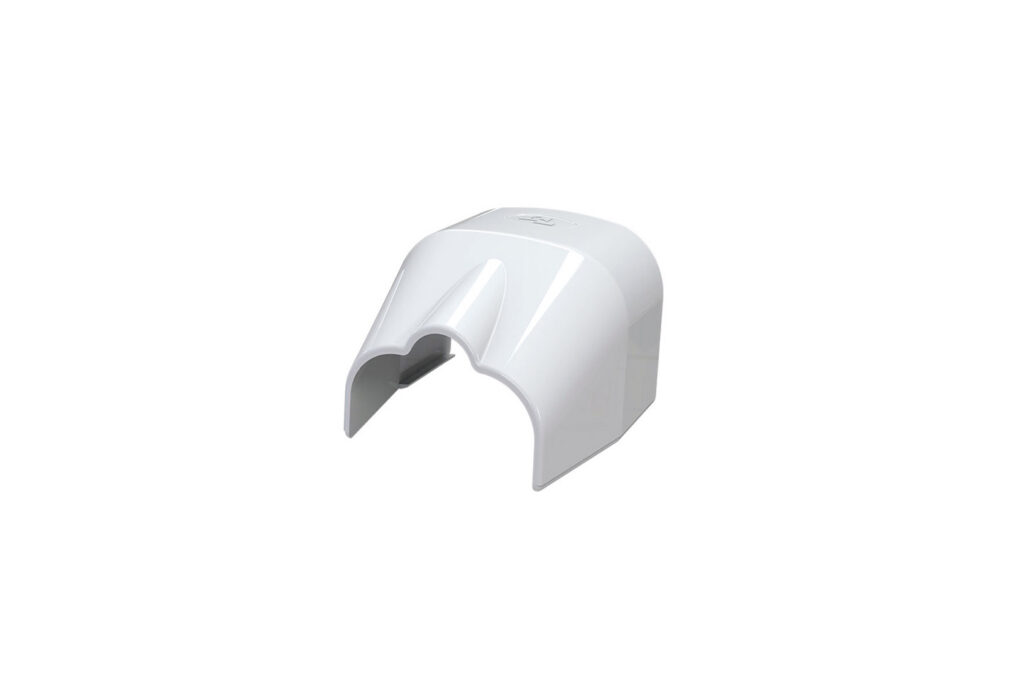

OPTIMA TS Pipe output terminal

Smart Clima
Air conditioning
Heat pumps

Certifications

TECHNICAL SPECIFICATIONS:

• High impact resistance plastic, recyclable
• Innovative design
• Ultra-fast interlocking fastening system
• Extremely high outer finish
• Heat shrink barcode packaging
• Paintable with light-colored paints
• Operating temperature -20°C / +60°C
• Coloured operating temperature -20°C / +75°C

Models

Available Models (7)

11106035

“OPTIMA TS” LINE PIPE OUTLET END FITTING - WHITE - TS62-OPT

MODEL	TS 62 - OPT W
A [mm]	66
B [mm]	48
C [mm]	76
D [mm]	30
E [mm]	50

11106036

“OPTIMA TS” LINE PIPE OUTLET END FITTING - WHITE - TS75-OPT

MODEL	TS 75 - OPT W
A [mm]	78
B [mm]	58
C [mm]	90
D [mm]	30
E [mm]	56

11106037

“OPTIMA TS” LINE PIPE OUTLET END FITTING - WHITE - TS102-OPT

MODEL	TS 102 - OPT W
A [mm]	104
B [mm]	68
C [mm]	110
D [mm]	40
E [mm]	72

SCD100440

“OPTIMA TS” LINE PIPE OUTLET END FITTING - ANTHRACITE GREY - TS75-OPT

MODEL	TS 75 - OPT G
A [mm]	78
B [mm]	58
C [mm]	90
D [mm]	30
E [mm]	56

SCD100441

“OPTIMA TS” LINE PIPE OUTLET END FITTING - ANTHRACITE GREY - TS102-OPT

MODEL	TS 102 - OPT G
A [mm]	104
B [mm]	68
C [mm]	110
D [mm]	40
E [mm]	72

SCD100393

“OPTIMA TS” LINE PIPE OUTLET END FITTING - BLACK - TS75-OPT - TS75-OPT

MODEL	TS 75 - OPT B
A [mm]	78
B [mm]	58
C [mm]	90
D [mm]	30
E [mm]	56

SCD100394

“OPTIMA TS” LINE PIPE OUTLET END FITTING - BLACK - TS102-OPT - TS102-OPT

MODEL	TS 102 - OPT B
A [mm]	104
B [mm]	68
C [mm]	110
D [mm]	40
E [mm]	72
