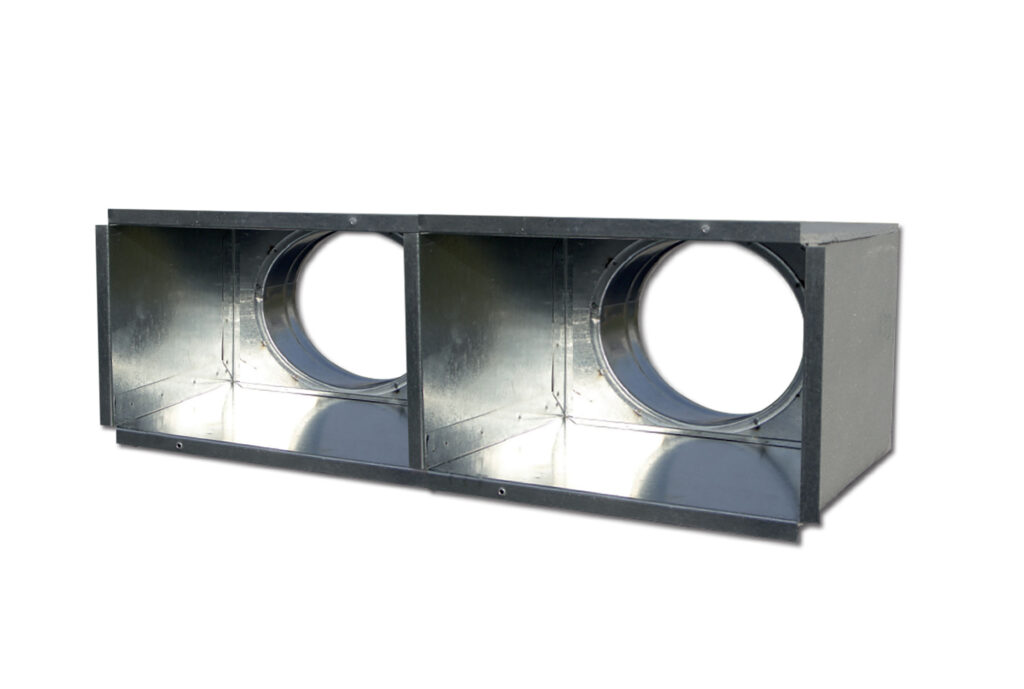

Plenum divided by double delivery and return grille

Project Wind
Air diffusion

The plenums are made of galvanised metal sheet and externally insulated with 3 mm thick closed-cell polyethylene.
Available on request.

TECHNICAL SPECIFICATIONS:

• Made of electro-galvanised metal sheet
• External insulation: thickness 3 mm
• Equipped with two rear collars
• Available on request

Models

Available Models (8)

11175400

PLÉNUM BOX DIVIDED FOR DOUBLE SUPPLY/RETURN AIR GRILLE 432x182mm

FOR GRILLES [mm]	432 x 182
EXTERNAL PLENUM AxB [mm]	410 x 160
PLENUM COLL. Ø [mm]	CIR.2 x 100/125/150
PLENUM DEPTH P [mm]	160
PLENUM COLLAR DEPTH Pc [mm]	142

11175410

PLÉNUM BOX DIVIDED FOR DOUBLE SUPPLY/RETURN AIR GRILLE 432x232mm

FOR GRILLES [mm]	432 x 232
EXTERNAL PLENUM AxB [mm]	410 x 210
PLENUM COLL. Ø [mm]	CIR.2 x 100/125/150
PLENUM DEPTH P [mm]	160
PLENUM COLLAR DEPTH Pc [mm]	142

11175420

PLÉNUM BOX DIVIDED FOR DOUBLE SUPPLY/RETURN AIR GRILLE 632x182mm

FOR GRILLES [mm]	632 x 182
EXTERNAL PLENUM AxB [mm]	610 x 160
PLENUM COLL. Ø [mm]	CIR.2 x 100/125/150
PLENUM DEPTH P [mm]	160
PLENUM COLLAR DEPTH Pc [mm]	142

11175430

PLÉNUM BOX DIVIDED FOR DOUBLE SUPPLY/RETURN AIR GRILLE 632x232mm

FOR GRILLES [mm]	632 x 232
EXTERNAL PLENUM AxB [mm]	610 x 210
PLENUM COLL. Ø [mm]	CIR.2 x 150/200
PLENUM DEPTH P [mm]	160
PLENUM COLLAR DEPTH Pc [mm]	100

11175440

PLÉNUM BOX DIVIDED FOR DOUBLE SUPPLY/RETURN AIR GRILLE 832x182mm

FOR GRILLES [mm]	832 x 182
EXTERNAL PLENUM AxB [mm]	810 x 160
PLENUM COLL. Ø [mm]	CIR.2 x 100/125/150
PLENUM DEPTH P [mm]	160
PLENUM COLLAR DEPTH Pc [mm]	142

11175450

PLÉNUM BOX DIVIDED FOR DOUBLE SUPPLY/RETURN AIR GRILLE 832x232mm

FOR GRILLES [mm]	832 x 232
EXTERNAL PLENUM AxB [mm]	810 x 210
PLENUM COLL. Ø [mm]	CIR.2 x 150/200
PLENUM DEPTH P [mm]	160
PLENUM COLLAR DEPTH Pc [mm]	100

11175460

PLÉNUM BOX DIVIDED FOR DOUBLE SUPPLY/RETURN AIR GRILLE 1032x182mm

FOR GRILLES [mm]	1032 x 182
EXTERNAL PLENUM AxB [mm]	1010 x 160
PLENUM COLL. Ø [mm]	CIR.2x 100/125/150
PLENUM DEPTH P [mm]	160
PLENUM COLLAR DEPTH Pc [mm]	142

11175470

PLÉNUM BOX DIVIDED FOR DOUBLE SUPPLY/RETURN AIR GRILLE 1032x232mm

FOR GRILLES [mm]	1032 x 232
EXTERNAL PLENUM AxB [mm]	1010 x 210
PLENUM COLL. Ø [mm]	CIR.2x 150/200
PLENUM DEPTH P [mm]	160
PLENUM COLLAR DEPTH Pc [mm]	100
