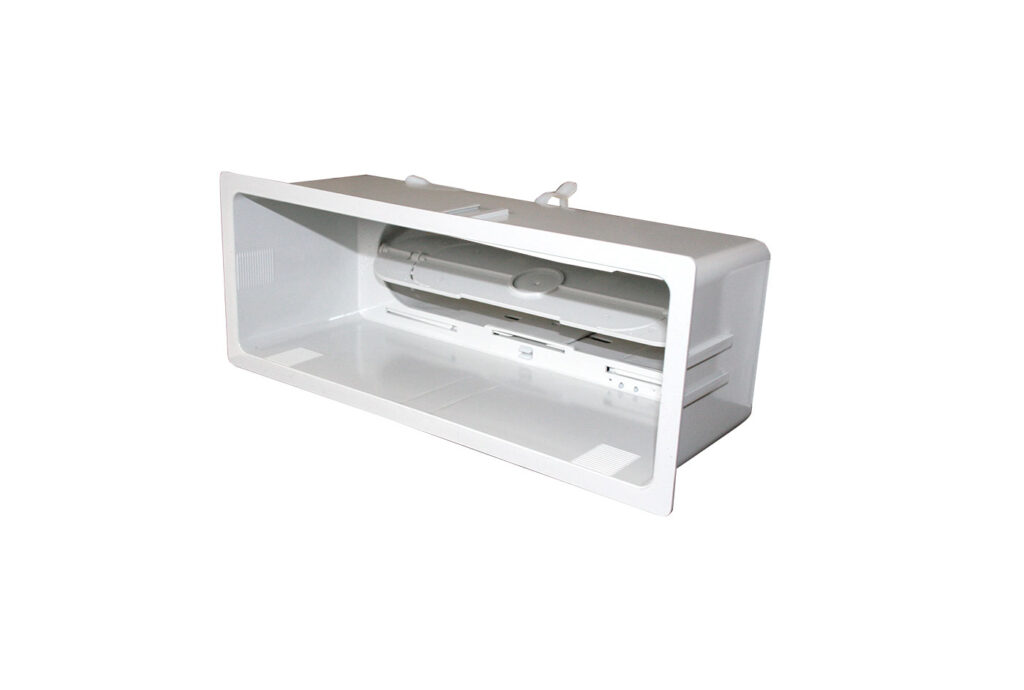

PPA Plenum in white ABS plastic anti-condensation

Project Wind
Air diffusion

TECHNICAL SPECIFICATIONS:

• Made of anti-condensation ABS
• Adjustable butterfly calibration damper
• Coupling between delivery grille and plenum with steel clips
• Telescopic rear collar for hoses of various diameters
• With calibration damper
• Hooks are included on the 4 outer sides where brackets to secure the plenum on plasterboard or PAL ducting can be installed

Models

Available Models (2)

PWC400013

PLENUM WITH REAR COLLAR FOR ABS NOZZLE - 500x150

FOR GRILLES [mm]	533 x 183
PLENUM DIMENSIONS A1xB1 [mm]	152 x 501
PLENUM DIMENSIONS AxB [mm]	175 x 523
PLENUM DIMENSIONS H [mm]	160
PLENUM DIMENSIONS H1 [mm]	110
PLENUM DIMENSIONS H2 [mm]	50
COLLAR Ø [mm]	160 - 200 - 250

PWC400014

PLENUM WITH REAR COLLAR FOR ABS NOZZLE - 500x200

FOR GRILLES [mm]	633 x 233
PLENUM DIMENSIONS A1xB1 [mm]	202 x 501
PLENUM DIMENSIONS AxB [mm]	175 x 523
PLENUM DIMENSIONS H [mm]	160
PLENUM DIMENSIONS H1 [mm]	110
PLENUM DIMENSIONS H2 [mm]	50
COLLAR Ø [mm]	200 - 250
