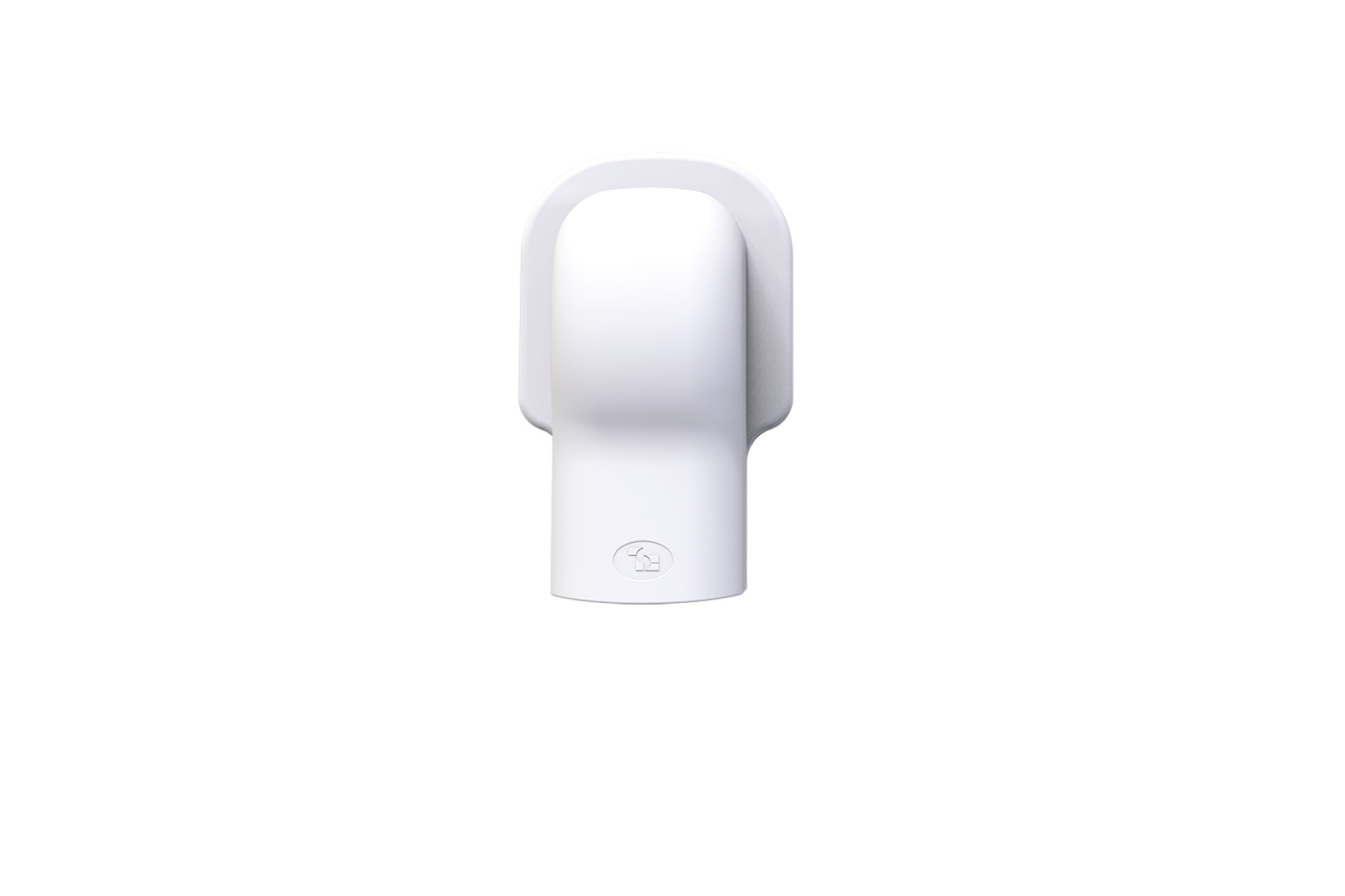

REQ Square rosette for flexible hose Ø 60/80 mm

Smart Clima
Air conditioning

Wall-mounted terminal with new square flange suitable for the square terminal kit with flexible hose and external unit connection.

TECHNICAL SPECIFICATIONS:

• In high impact resistance plastic, recyclable
• Outer flange hole cover
• High finish for holes from Ø 60 to Ø 80 mm
• Heat shrink barcode packaging
• Operating temperature -20°C / +60°C
• Coloured operating temperature -20°C / +75°C

Models

Available Models (6)

SCD100572

REQ - SQUARE ROSETTE FOR FLEXIBLE PIPE 70 TO PROTECT PIPE - INNER Diam. 60 mm - WHITE

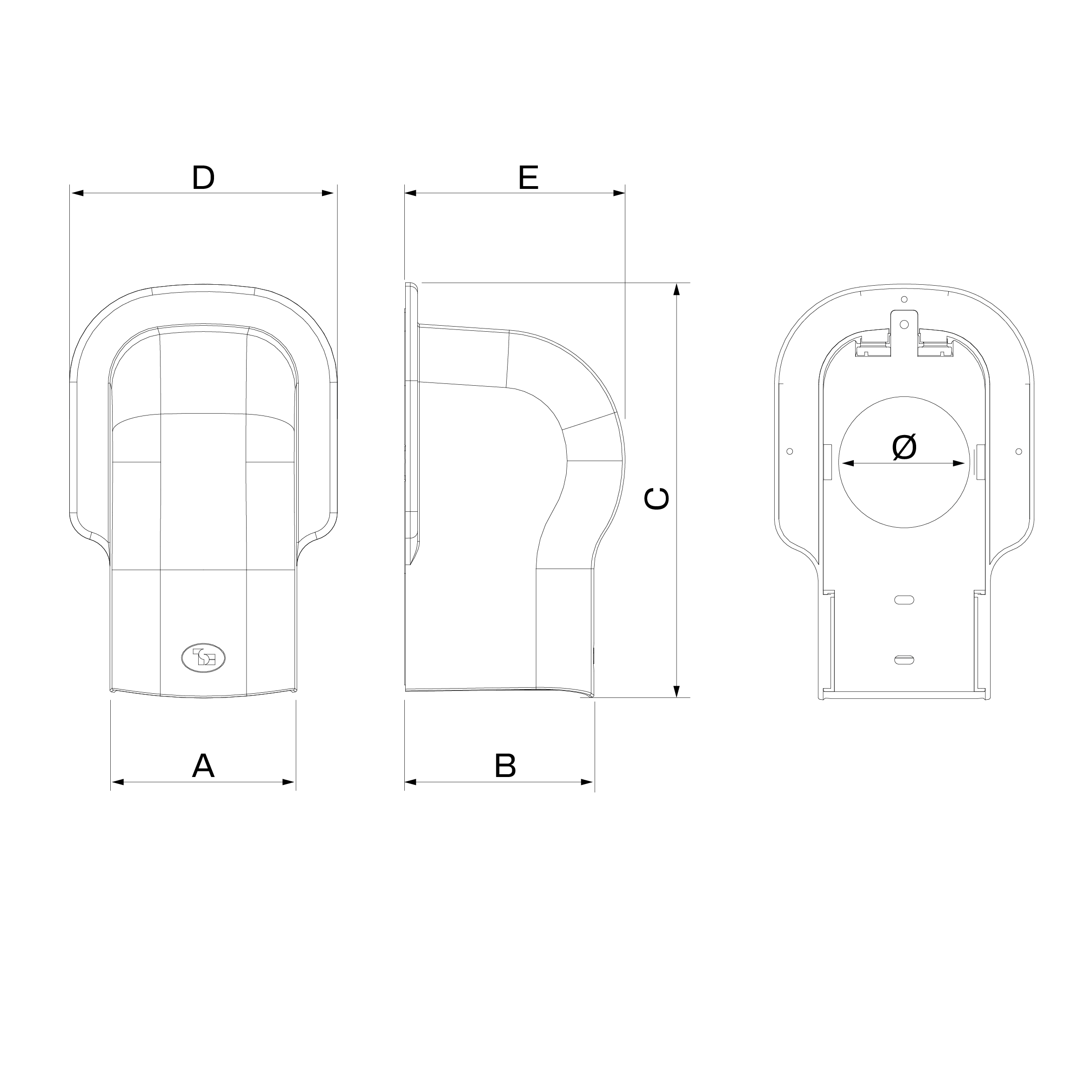

MODEL	REQ 60 WHITE
A [mm]	78
B [mm]	78
C [mm]	190
D [mm]	118
E [mm]	95
Ø [mm]	60

SCD100573

REQ - SQUARE ROSETTE FOR FLEXIBLE PIPE 70 TO PROTECT PIPE - INNER Diam. 60 mm - WHITE

MODEL	REQ 60 BLACK
A [mm]	78
B [mm]	78
C [mm]	190
D [mm]	118
E [mm]	95
Ø [mm]	60

SCD100574

REQ - SQUARE ROSETTE FOR FLEXIBLE PIPE 70 TO PROTECT PIPE - INNER Diam. 60 mm - WHITE

MODEL	REQ 60 GREY
A [mm]	78
B [mm]	78
C [mm]	190
D [mm]	118
E [mm]	95
Ø [mm]	60

SCD100578

REQ - SQUARE ROSETTE FOR FLEXIBLE PIPE 100 TO PROTECT PIPE - INNER Diam. 80 mm - WHITE

MODEL	REQ 80 WHITE
A [mm]	102
B [mm]	100
C [mm]	222
D [mm]	146
E [mm]	116
Ø [mm]	80

SCD100579

REQ - SQUARE ROSETTE FOR FLEXIBLE PIPE 100 TO PROTECT PIPE - INNER Diam. 80 mm - WHITE

MODEL	REQ 80 BLACK
A [mm]	102
B [mm]	100
C [mm]	222
D [mm]	146
E [mm]	116
Ø [mm]	80

SCD100580

REQ - SQUARE ROSETTE FOR FLEXIBLE PIPE 100 TO PROTECT PIPE - INNER Diam. 80 mm - GREY

MODEL	REQ 80 GREY
A [mm]	102
B [mm]	100
C [mm]	222
D [mm]	146
E [mm]	116
Ø [mm]	80
