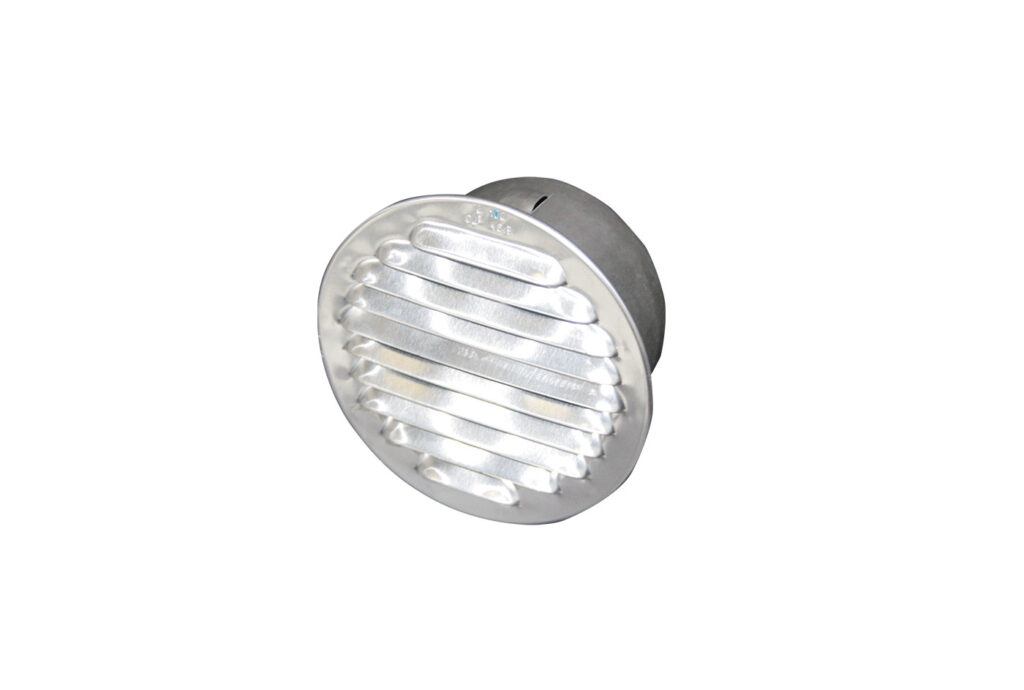

Round grille for flush-mounting in aluminium with mesh

Project Wind
Air diffusion

Models

Available Models (5)

11160420

RECESSED ALUMINIUM ROUND GRILLE Ø 110 WITH MESH

EXTERNAL Ø A [mm]	110
DEPTH B [mm]	55
INTERNAL Ø C [mm]	75
AIR PASSAGE [cm²]	29,41

11160425

RECESSED ALUMINIUM ROUND GRILLE Ø 125 WITH MESH

EXTERNAL Ø A [mm]	125
DEPTH B [mm]	55
INTERNAL Ø C [mm]	93
AIR PASSAGE [cm²]	37,28

11160430

RECESSED ALUMINIUM ROUND GRILLE Ø 145 WITH MESH

EXTERNAL Ø A [mm]	145
DEPTH B [mm]	55
INTERNAL Ø C [mm]	115
AIR PASSAGE [cm²]	56,39

11160435

RECESSED ALUMINIUM ROUND GRILLE Ø 170 WITH MESH

EXTERNAL Ø A [mm]	170
DEPTH B [mm]	55
INTERNAL Ø C [mm]	135
AIR PASSAGE [cm²]	77,56

11160440

RECESSED ALUMINIUM ROUND GRILLE Ø 220 WITH MESH

EXTERNAL Ø A [mm]	220
DEPTH B [mm]	55
INTERNAL Ø C [mm]	185
AIR PASSAGE [cm²]	150,23
