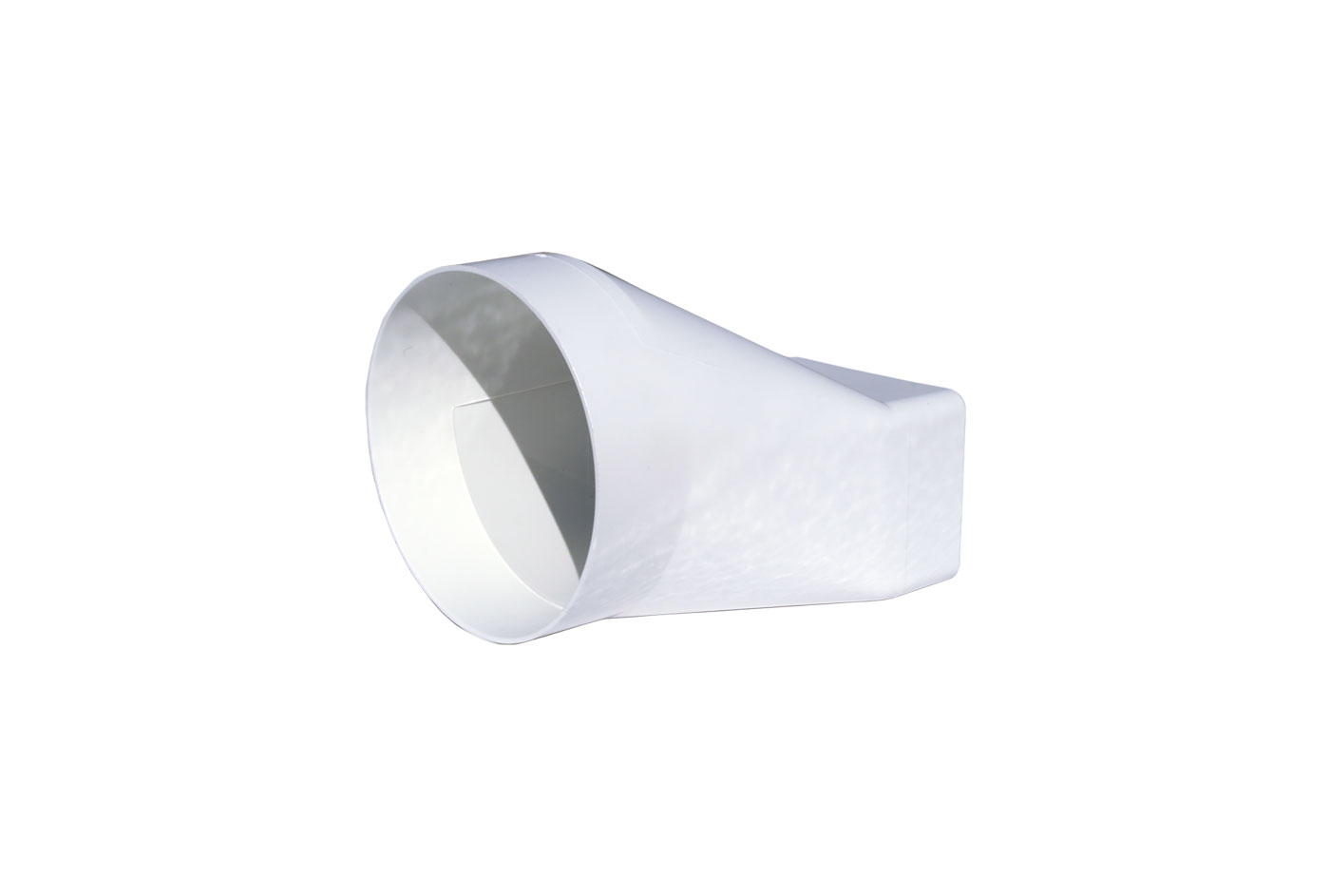

Immagine IMG_11161376.jpg

View documentation

RTQ Rectangular round reducer

Project Wind
Air diffusion

TECHNICAL SPECIFICATIONS:

• PVC
• Female coupling
• Allows transition from round to rectangular tubes

Models

Available Models (3)

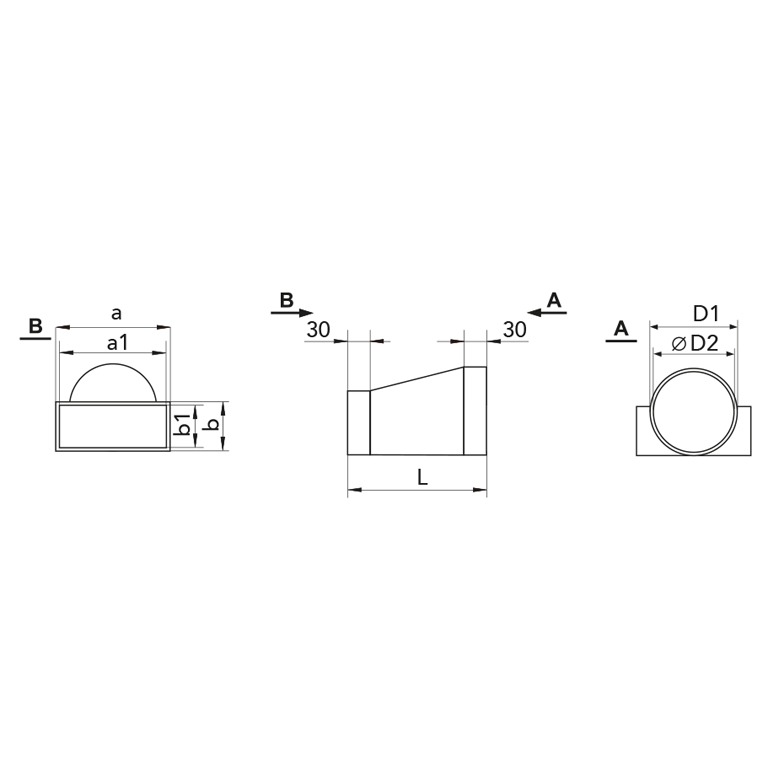

11161376

ROUND TO SQUARE REDUCER “RTQ” 100

A [mm]	124
A1 [mm]	122
B [mm]	64
B1 [mm]	60
D1 [mm]	103
D2 [mm]	100
L [mm]	137

11161376B

ROUND TO SQUARE REDUCER “RTQ” 125

A [mm]	208
A1 [mm]	204
B [mm]	64
B1 [mm]	60
D1 [mm]	128
D2 [mm]	125
L [mm]	140

PWC500084

ROUND TO SQUARE REDUCER “RTQ” 150

A [mm]	224
A1 [mm]	220
B [mm]	94
B1 [mm]	90
D1 [mm]	150
D2 [mm]	146
L [mm]	165
