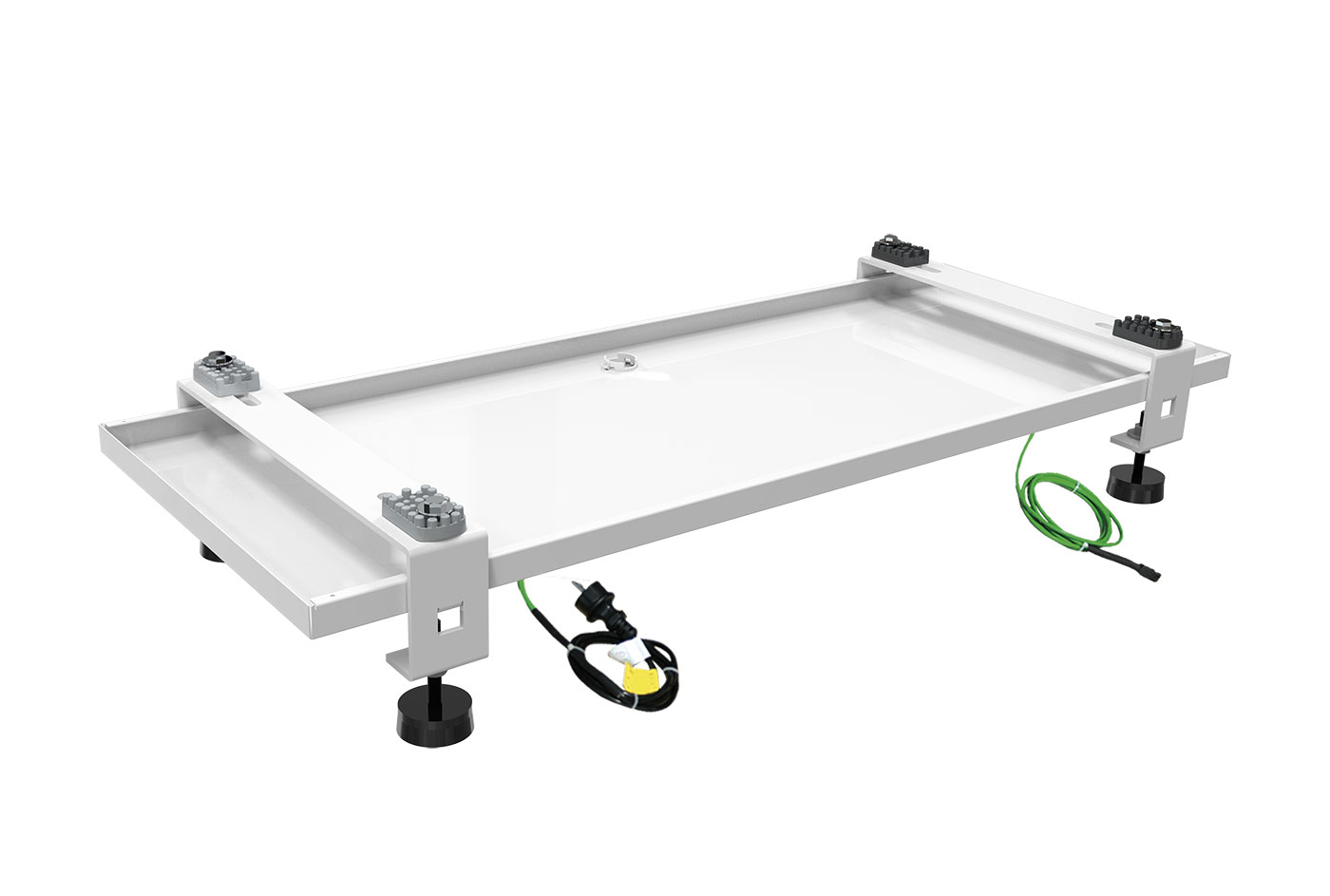

SBP Floor mount with vibration-dampers for SBP basin with anti-freeze heating cable

Smart Clima
Air conditioning

Available in a single pack including: heating basin, floor supports, locking screws, condensate drain pipe, sliding vibration dampers and adjustable vibration-damping support feet.

TECHNICAL SPECIFICATIONS:

• Made of galvanized metal sheet
• External polyester painting
• Cable length for 3 m condensate drain pipe
• Includes 15 W/m heating cable, 6 m + 3 m (9 m total)
• Power supply voltage 230 V
• Built-in thermostat: switch-on at 3°C and switch-off at 12°C
• “NO-SHOCK” sliding vibration dampers supplied
• Includes adjustable floor anti-vibration feet
• Condensate drain pipette included

Models

Available Models (5)

SCD500306

FLOOR MOUNT WITH TRAY SBP 980x410 WITH HEATING CABLE

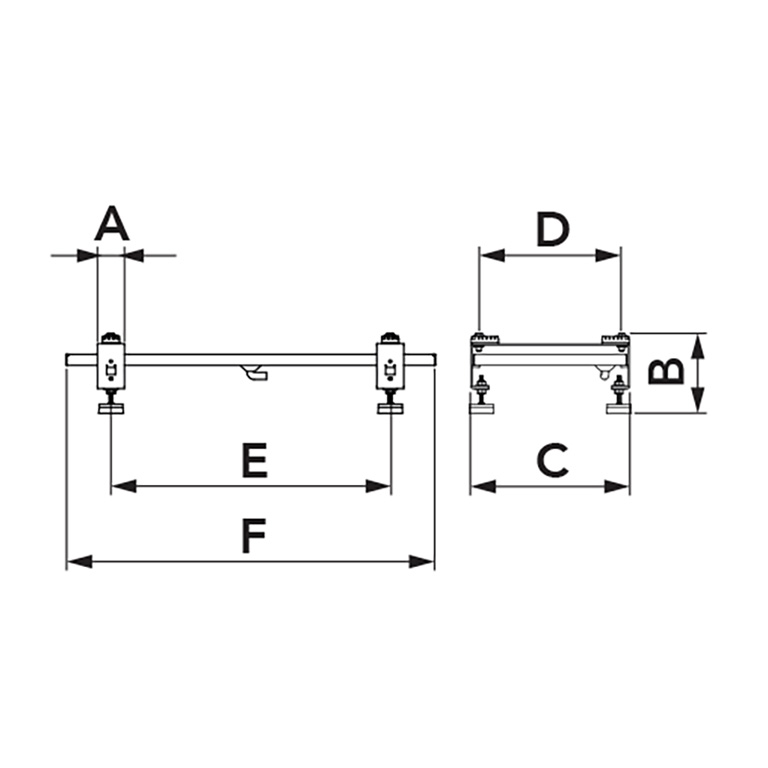

A [mm]	60
B [mm]	130 ÷ 170
C [mm]	390
D [mm]	230 ÷ 360
E [mm]	400 ÷ 920
F [mm]	980
LOAD CAPACITY [kg]	150

SCD500307

FLOOR MOUNT WITH TRAY SBP 1100x570 WITH HEATING CABLE

A [mm]	60
B [mm]	130 ÷ 170
C [mm]	552
D [mm]	400 ÷ 520
E [mm]	400 ÷ 1040
F [mm]	1100
LOAD CAPACITY [kg]	150

SCD500313

FLOOR MOUNT WITH TRAY SBP 1250x390 WITH HEATING CABLE

A [mm]	60
B [mm]	130 ÷ 170
C [mm]	390
D [mm]	230 ÷ 360
E [mm]	400 ÷ 1190
F [mm]	1250
LOAD CAPACITY [kg]	170

SCD500353

FLOOR MOUNT WITH TRAY SBP 1300x570 WITH HEATING CABLE

A [mm]	60
B [mm]	130 ÷ 170
C [mm]	550
D [mm]	400 ÷ 520
E [mm]	400 ÷ 1240
F [mm]	1300
LOAD CAPACITY [kg]	170

SCD500318

FLOOR MOUNT WITH TRAY SBP 1400x570 WITH HEATING CABLE

A [mm]	60
B [mm]	130 ÷ 170
C [mm]	550
D [mm]	400 ÷ 520
E [mm]	400 ÷ 1340
F [mm]	1400
LOAD CAPACITY [kg]	180
