SBR EXTREME 100-8 Vulcanised rubber vibration-resistant floor base
Smart Clima- Air conditioning
- Heat pumps

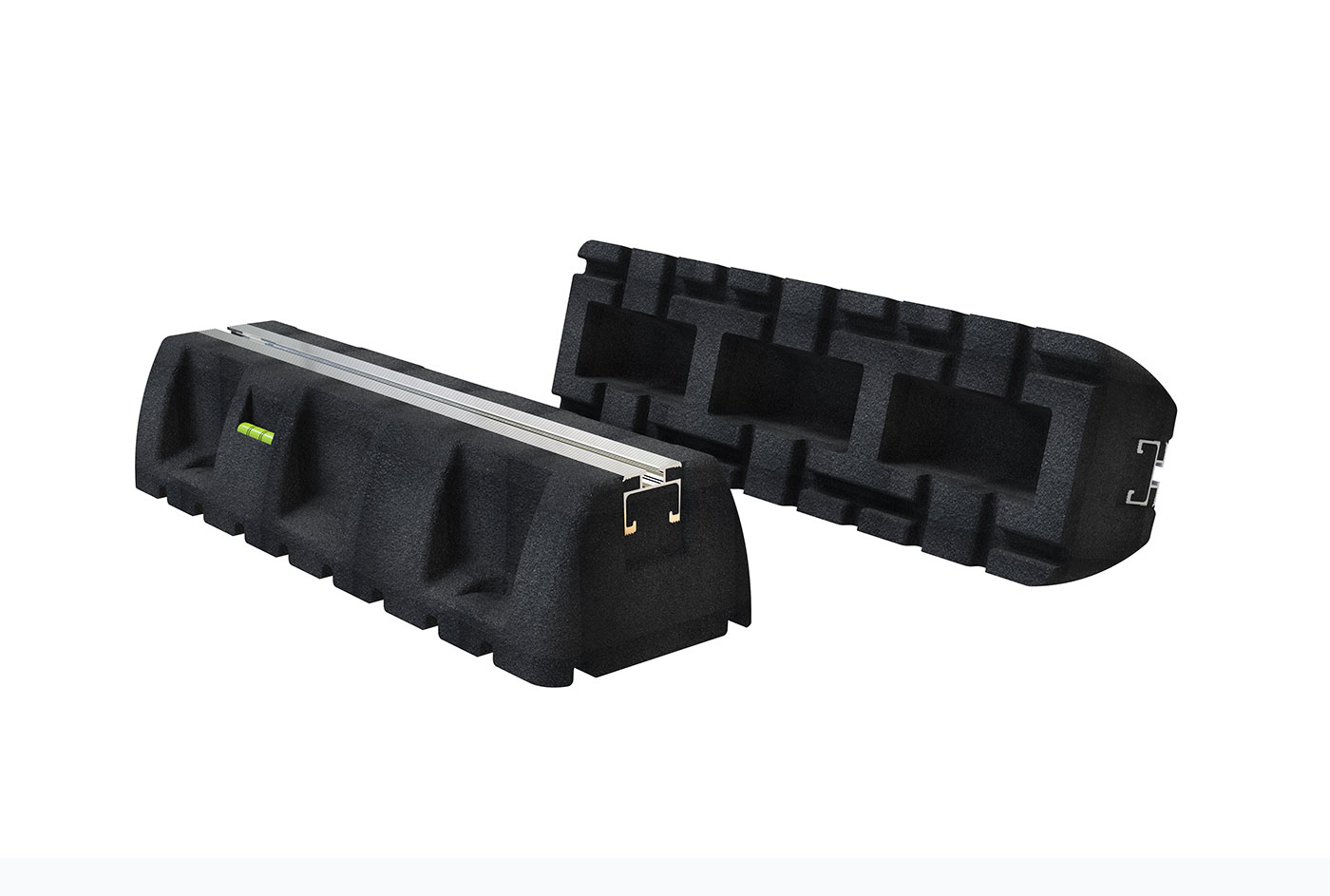

The EXTREME vibration-damping floor base is made with a characteristic vulcanised recycled rubber granule structure and is equipped with an aluminium profile useful for attaching the outdoor condensing unit to the support itself.
The floor base can be used to support external condensing units, VRV-VRF, base boilers, electrical ducts or pipes.
The floor base is equipped with a built-in levelling device for correct positioning and can be fixed to the ground.
The machines are fixed to the base with nut and M8 screw or through the sliders with M8 screw supplied.
Models
Available Models (5)
11105060
SBR “EXTREME-8” 250 - FOOT MOUNT WITH ALU PROFILE, FIXING BOLT, WASHER AND NUT M8

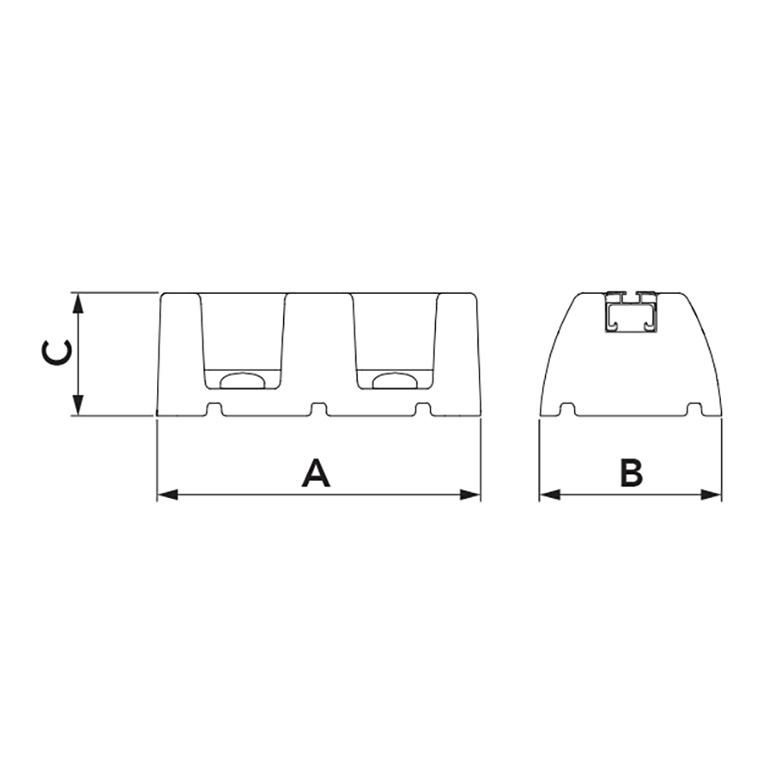

| A [mm] | 250 |
|---|---|
| B [mm] | 140 |
| C [mm] | 95 |
| LOAD CAPACITY [kg] | 200 |
Tailor-made solutions
Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
