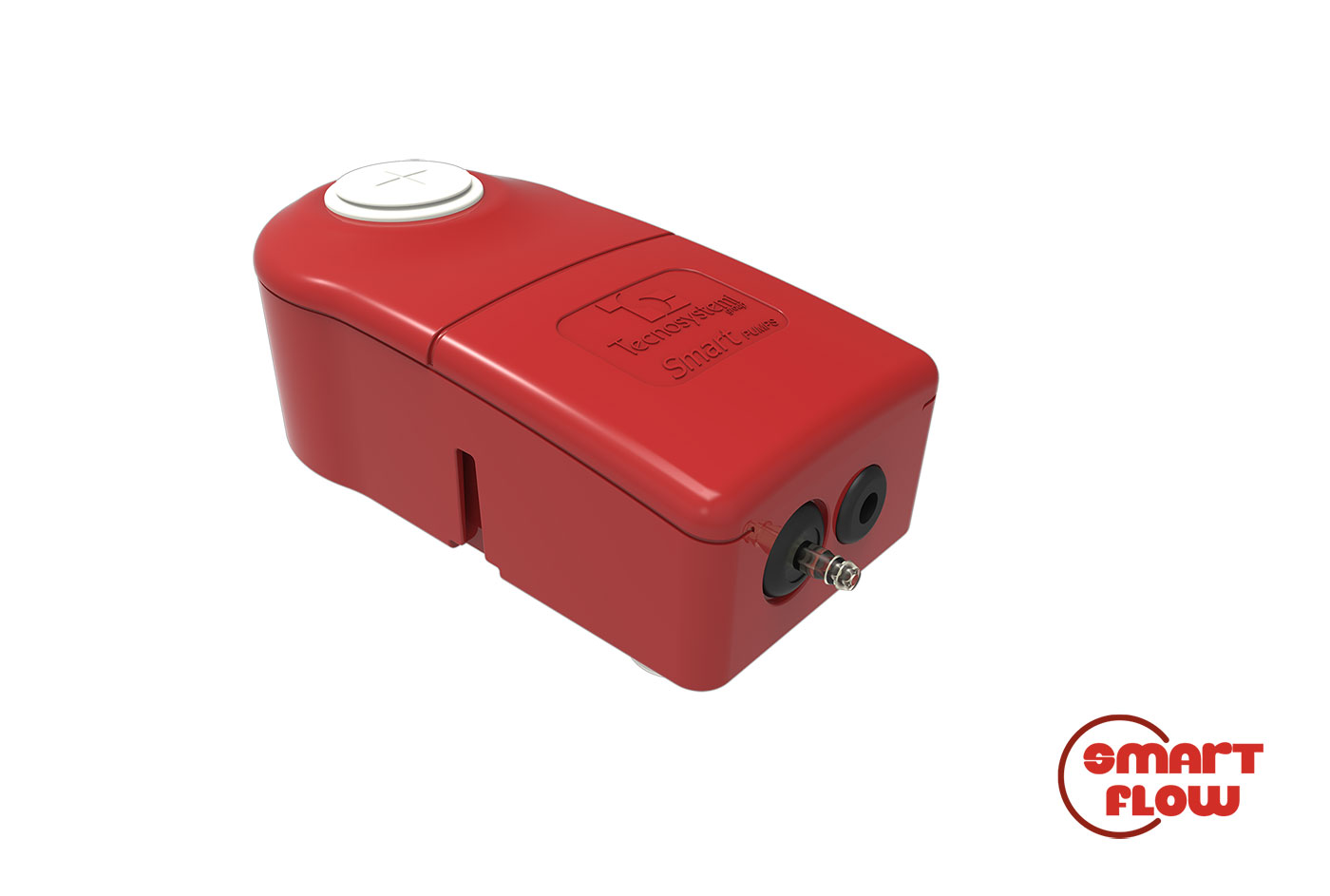

SMART FLOW - SF 20 - 30 - 40 lt Condensate collection pump

Smart Clima
Air conditioning

The condensate collection pump can be used in applications such as:
– column air conditioners;
– refrigerated display cases;
– refrigerated cabinets;
– refrigerated counters;
– evaporators;
– ceiling mounted air conditioners.
An anti-vibration and flexible rubber for wall mounting the pump can be purchased separately.

TECHNICAL SPECIFICATIONS:

• Power supply 230V – 50Hz
• Alarm contact C-NO 6A
• Protection rating IP X7
• Pump dimensions 143 x 76 x 62.3 mm
• Connection hose for SMART FLOW-SF pump 20 Ø 4 x 6 mm
• Connection hose for SMART FLOW-SF pump 30-40 Ø 6 x 9.25 mm
• Operating temperature: +5°C / +45°C
• Operation type: intermittent
• Thermal protection: 90° (automatic restart)
• Condensate temperature: max 35°C

Models
