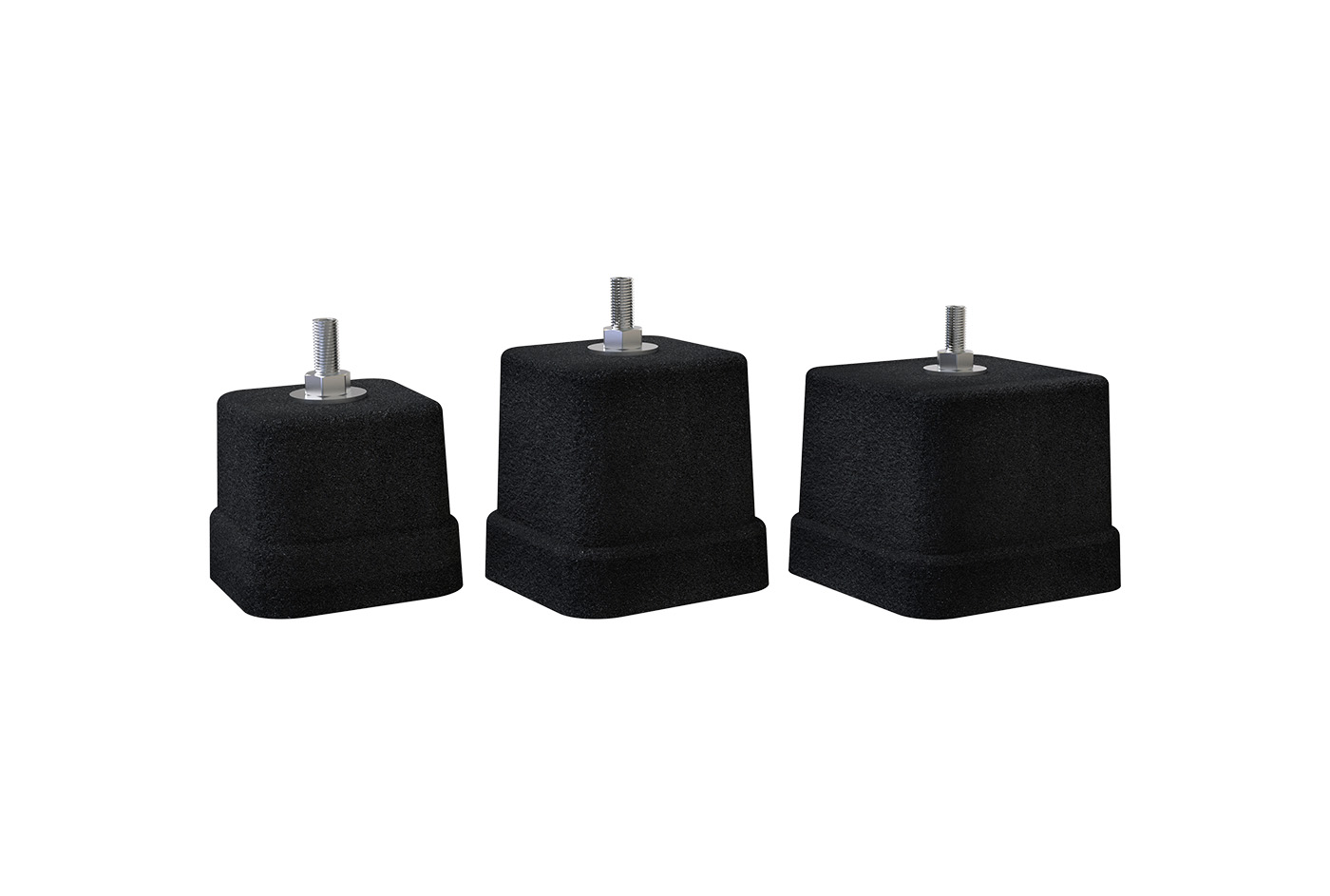

SPK-M Vulcanised rubber SBR floor support with threaded rod

Smart Clima
Air conditioning

The SPK-M anti-vibration floor base is made with a characteristic granule structure in vulcanised recycled rubber.
Equipped with an M8 threaded bar (to be assembled) for securing the outdoor units through the use of M8 frog bolt (supplied).
The floor base can be used to support external condensing units, VRV-VRF, base boilers, electrical ducts or pipes.

TECHNICAL SPECIFICATIONS:

• Made of SBR vulcanized rubber, derived from 100% recycled granules
• M8 threaded rod included
• M8 bolt washer included

Models

Available Models (3)

SCD500469

DAMPER SPK-M 100 – 70x70x60 (PACK 4 PZ)

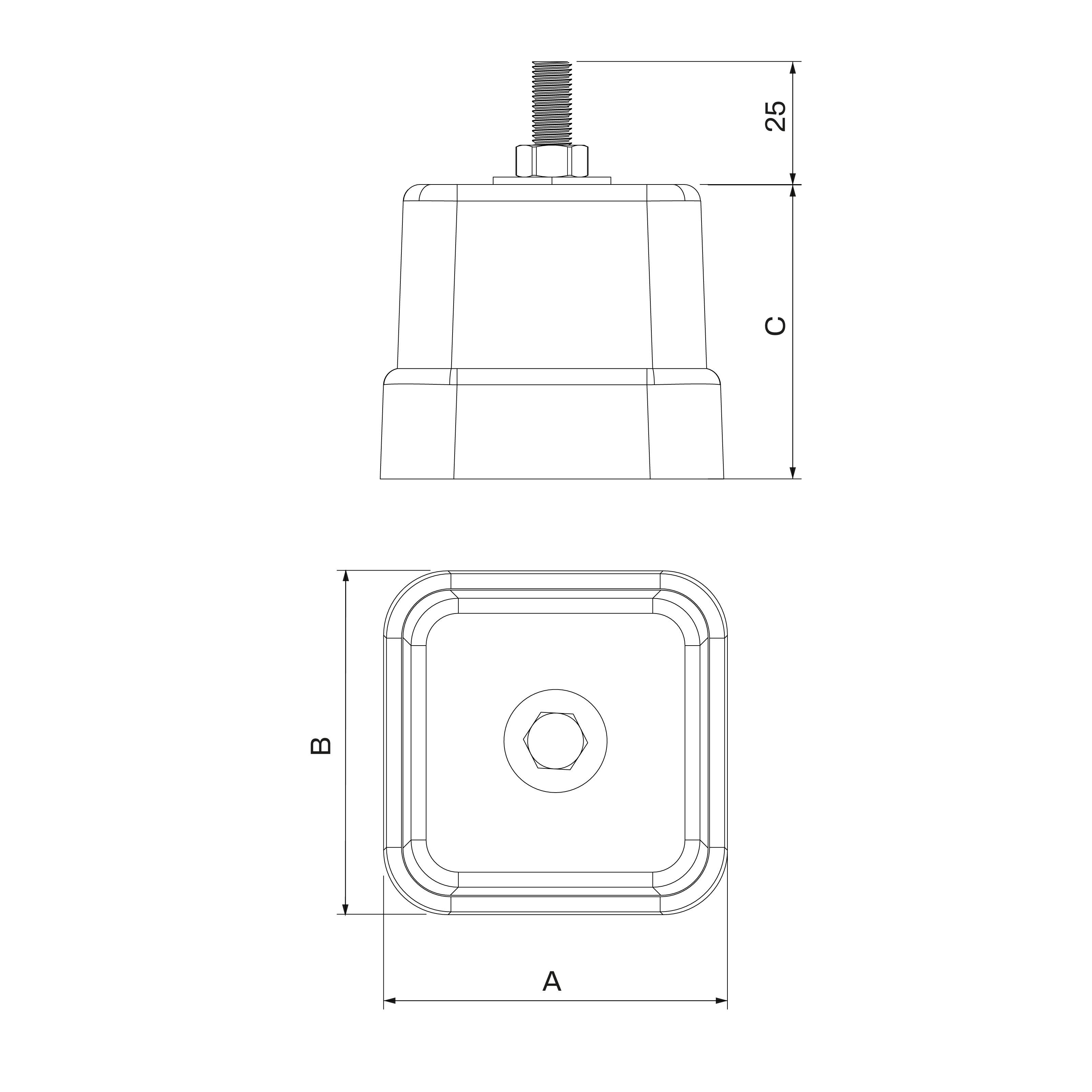

A [mm]	70
B [mm]	70
C [mm]	60

SCD500470

DAMPER SPK-M 100 – 70x70x60 (8 PACK / 4 PCS EACH BOX)

A [mm]	80
B [mm]	80
C [mm]	80

SCD500471

DAMPER SPK-M 150 – 80x80x80 (8 PACK / 4 PCS EACH BOX)

A [mm]	100
B [mm]	100
C [mm]	80
