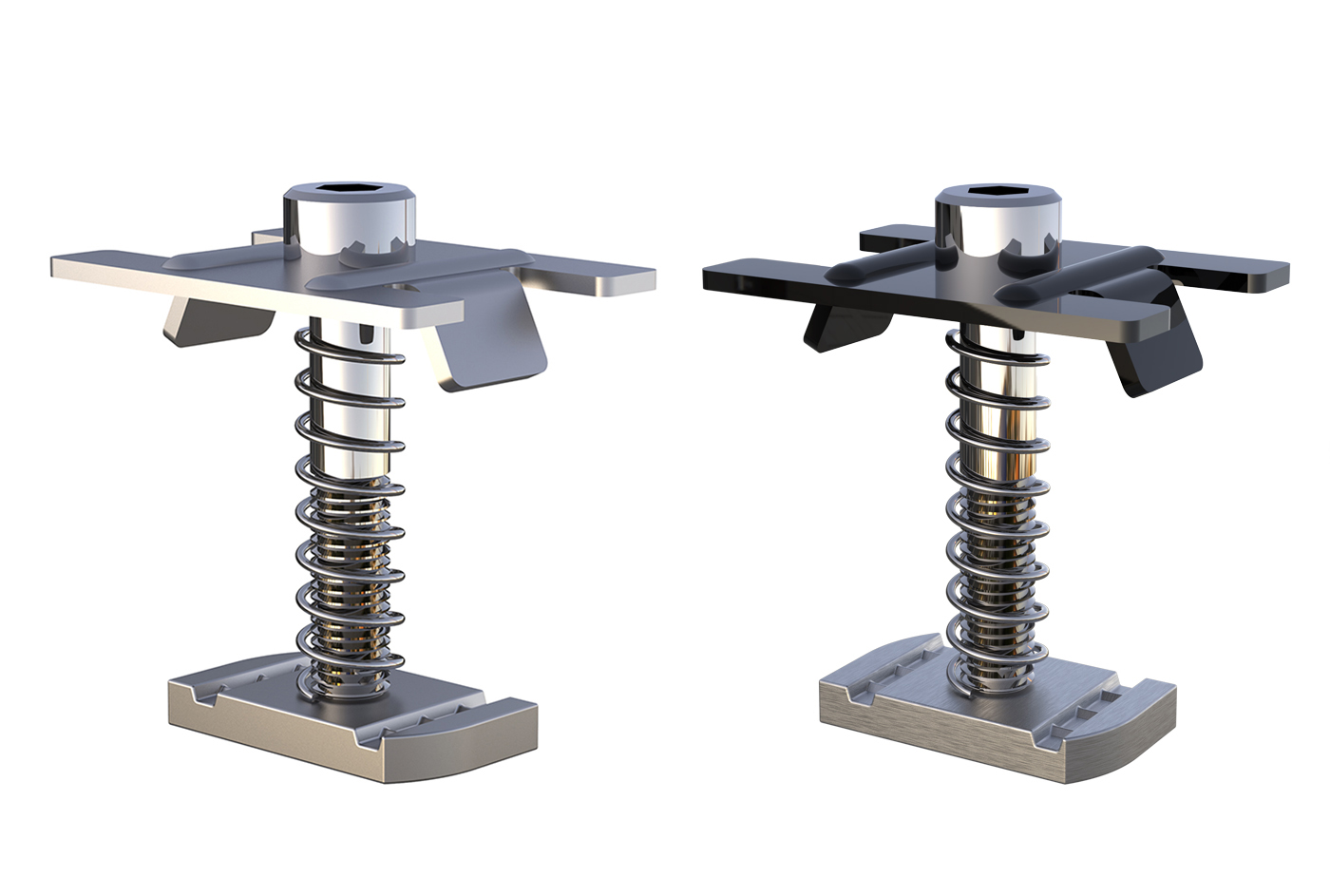

SSC50 Universal pre-assembled central clamp in stainless steel

Fv Power

TECHNICAL SPECIFICATIONS:

• Material: stainless steel
• Clamp length: 50 mm
• For panels height: 29 ÷ 40 mm
• Slider material: steel with geomet treatment
• M8 stainless steel screw
• Refer to the technical datasheet for torque specifications

Models

Available Models (4)

FVD200020

SSC50 UNIVERSAL PRE-ASSEMBLED CENTRAL CLAMP IN STEEL

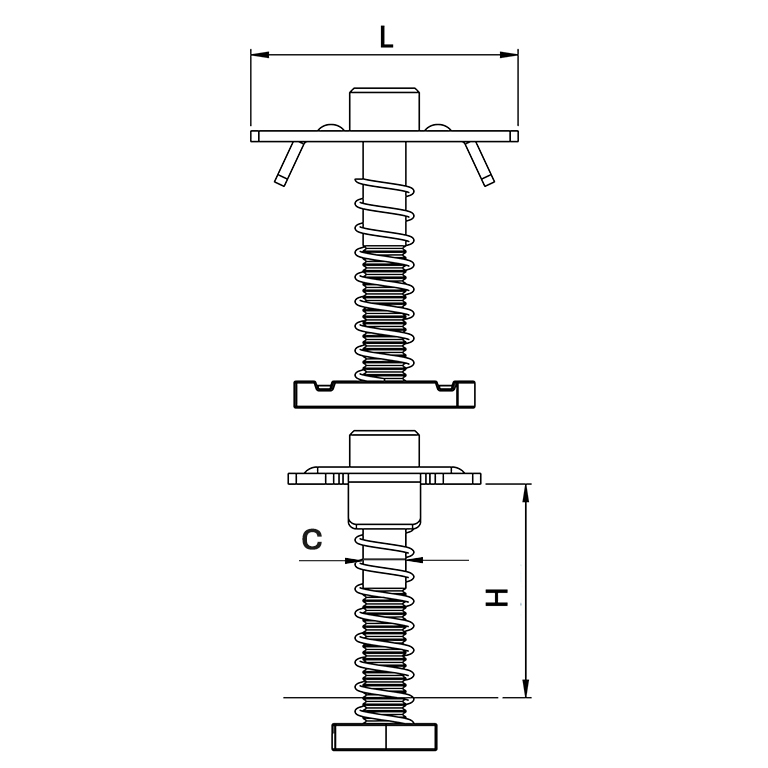

L [mm]	50
H [mm]	29 ÷ 40
C [mm]	14

FVD200020BOX

SSC50 UNIVERSAL PRE-ASSEMBLED CENTRAL CLAMP IN STEEL - BOX of 50 pcs

L [mm]	50
H [mm]	29 ÷ 40
C [mm]	14

FVD200031

UNIVERSAL PRE-ASSEMBLED CENTRAL CLAMP "SSC50" - BLACK

L [mm]	50
H [mm]	29 ÷ 40
C [mm]	14

FVD200031BOX

UNIVERSAL PRE-ASSEMBLED CENTRAL CLAMP "SSC50" - BLACK - BOX 50 pcs

L [mm]	50
H [mm]	29 ÷ 40
C [mm]	14
