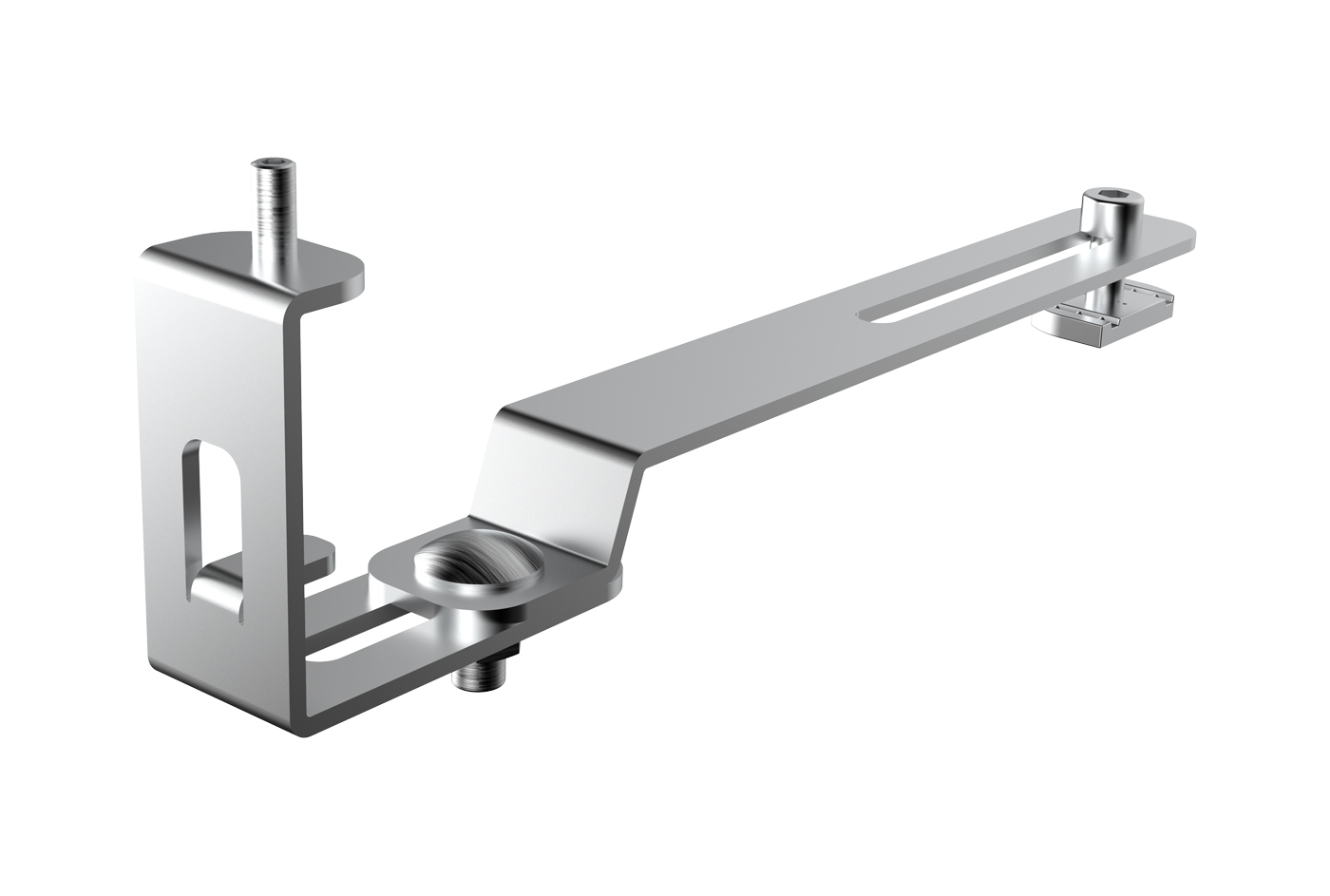

SSCB Support bracket central photovoltaic panel

Fv Power

The central support bracket is an accessory designed to support large photovoltaic panels and avoid bending in their central part.
The slots on the brackets facilitate installation and adjustment according to the type of panel used.
The brackets are complete with pre-assembled screws

TECHNICAL SPECIFICATIONS:

• Material: AISI 304
• Thickness: 3 mm
• Includes all screws
• Clamping torque <8Nm

Models

Available Models (6)

FVD200033

PAIR BRACKETS FOR CENTRAL SUPPORT PHOTOVOLTAIC PANNEL "SSCB-1" (2 pcs)

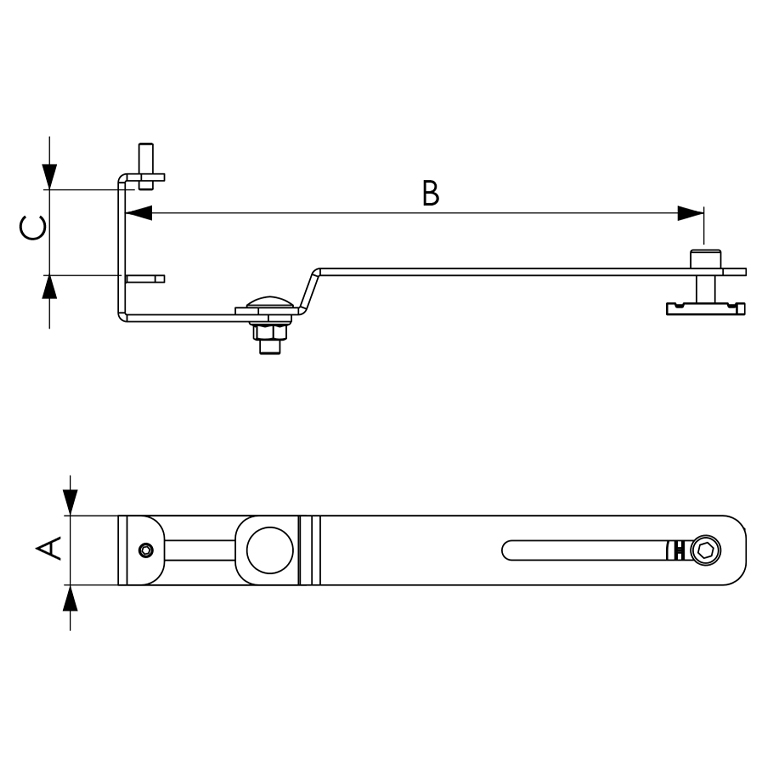

A [mm]	30
B [mm]	205 ÷ 250
C [mm]	25 ÷40
Clampable panel width [mm]	1115 ÷1245

FVD200034

PAIR BRACKETS FOR CENTRAL SUPPORT PHOTOVOLTAIC PANNEL "SSCB-2" (2 pcs)

A [mm]	30
B [mm]	205 ÷ 215
C [mm]	25 ÷40
Clampable panel width [mm]	1038 ÷1120

FVD200040

PAIR OF CENTRAL SUPPORT BRACKETS PHOTOVOLTAIC PANEL SSCB-3 (2 PIECES)

A [mm]	30
B [mm]	175 ÷ 315
C [mm]	25 ÷ 40
Clampable panel width [mm]	1140 ÷ 1350

FVD200033BOX

BRACKETS FOR CENTRAL SUPPORT PHOTOVOLTAIC PANNEL "SSCB-1" - BOX of 10 PAIRS

FVD200034BOX

BRACKETS FOR CENTRAL SUPPORT PHOTOVOLTAIC PANNEL "SSCB-2" - BOX of 10 PAIRS
