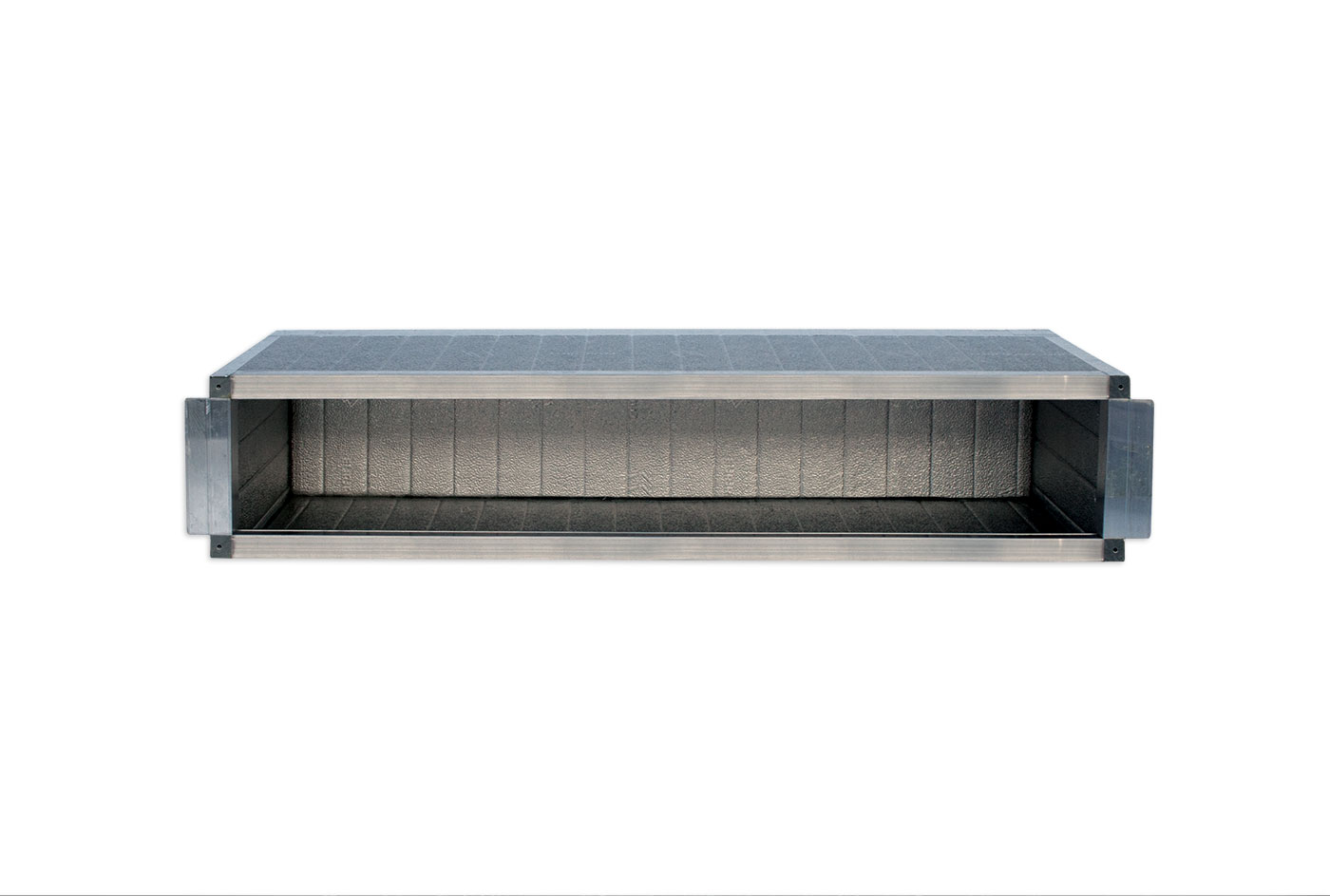

Immagine IMG_PWD400111.jpg

View documentation

Tailor-made delivery / return plenum in aluminised PAL for ducted

Project Wind
Air diffusion

TECHNICAL SPECIFICATIONS:

• Made of high quality 80 µ aluminium foil, embossed and lacquered, insulated with stiff expanded polyisocyanurate (PIR) foam
• Overall thickness 20 mm
• Waterproof, highly heat-insulating
• Includes fastening flange
• Reaction to fire class: B-s3,d0

Models

Available Models (4)

11161605

PLÉNUM BOX FOR DUCTED SYSTEMS MOD. 1

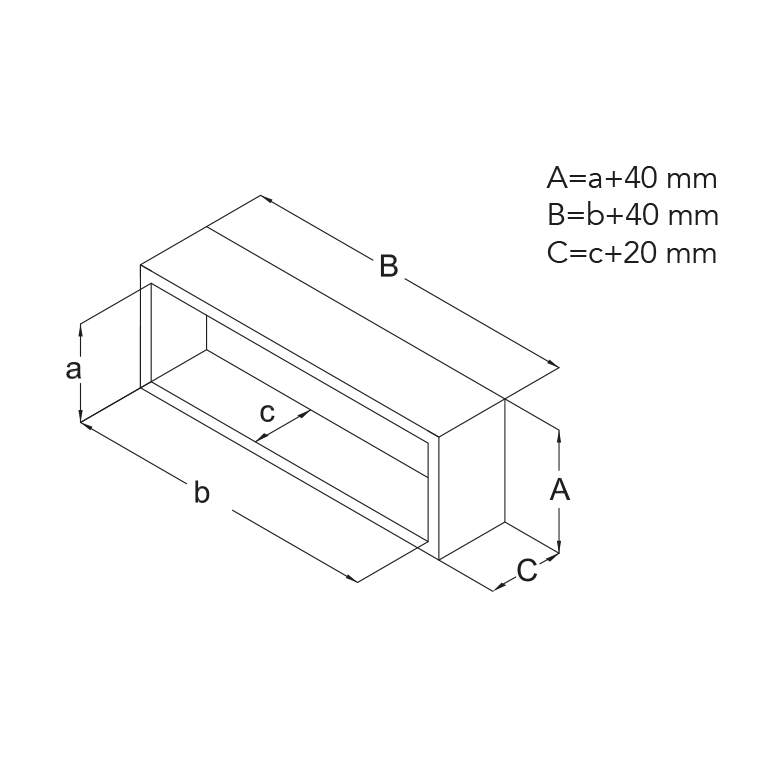

MODEL	mod. 1
INTERNAL HEIGHT A [mm]	on request up to 300
INTERNAL WIDTH B [mm]	on request up to 1000
INTERNAL DEPTH c [mm]	280 fixed

11161606

PLÉNUM BOX FOR DUCTED SYSTEMS MOD. 2

MODEL	mod. 2
INTERNAL HEIGHT A [mm]	on request up to 400
INTERNAL WIDTH B [mm]	on request up to 1200
INTERNAL DEPTH c [mm]	280 fixed

11161607

PLÉNUM BOX FOR DUCTED SYSTEMS MOD. 3

MODEL	mod. 3
INTERNAL HEIGHT A [mm]	on request up to 400
INTERNAL WIDTH B [mm]	on request up to 1500
INTERNAL DEPTH c [mm]	280 fixed

PWD400111

“PAL” CUSTOM-SIZED RETURN PLENUM BOX FOR DUCTED SYSTEMS MOD. 7

MODEL	mod. 4
INTERNAL HEIGHT A [mm]	on request up to 500
INTERNAL WIDTH B [mm]	on request up to 1700
INTERNAL DEPTH c [mm]	280 fixed
