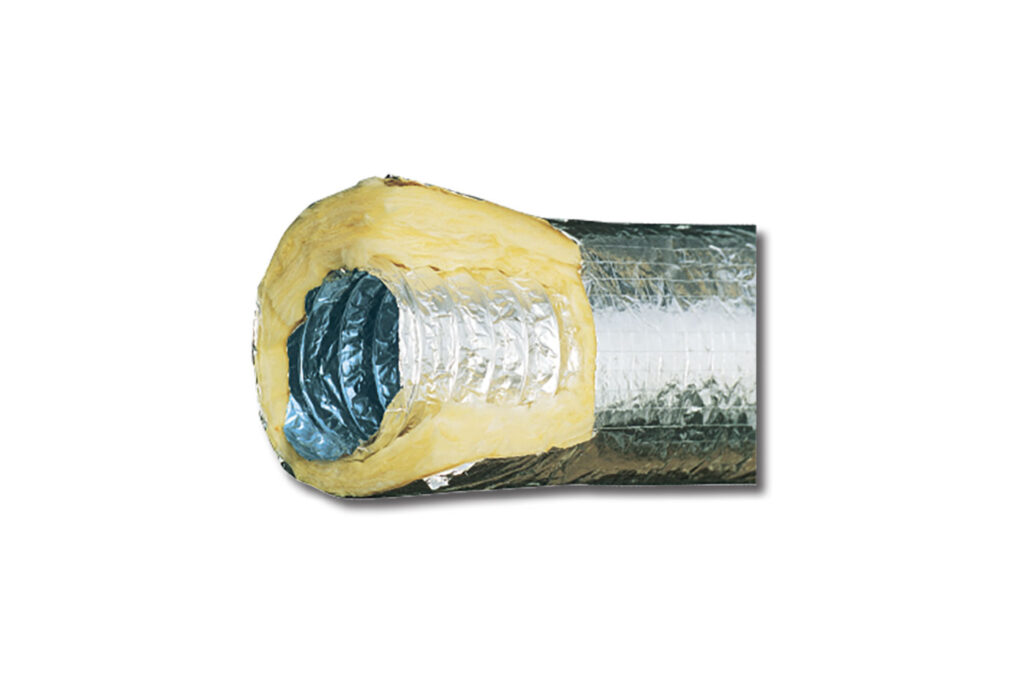

Thermal flexible ducted flexible hose - double-walled aluminium phonic with internal antibacterial treatment
Project Wind- Air diffusion
It is a duct consisting of a perforated internal pipe made of laminated aluminium with a polyester sheet, all reinforced with spirally wound steel wire.
The thermal insulation is made of glass wool coated with an aluminium foil laminated with a polyester sheet.
Between the inner pipe and the insulation there is a polyester sheet as a moisture barrier.
Inside there is an antibacterial film.
Thanks to its exceptional flexibility, it is easy to install on circular and oval collars.
TECHNICAL SPECIFICATIONS:
• Operating temperature: -30°C to +140°C
• Length 10 m
• Antibacterial treatment on the inner surface
• Conforms to EN 13180
Models
Available Models (10)
11157085
FLEXIBLE THERMAL-PHONIC DUCTED PIPE IN DOUBLE WALL ARMORED ALUMINIUM WITH ANTIBACTERIAL TREATMENT Ø85mm L10m
| INTERNAL Ø [mm] | 85 |
|---|
Tailor-made solutions
Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
