Thermal flexible ducted pipe - double-walled armoured aluminium phonic

Project Wind
Air diffusion

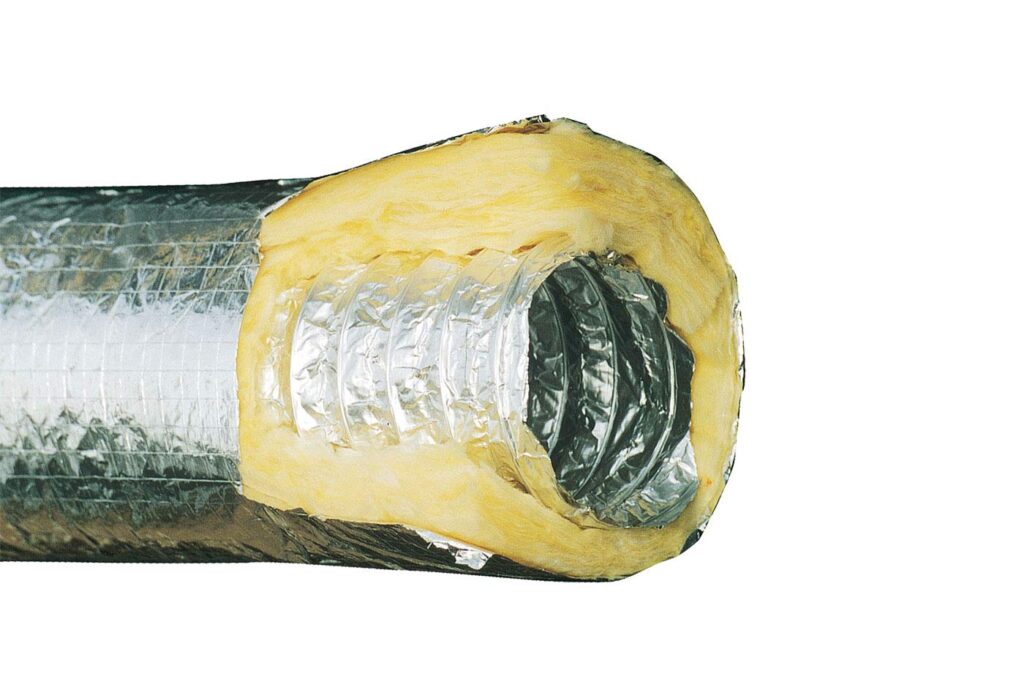

It is a duct consisting of a perforated internal pipe made of laminated aluminium with a polyester sheet, all reinforced with spirally wound steel wire.
The thermal insulation is made of glass wool coated with an aluminium foil laminated with a polyester sheet.
Between the inner pipe and the insulation there is a polyester sheet as a moisture barrier.
Thanks to its exceptional flexibility, it is easy to install on circular and oval collars.

TECHNICAL SPECIFICATIONS:

• Operating temperature -30°C to +140°C
• Length 10 m
• Recommended minimum bending radius: 1D
• Insulation material: glass fibre thickness 25 mm density 16 kg/m³

Models

Available Models (11)

11152080

FLEXIBLE THERMAL-PHONIC DUCTED PIPE IN DOUBLE WALL ARMORED ALUMINUM Ø85mm L10m

INTERNAL Ø [mm]	85
LENGTH [m]	10

11152102

FLEXIBLE THERMAL-PHONIC DUCTED PIPE IN DOUBLE WALL ARMORED ALUMINUM Ø102mm L10m

INTERNAL Ø [mm]	102
LENGTH [m]	10

11152127

FLEXIBLE THERMAL-PHONIC DUCTED PIPE IN DOUBLE WALL ARMORED ALUMINUM Ø127mm L10m

INTERNAL Ø [mm]	127
LENGTH [m]	10

11152140

FLEXIBLE THERMAL-PHONIC DUCTED PIPE IN DOUBLE WALL ARMORED ALUMINUM Ø140mm L10m

INTERNAL Ø [mm]	140
LENGTH [m]	10

11152152

FLEXIBLE THERMAL-PHONIC DUCTED PIPE IN DOUBLE WALL ARMORED ALUMINUM Ø152mm L10m

INTERNAL Ø [mm]	152
LENGTH [m]	10

PWC400016

FLEXIBLE THERMAL-PHONIC DUCTED PIPE IN DOUBLE WALL ARMORED ALUMINUM Ø165mm L10m

INTERNAL Ø [mm]	165
LENGTH [m]	10

11152180

FLEXIBLE THERMAL-PHONIC DUCTED PIPE IN DOUBLE WALL ARMORED ALUMINUM Ø180mm L10m

INTERNAL Ø [mm]	180
LENGTH [m]	10

11152204

FLEXIBLE THERMAL-PHONIC DUCTED PIPE IN DOUBLE WALL ARMORED ALUMINUM Ø203mm L10m

INTERNAL Ø [mm]	203
LENGTH [m]	10

11152254

FLEXIBLE THERMAL-PHONIC DUCTED PIPE IN DOUBLE WALL ARMORED ALUMINUM Ø254mm L10m

INTERNAL Ø [mm]	254
LENGTH [m]	10

11152305

FLEXIBLE THERMAL-PHONIC DUCTED PIPE IN DOUBLE WALL ARMORED ALUMINUM Ø305mm L10m

INTERNAL Ø [mm]	305
LENGTH [m]	10

11152356

FLEXIBLE THERMAL-PHONIC DUCTED PIPE IN DOUBLE WALL ARMORED ALUMINUM Ø356mm L10m

INTERNAL Ø [mm]	356
LENGTH [m]	10
