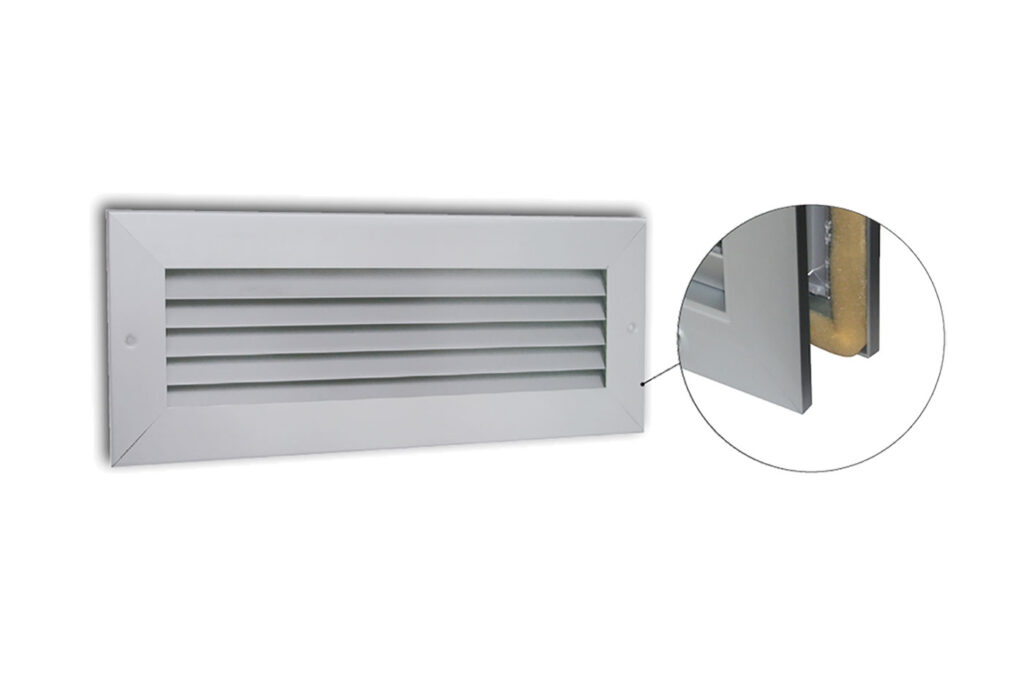

Immagine IMG_W11161565.jpg

View documentation

Transit grille in anodised aluminium

Project Wind
Air diffusion

Made of anodised aluminium, it is suitable for air return through doors, infill walls, plasterboards, etc.

Models

Available Models (3)

W11161565

ANODISED ALUMINIUM TRANSFER GRILLE 332x132

DIM. EXTERNAL FRAME [mm]	332 x 132
INSTALLATION HOLE SIZE [mm]	300 x 100
MIN/MAX DEPTH [mm]	30 / 47

W11161566

ANODISED ALUMINIUM TRANSFER GRILLE 532x232

DIM. EXTERNAL FRAME [mm]	532 x 232
INSTALLATION HOLE SIZE [mm]	500 x 200
MIN/MAX DEPTH [mm]	30 / 47

W11161567

ANODISED ALUMINIUM TRANSFER GRILLE 432x132

DIM. EXTERNAL FRAME [mm]	432 x 132
INSTALLATION HOLE SIZE [mm]	400 x 100
MIN/MAX DEPTH [mm]	30 / 47
