Patent
Immagine IMG_SCD200018.jpg
View documentation

Transparent dry anti-odor siphon with ball for condensate drain pipe

  • Smart Clima
  • Air conditioning

TECHNICAL SPECIFICATIONS:

• Body made of high-strength transparent PS (Crystal Polystyrene)
• Vertical installation
• Complete with sealing o-rings
• Protective grille at the intake
• Maximum condensate drain flow 0.5 l/min

Models

Available Models (1)

SCD200018

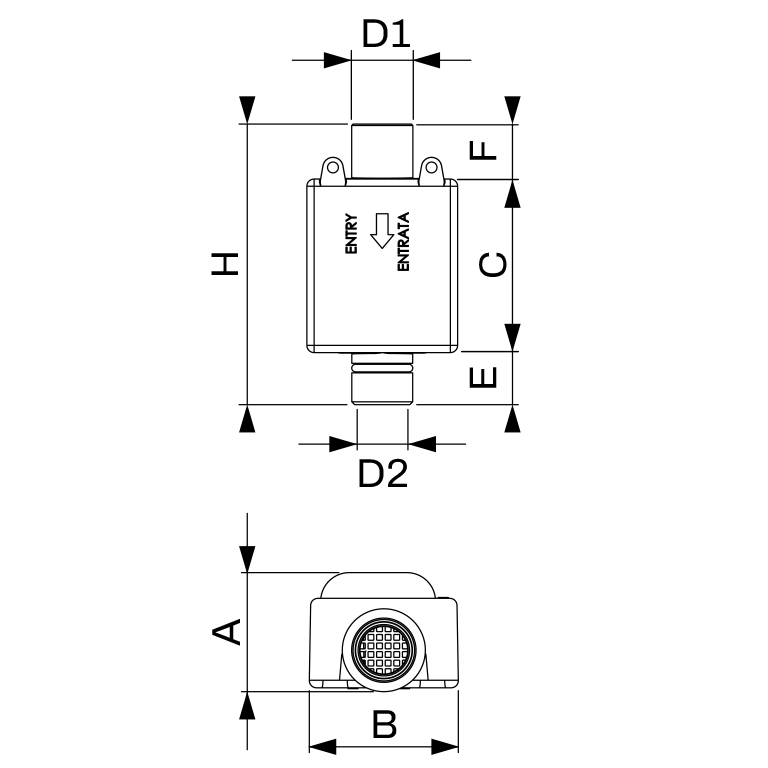

TRANSPARENT ANTI-ODOUR VERTICAL DRY SYPHON FOR RIGID CONDENSATE DRAIN PIPE

A [mm] 41
B [mm] 52
C [mm] 60
D1 [mm] 21
D2 [mm] 17
E [mm] 18
F [mm] 19
H [mm] 97

Tailor-made solutions

Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
